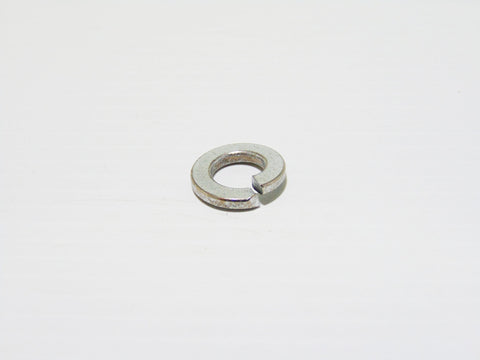

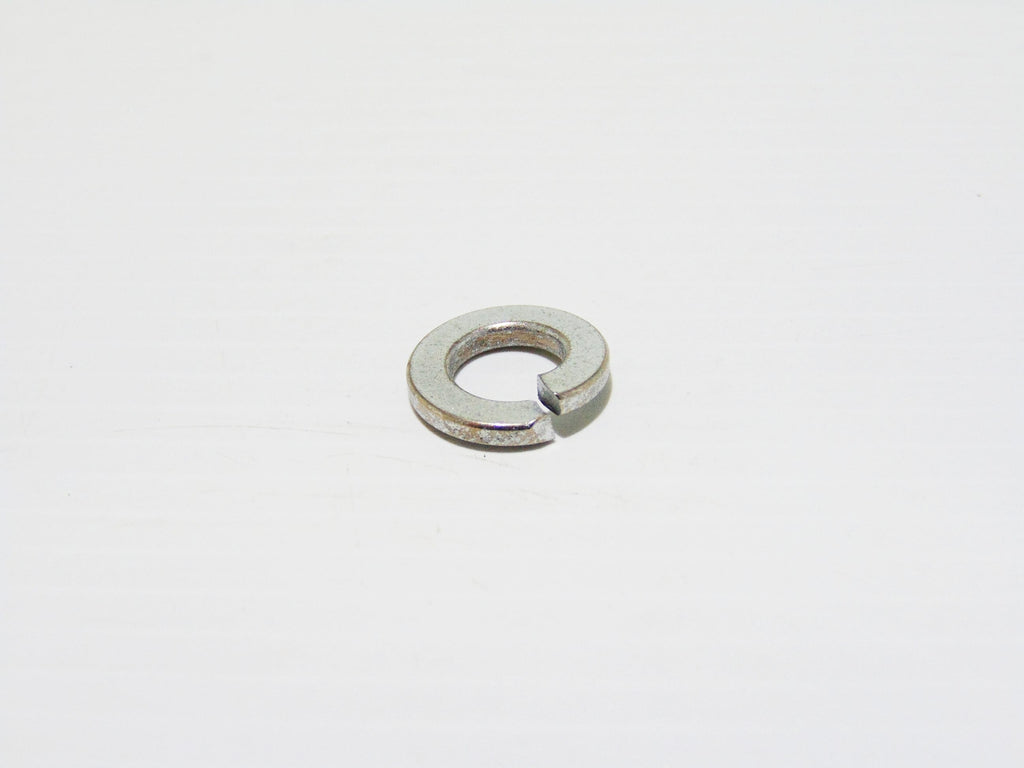

5/16" Lock Washer (QUR01271)

Overview

The 5/16" Lock Washer (QUR01271) is a genuine Labrie OEM part listed on the parts diagrams for Labrie Automizer and Automizer Pendulum Packer side loaders, the Labrie heavy-duty right-hand arm and Leach 2R-III rear loaders. It appears on 21 parts diagrams, including Mast Assembly, Grease, Remote and Side Door. Labrie's parts catalog lists it under Hardware. SECI is an authorized Labrie dealer serving New England from West Haven, CT and Walpole, MA.

Compatibility

Listed on these parts diagrams (item number and quantity per diagram):

Labrie Automizer side loader

• Side Door - 870530 (TTD Units) (Section 1, page 73): item 8, qty 4
• Side Door - 861239 (TTD Units) (Section 1, page 77): item 16, qty 4
• Side Door - 835313 (TTD Units) (Section 1, page 79): item 8, qty 4
• Side Door - 835316 (TTD Units) (Section 1, page 81): item 8, qty 4
• Side Door Latch & Deflector's - 805672 (Section 1, page 99): item 7, qty 4
• Ladder - Fold Down - TTD (Pendulum Packer) (Section 1, page 215): item 22, qty 6
• Crusher Hyd's - (100% Crusher, JIC) (Section 2, page 359): item 13, qty 2
• Packer Hyd's - TTD (No Regen - JIC, Pendulum Packer) (Section 2, page 397): item 18, qty 4
• Plus 1 more Labrie Automizer side loader diagram listed under Fits Vehicles

Labrie heavy-duty right-hand arm

• Mast Assembly - 162185 (Section 1, page 13): item 26, qty 12
• Arm Rail End Protector's (Section 1): item 7, qty 4
• In/Out Rail Hydraulics - JIC (All Heavy Duty Right Hand Arms) (Section 3): item 7, qty 14
• In/Out Rail Hydraulics - ORFS (All Heavy Duty Right Hand Arms) (Section 3): item 7, qty 14
• Limit Switches (BCB01170-04, BCB01175-04, BCB01180-04, BCB01182-04, BCB01185-04 & BCB01187-04) (Section 5): item 12, qty 2
• Limit Switches (BCB01171-04, BCB01176-04, BCB01178, BCB01186-04) (Section 5): item 12, qty 2
• Limit Switches (BCB01190-04 & BCBM2190-01) (Section 5): item 12, qty 2

Leach 2R-III rear loader

• Oil Reservoir - in Body (Section 4, page 165): item 24, qty 8PerFilter
• Sump Clean Out (Section 11, page 321): item 12, qty 8
• Sump Clean Out (Section 11, page 322): item 12, qty 8

Labrie Automizer Pendulum Packer side loader

• Grease, Remote - Pendulum (Packer & Crusher with Right Hand Arm) Section 1 R (Section 1, page 37): item 12, qty 4
• Grease, Remote - Pendulum (Packer & Crusher with Alley Hand Arm) (Section 1, page 39): item 12, qty 4

Parts Support

Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
