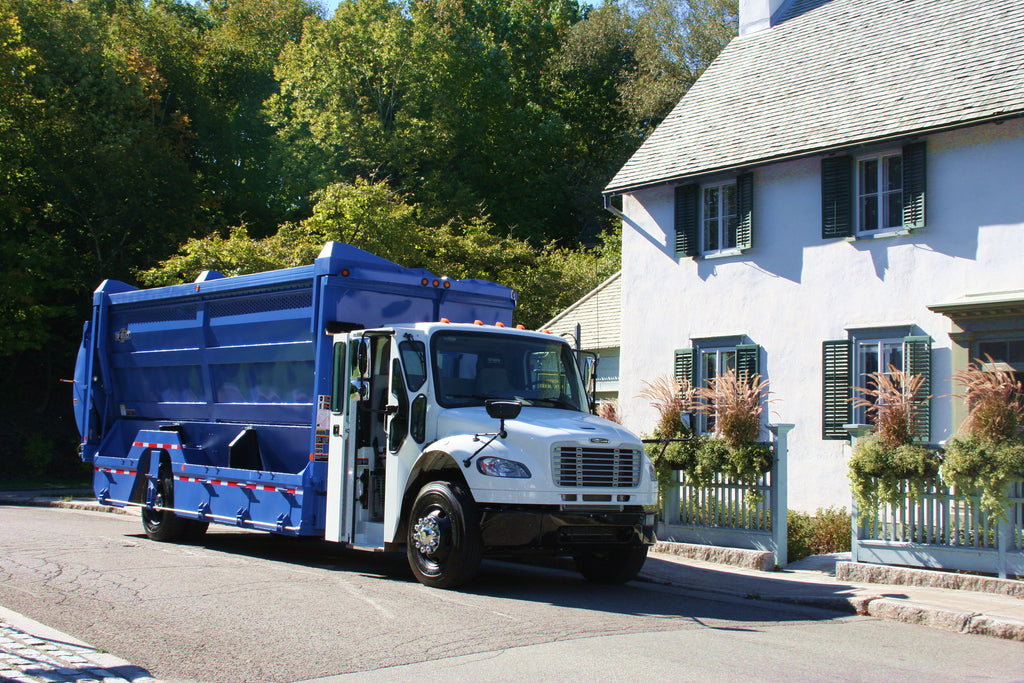

Labrie Top Select body in blue, front three quarter view
Labrie Top Select body in blue, front three quarter view
Labrie Top Select body in blue, close side view with the model badge

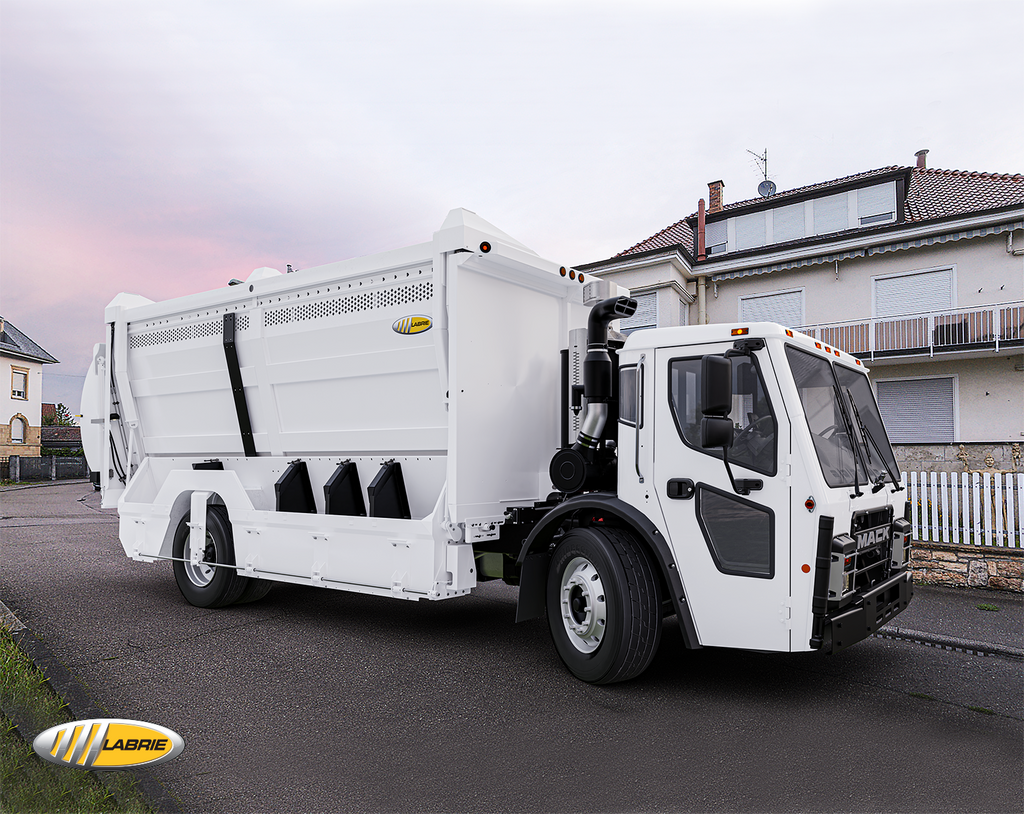

White Labrie Top Select body on a residential street, front three quarter view
Labrie

Labrie Top Select Recycling Body

description specs

Overview

The Labrie Top Select is a residential recycling body with 2 to 7 compartments, used in manual or semi-automated collection. Its loading bucket lifts 1,000 lbs, with a complete cycle of 15 to 17 sec at 700 rpm.

The loading height is 7" above frame.

Key Features

  • Over-the-top dumping system
  • Unloads by opening the adjoining walls one section at a time
  • Separators made of recycled plastic, adjustable at 6" (152 mm) intervals
  • Steel mesh along the top of the body shows material levels
  • Wind deflectors on both sides of the hopper
  • Loading bucket with dual hydraulic cylinders that have adjustable cushions
  • Hooks on the bucket's edge

Options & Configurations

  • Maximizer, with 40,000 lbs forward force on recyclables and 18,000 lbs rearward force on paper; it is not intended for compaction
  • Auto-lock cart attachments on the loading buckets
  • Stand-up drive positions available on one or both sides of the truck

Applications

  • Residential recycling collection, manual or semi-automated

Related Parts & Accessories

Body

  • Compartments: 2 to 7
  • Separator adjustment: 6" (152 mm) intervals
  • Tailgate sizes: 1 yd³ to 4 yd³, based on body capacity
  • Body floor: 3/16" 50W 50,000 psi
  • Body sides: 12ga A1011 CS
  • Tailgate: 12ga A1011 CS
  • Tailgate open: 18 sec @ 700 rpm
  • Tailgate close (with Safety Flow limiter): 20 sec @ 700 rpm
  • Body up (depending on body size): 30 to 45 sec @ 1500 rpm
  • Body down (depending on body size): 25 to 100 sec @ 700 rpm

Loading Bucket

  • Lifting capacity: 1,000 lbs
  • Loading height above frame: 7"
  • Bucket complete cycle time: 15 to 17 sec @ 700 rpm

Hydraulics

  • Pump: Gear
  • Pump capacity: 16.5 gpm @ 700 rpm
  • Max. operating pressure: 2,000 psi
  • Oil reservoir: 35 gal

Body Dimensions (Top Select 1000)

  • A. Overall length, tailgate closed, 34 yd³ (31+3) body: 281 in.
  • A. Overall length, tailgate closed, 42 yd³ (38+4) body: 288 in.
  • A. Overall length, tailgate closed, 45 yd³ (44+1) body: 298 in.
  • A. Overall length, tailgate closed, 48 yd³ (44+4) body: 324 in.
  • Overall width, all four table bodies: 102 in.
  • B. Overall height above frame, tailgate closed, 34 yd³ (31+3) body: 90 in.
  • B. Overall height above frame, tailgate closed, 42 yd³ (38+4), 45 yd³ (44+1) and 48 yd³ (44+4) bodies: 102 in.

Options

  • Maximizer: forward force on recyclables: 40,000 lbs
  • Maximizer: rearward force on paper: 18,000 lbs
  • Maximizer: not intended for compaction
  • Maximizer complete cycle: 28 to 35 sec @ 700 rpm
  • Auto-lock cart attachments on loading buckets
