T50
T50
Palfinger

T50

description specs

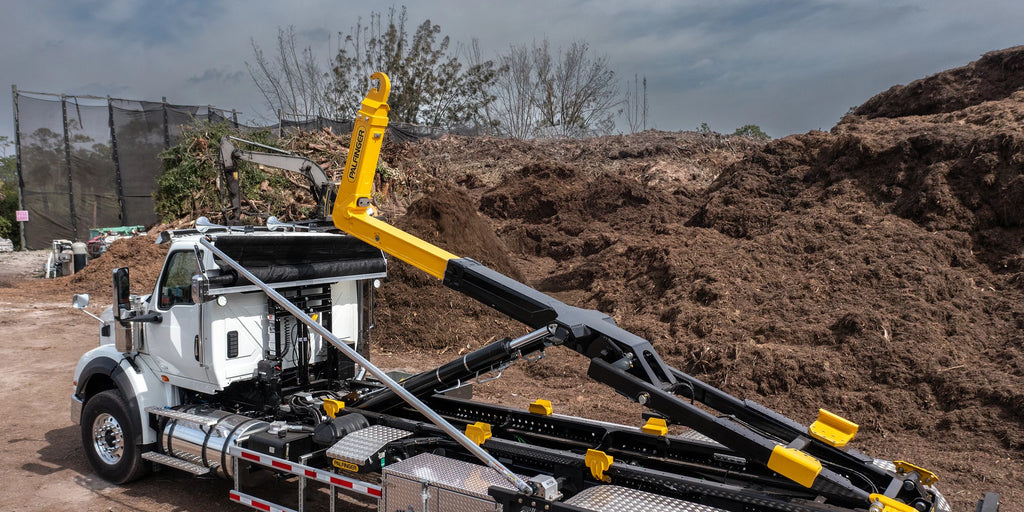

The Palfinger T50 Hooklift is engineered for the most demanding applications, offering a 50,000 lb lift capacity and a telescopic jib that accommodates body lengths from 16 to 22 feet. Its dual pivot design provides enhanced stability, while the 50° dump angle ensures efficient material unloading. Built with A514 (T-1) high-strength steel, the T50 combines durability with advanced hydraulic technology, making it a reliable choice for heavy-duty tasks.

T Model:

  • Lift / Dump Capacity: 50,000 lbs
  • CA Range: 185-195"
  • Minimum GVWR: 64,000 lbs
  • Hooklift Length: 237"
  • Body Length Range: 16-22'
  • Optimum Body Lengths: 20-22'
  • Jib Height: 54" & 61.75"
  • Jib Action: Telescopic
  • Max Dump Angle: 48 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 4,500 PSI
  • Pump Type: Piston - Direct mount
  • Fitting Hoses: JIC/SAE
