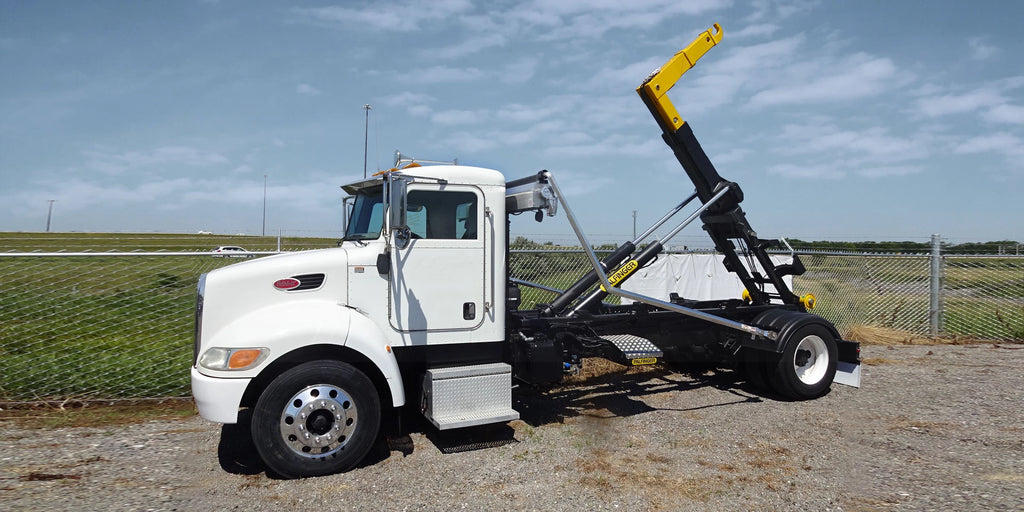

The Palfinger T29 Hooklift is engineered for heavy-duty operations with a 29,000 lb lift capacity. It features a telescopic jib that accommodates body lengths from 14 to 18 feet, making it versatile for a variety of tasks. The T29 offers a maximum dump angle of 50° and a dual-pivot design for enhanced stability and operational efficiency. Constructed with durable A514 (T-1) steel, the T29 ensures long-lasting performance in demanding environments.

ST Model:

  • Lift / Dump Capacity: 29,000 lbs
  • CA Range: 120-130"
  • Optimum CA: 130"
  • Minimum GVWR: 33,000 lbs
  • Hooklift Length: 162"
  • Body Length Range: 11-14'
  • Optimum Body Lengths: 12-14'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 50 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 3,625 PSI
  • Pump Type: Piston - Direct mount
  • Fitting Hoses: JIC/SAE

S Model:

  • Lift / Dump Capacity: 29,000 lbs
  • CA Range: 120-130"
  • Optimum CA: 130"
  • Minimum GVWR: 33,000 lbs
  • Hooklift Length: 162"
  • Body Length Range: 11-14'
  • Optimum Body Lengths: 12-14'
  • Jib Height: 36" or 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 50 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 3,625 PSI
  • Pump Type: Piston - Direct mount
  • Fitting Hoses: JIC/SAE

M Model:

  • Lift / Dump Capacity: 29,000 lbs
  • CA Range: 130-140"
  • Optimum CA: 140"
  • Minimum GVWR: 33,000 lbs
  • Hooklift Length: 170"
  • Body Length Range: 12-16'
  • Optimum Body Lengths: 14-16'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 50 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 3,625 PSI
  • Pump Type: Piston - Direct mount
  • Fitting Hoses: JIC/SAE

MT Model:

  • Lift / Dump Capacity: 29,000 lbs
  • CA Range: 130-140"
  • Optimum CA: 140"
  • Minimum GVWR: 33,000 lbs
  • Hooklift Length: 170"
  • Body Length Range: 12-16'
  • Optimum Body Lengths: 14-16'
  • Jib Height: 36" & 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 50 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 3,625 PSI
  • Pump Type: Piston - Direct mount
  • Fitting Hoses: JIC/SAE

L Model:

  • Lift / Dump Capacity: 29,000 lbs
  • CA Range: 150-160"
  • Optimum CA: 160"
  • Minimum GVWR: 33,000 lbs
  • Hooklift Length: 193"
  • Body Length Range: 14-18'
  • Optimum Body Lengths: 12-18'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 50 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 3,625 PSI
  • Pump Type: Piston - Direct mount
  • Fitting Hoses: JIC/SAE

XL Model:

  • Lift / Dump Capacity: 29,000 lbs
  • CA Range: 174-186"
  • Optimum CA: 186"
  • Minimum GVWR: 33,000 lbs
  • Hooklift Length: 221"
  • Body Length Range: 15-20'
  • Optimum Body Lengths: 18-20'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 47 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 3,625 PSI
  • Pump Type: Piston - Direct mount
  • Fitting Hoses: JIC/SAE
