The Wittke™ Superduty stands as the most rugged among front loaders, engineered for minimal maintenance requirements and to deliver the lowest total cost of ownership. This is achieved through the integration of upsized body structural members with time-tested Wittke™ designs.

Wittke™ delivers the smoothest lifting arm operation and the quickest cycle time. The packing cycle takes a mere 18 to 20 seconds and only a 12 to 14-second complete arm cycle for increased productivity.

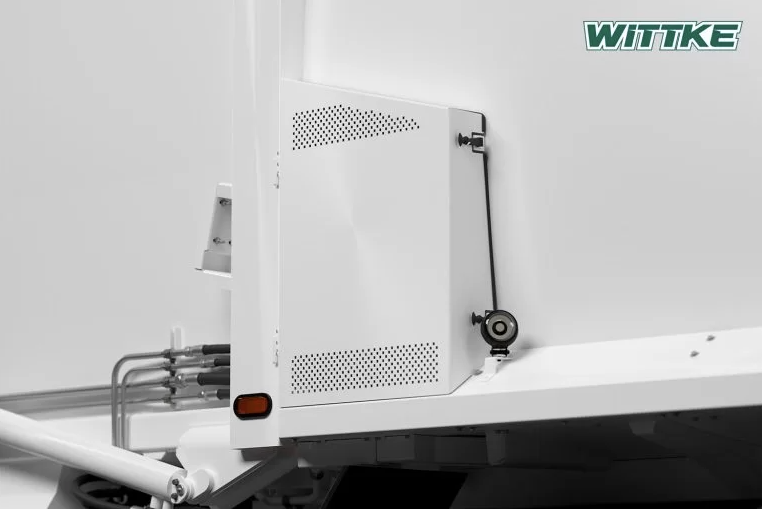

The hydraulic control valve is located on the side of the body for easier maintenance access. Difficult service work is a breeze when hydraulic maintenance can be performed from the ground level.

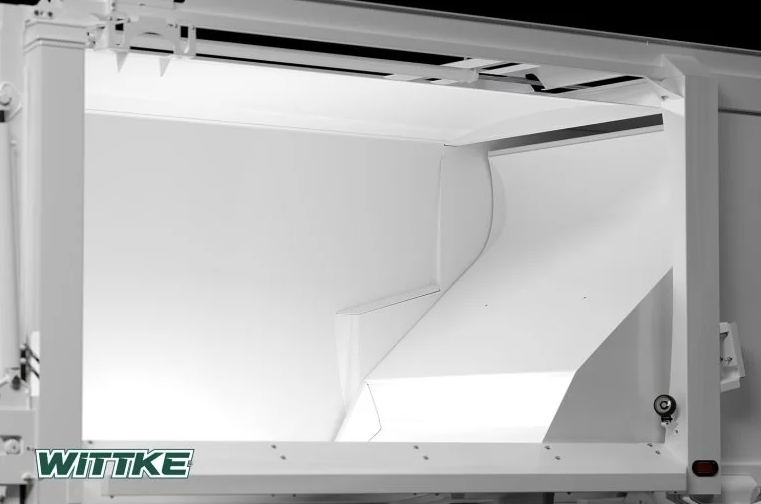

With an upper shelf over 23" long and a wiper located on the body bulkhead, materials are swept back into the hopper, keeping the packer cylinders protected.

  • 34 yd³ to 44 yd³ body sizes available
  • Innovative canopy, sweeper and shelf design
  • Single piece body walls for increased strength
  • Optional Durascope™ packer cylinders
  • Plow-Shaped Packer Panel

  • Arms Up 12 - 14 sec @ 700 rpm
  • Arms Down 10 - 12 sec @ 700 rpm
  • Forks Up 3.5 - 4.5 sec @ 700 rpm
  • Forks Down 3.5 - 4.5 sec @ 700 rpm
  • Packer Extend 14 - 18 sec @ 1500 rpm
  • Packer Retract 5 - 6 sec @ 700 rpm
  • Top Door complete cycle 13 - 17 sec @ 700 rpm
  • Tailgate Open 21 sec @ 700 rpm
  • Tailgate Close (with Safety Flow limiter) 26 sec @ 700 rpm
