description specs

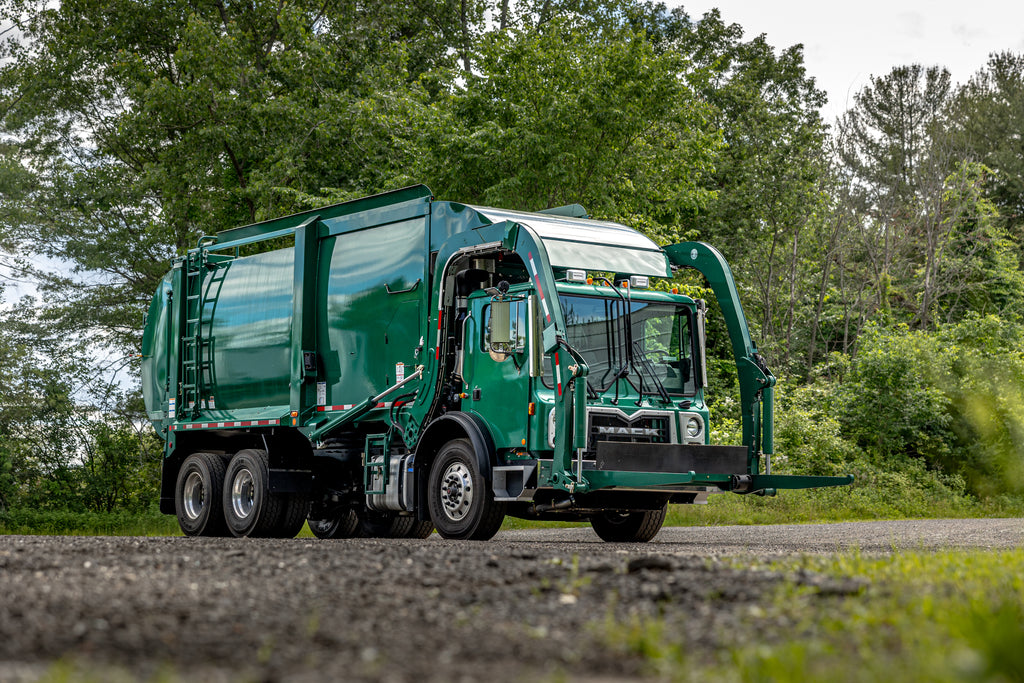

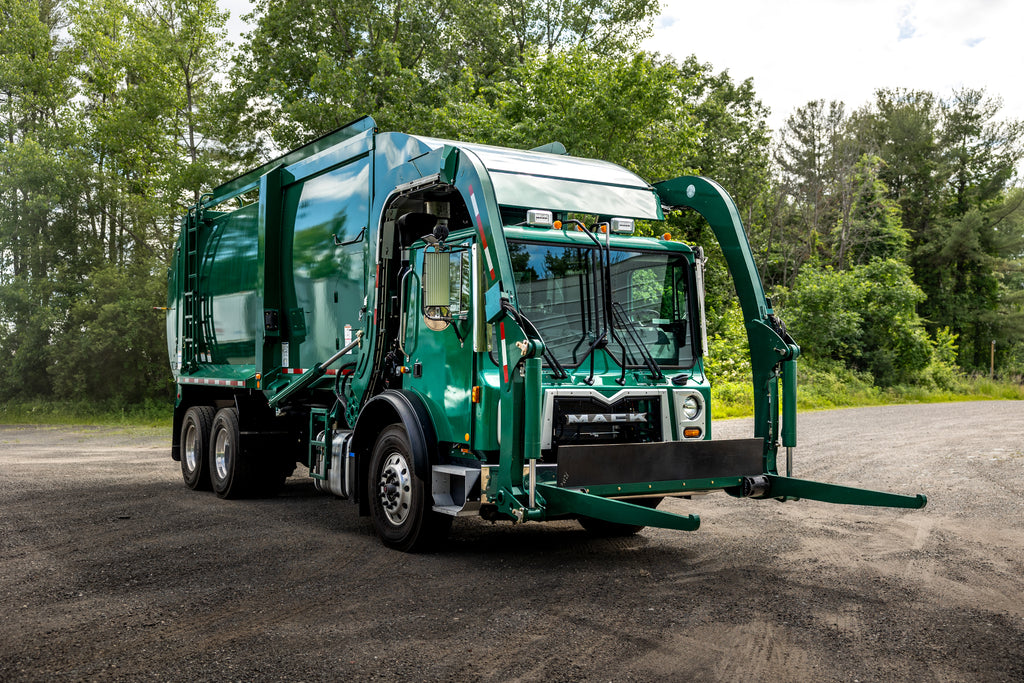

The Wittke™ Starlight is renowned for its agility, handling both residential and commercial routes. Its low body weight maximizes legal payload capacity, and its rapid-lifting cycle guarantees fast loading on the route.

Wittke™ delivers the smoothest lifting arm operation and the quickest cycle time. The packing cycle takes a mere 18 to 20 seconds and only a 12 to 14-second complete arm cycle for increased productivity.

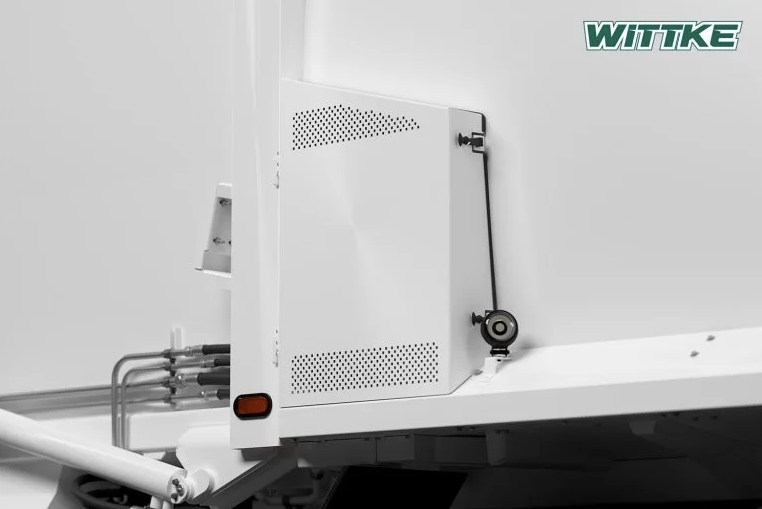

The hydraulic control valve is located on the side of the body for easier maintenance access. Difficult service work is a breeze when hydraulic maintenance can be performed from the ground level.

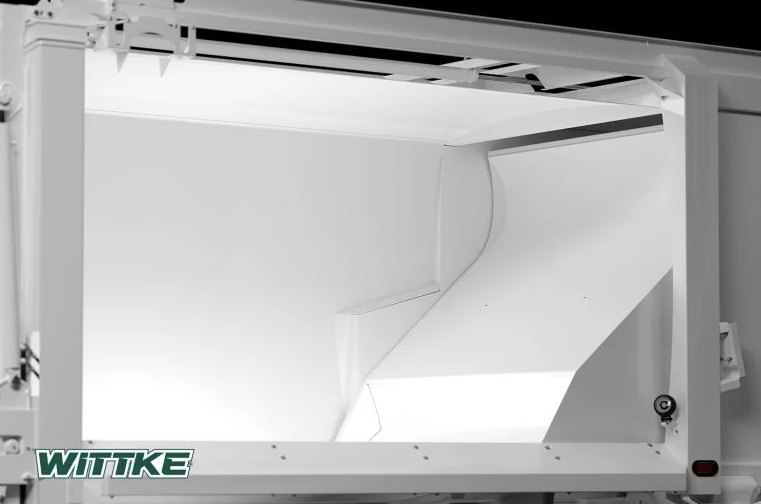

With an upper shelf over 23" long and a wiper located on the body bulkhead, materials are swept back into the hopper, keeping the packer cylinders protected.

  • 34 yd³ to 44 yd³ body sizes available
  • Innovative canopy, sweeper and shelf design
  • Single piece body walls for increased strength
  • Optional Durascope™ packer cylinders
  • Plow-Shaped Packer Panel

  • Arms Up 12 - 14 sec @ 700 rpm
  • Arms Down 10 - 12 sec @ 700 rpm
  • Forks Up 3.5 - 4.5 sec @ 700 rpm
  • Forks Down 3.5 - 4.5 sec @ 700 rpm
  • Packer Extend 14 - 18 sec @ 1500 rpm
  • Packer Retract 5 - 6 sec @ 700 rpm
  • Top Door complete cycle 13 - 17 sec @ 700 rpm
  • Tailgate Open 21 sec @ 700 rpm
  • Tailgate Close (with Safety Flow limiter) 26 sec @ 700 rpm
