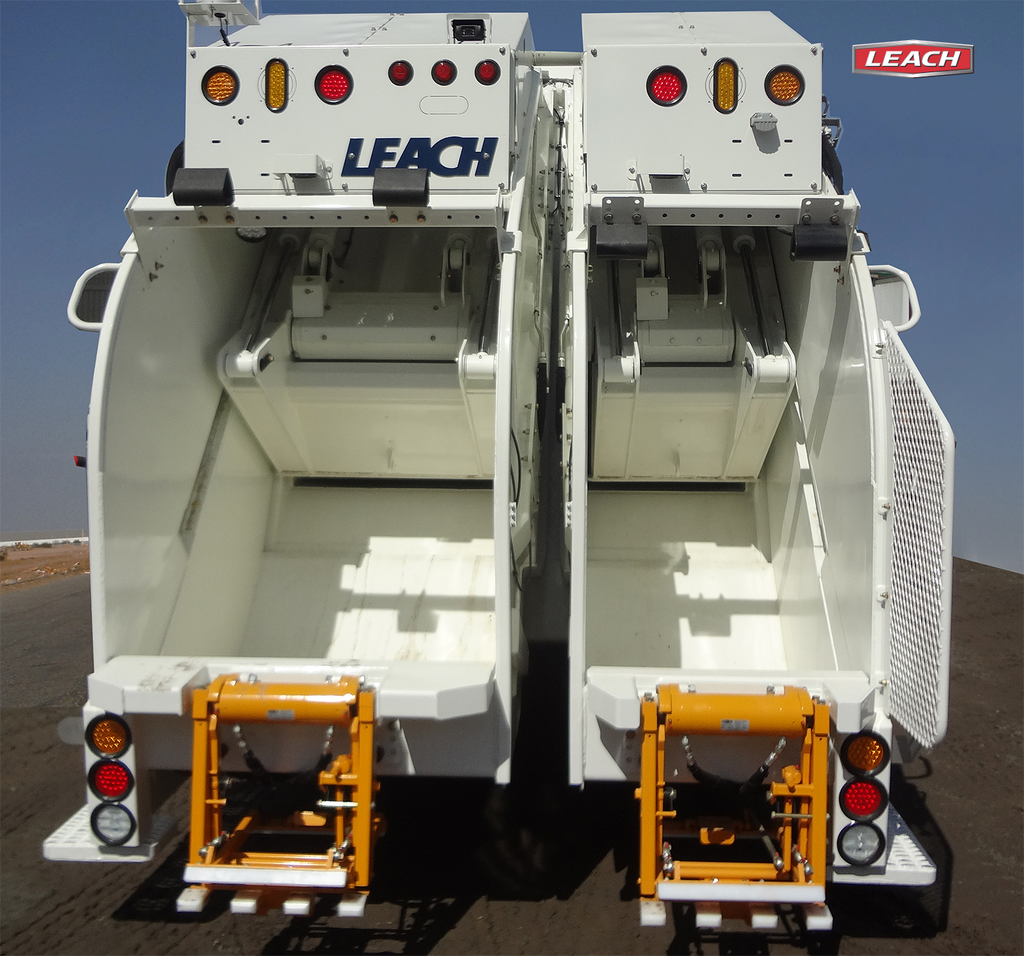

Leach rear loader with two hoppers and two cart lifters, rear view
Leach rear loader with two hoppers and two cart lifters, rear view

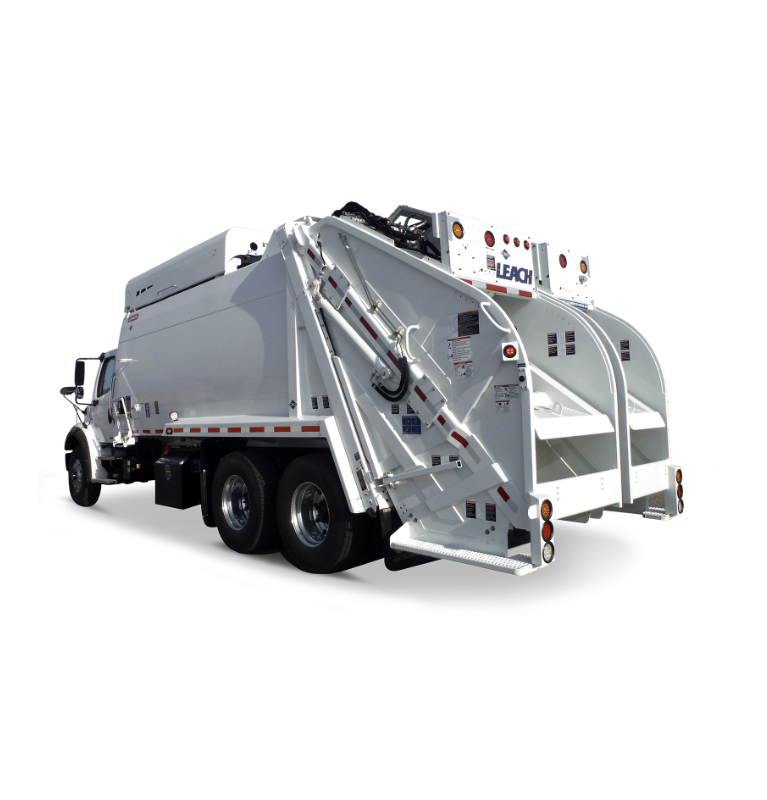

Leach rear loader with two hoppers side by side, rear three quarter view, driver side
Leach

Split Rear

description specs

Overview

The Leach Split Rear is a rear loader with independent tailgates and ejector panels. The 60% hopper side holds 1.4 yd³, and the 40% side holds 1 yd³. The loading sill sits 6" below the chassis frame.

Key Features

  • Each tailgate has its own hydraulic system.
  • Chromium overlay is used on the packer and carrier slide shoes.
  • The packer cylinders are interchangeable.

Options & Configurations

  • Body split choices are 50/50, 40/60 or 60/40.
  • EV or CNG powered.

Applications

  • Materials handled are refuse, recyclables and organics.
  • Residential collection.

Body Specs

  • Body Floor: 1/4" 50W 50,000 psi
  • Body Roof: 10ga A1011 80,000 psi

Hopper Specs

  • Hopper Size 60% side (yd³): 1.4
  • Hopper Size 40% side (yd³): 1
  • Hopper Opening Width 60% Side: 45-7/8"
  • Hopper Opening Width 40% Side: 32-3/8"
  • Hopper Opening Height: 63"
  • Hopper Depth: 15"
  • Loading Sill Below Chassis Frame: 6"
  • Hopper Floor: 3/16" 100QT 100,000 psi (AR450, 175,000 psi optional)
  • Hopper Sides (upper): 3/16" 50W 50,000 psi (AR450, 175,000 psi optional)
  • Hopper Sides (lower): 1/4" 50W 50,000 psi (AR450, 175,000 psi optional)

Body Dimensions

  • Overall Length, Tailgate Closed (in.) (32 yd³ body): 326
  • Overall Width (in.) (32 yd³ body): 102
  • Overall Height Above Frame, Tailgate Closed (in.) (32 yd³ body): 95
  • Overall Length, Tailgate Open (in.) (32 yd³ body): 363
  • Overall Height Above Frame, Tailgate Open (in.) (32 yd³ body): 153

Cylinder Specs

  • Ejector Cylinder (32 yd³): 5 stages 7-1/2" bore x 176-1/2" stroke
  • Packer Cylinders: 3-1/4" bore x 2" rod x 32" stroke
  • Carrier Cylinders: 3-3/4" bore x 1-3/4" rod x 35" stroke
  • Tailgate Cylinders: 3" bore x 2" rod x 35-1/2" stroke

Hydraulic Specs

  • Pump: Remote dual valve pump
  • Pump Capacity: 56 gpm @ 1200 rpm
  • Max. Operating Pressure: 3,000 psi
  • Oil Reservoir: 94 gallons

Packer-Carrier Specs

  • Packer Panel Face Plate: 1/4" 50W 50,000 psi
  • Carrier Panel Face Plate: 3/16" 50W 50,000 psi

Performance Specs

  • Tailgate Open: 10 sec @ 700 rpm
  • Tailgate Close: 14 sec @ 700 rpm

Features

  • Tailgates and ejector panels: Independent
  • Tailgate hydraulics: Individual system for each tailgate
  • Ejector cylinders: Telescopic, installed at an upward angle
  • Compaction design: Diamond Force
  • Packer cylinders: Interchangeable
  • Controls: Packer and carrier control rods with a direct linkage to the hydraulic valves
  • Packer and carrier slide shoes: Chromium overlay
  • Collection type: Manual, residential, organics, recycling, full eject, split body, EV, CNG

Options

  • Split body configurations: 50/50, 40/60, or 60/40
  • Control location: Curbside only or both sides of the tailgate
  • Tipper controls: Optional, located on the same side
  • EV or CNG powered
  • CNG capacity: 50 to 100 DGE
  • CNG mounting: Frame, roof or cab
  • Hopper liners: AR steel available
  • Dual tipper: Various configurations available

Applications

  • Materials: Refuse, recyclables, and organics
