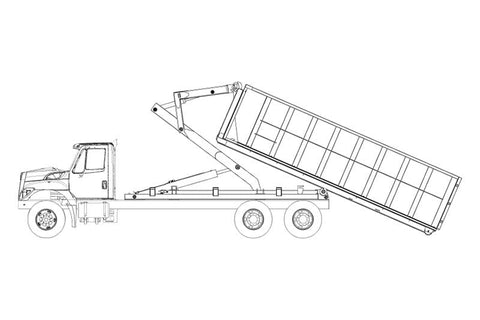

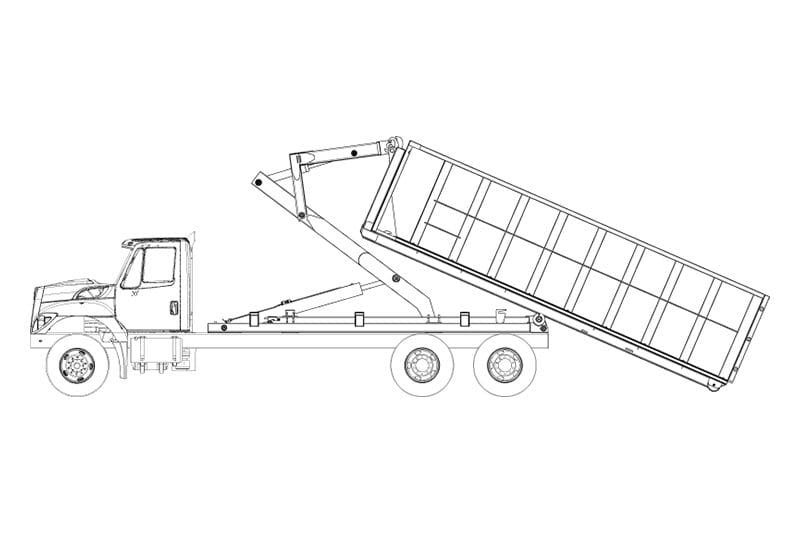

When heavy hauling is required, look to the 65,000-lb Stellar® Shuttle Hooklift for the solution. These models are engineered to handle the extremely heavy loads of both on- and off-road hauling. The 65,000-lb Stellar Shuttle Hooklifts feature dual 7″ bore lift/dump cylinders, designed to keep the overall height and total weight as low as possible. Dual rear rollers with integral rear body tiedowns are standard.

Stellar 65,000-lb Hooklift Loaders are available in both on-road and extra heavy-duty off-road versions. The off-road models boast heavy double-plate construction throughout, with 3″ thick solid steel plate used in the rear portions of the dump section and base. These massive hook loaders are built for heavy-duty work in foundries, steel mills, and scrap yards.

138-18-65

  • Dump Angle (A): 50˚
  • Effective Length (B): 174"
  • Cab to Trunnion (C): 138" – 144"
  • Lifting/Dumping Capacity: 65,000 lbs
  • Recommended Body Length: 15' – 17.5'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 54,000 lbs

174-20-65

  • Dump Angle (A): 51˚
  • Effective Length (B): 204"
  • Cab to Trunnion (C): 160" – 174"
  • Lifting/Dumping Capacity: 65,000 lbs
  • Recommended Body Length: 17' – 20'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 54,000 lbs

190-24-65

  • Dump Angle (A): 50˚
  • Effective Length (B): 221"
  • Cab to Trunnion (C): 174" – 190"
  • Lifting/Dumping Capacity: 65,000 lbs
  • Recommended Body Length: 19' – 21.5'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 54,000 lbs
