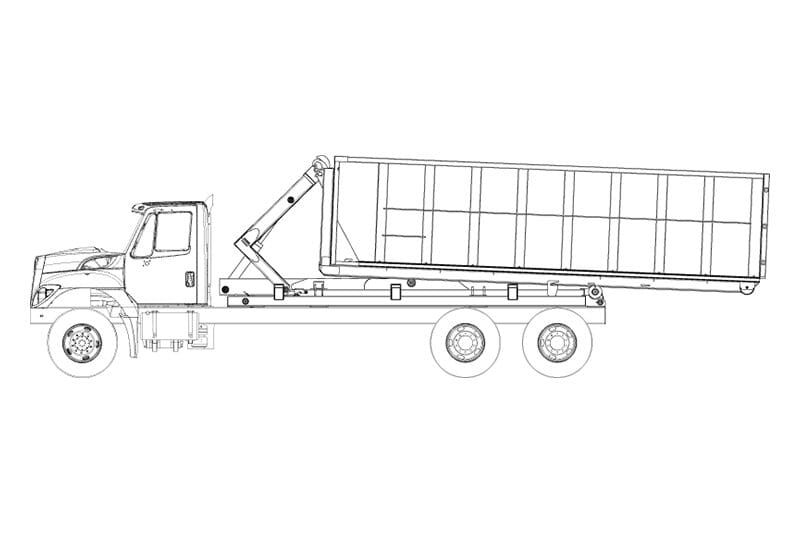

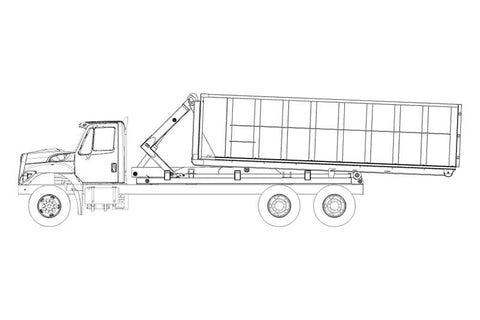

The 52,000-lb Stellar® Shuttle Hydraulic Hooklifts are the “bread and butter” models for our heavy-hauling customers. Thanks to our unique single-dump cylinder design, Stellar 52,000-lb models can deliver up to a ton more net payload than most competitive hooklift and roll-off units with similar-rated capacity. The Stellar low-flow/high-pressure hydraulic system further enhances weight savings by utilizing a smaller hydraulic system compared to competitive models.

Stellar 52,000-lb Hooklift Loaders have proven their durability in some of the most challenging applications, including demolition debris hauling, self-contained compactor retrieval, off- and on-road construction, agriculture, and logging.

138-18-52

  • Dump Angle (A): 50˚
  • Effective Length (B): 176"
  • Cab to Trunnion (C): 138" – 144"
  • Lifting/Dumping Capacity: 52,000 lbs
  • Recommended Body Lengths: 15' – 17.5'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 54,000 lbs

174-20-52

  • Dump Angle (A): 50˚
  • Effective Length (B): 206"
  • Cab to Trunnion (C): 160" – 174"
  • Lifting/Dumping Capacity: 52,000 lbs
  • Recommended Body Lengths: 17.5' – 21'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 54,000 lbs

190-24-52

  • Dump Angle (A): 50˚
  • Effective Length (B): 223"
  • Cab to Trunnion (C): 174" – 190"
  • Lifting/Dumping Capacity: 52,000 lbs
  • Recommended Body Lengths: 19' – 21.5'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 54,000 lbs
