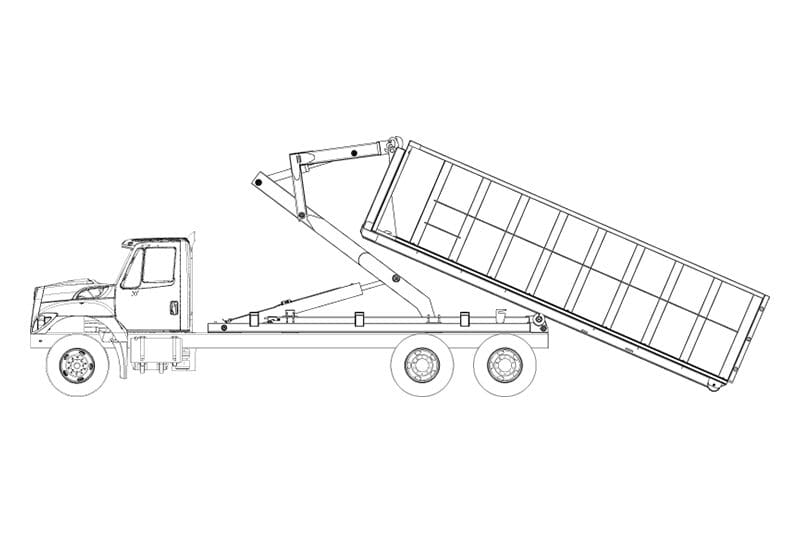

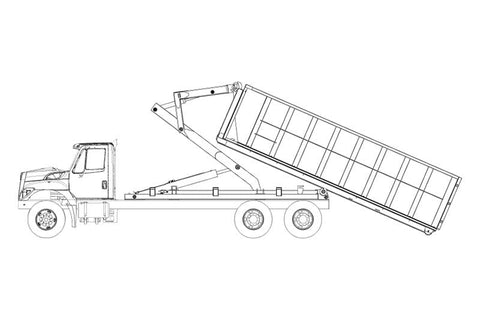

SHUTTLE32
SHUTTLE32
SHUTTLE32
Stellar

SHUTTLE32

description specs

Building on the success of our 40,000 and 52,000-lb capacity models, the 32,000-lb series is the ideal choice for those handling consistent weights or targeting lighter loads.

The 32,000-lb capacity Stellar® Hydraulic Hooklifts are expertly engineered for use with a heavy single rear axle or light tandem axle truck chassis. Each Stellar 32,000-lb capacity hooklift loader features the taller 61.75" hook height, a standard feature across all heavier-capacity Stellar Hooklift Loaders.

The 108-14-32 model is specifically tailored for municipal applications, offering maximum loading capacity while maintaining a short, highly maneuverable turning radius—perfect for heavy single rear-axle trucks.

108-14-32

  • Dump Angle (A): 57˚
  • Effective Length (B): 144"
  • Cab to Trunnion (C): 102" – 108"
  • Lifting/Dumping Capacity: 32,000 lbs
  • Recommended Body Lengths: 12' – 15'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 32,000 lbs

138-18-32

  • Dump Angle (A): 50˚
  • Effective Length (B): 176"
  • Cab to Trunnion (C): 130" – 144"
  • Lifting/Dumping Capacity: 32,000 lbs
  • Recommended Body Lengths: 15' – 17.5'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 32,000 lbs

174-20-32

  • Dump Angle (A): 50˚
  • Effective Length (B): 206"
  • Cab to Trunnion (C): 160" – 174"
  • Lifting/Dumping Capacity: 32,000 lbs
  • Recommended Body Lengths: 17.5' – 20'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 43,000 lbs

190-24-32

  • Dump Angle (A): 51˚
  • Effective Length (B): 223"
  • Cab to Trunnion (C): 174" – 190"
  • Lifting/Dumping Capacity: 32,000 lbs
  • Recommended Body Lengths: 19' – 21.5'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 43,000 lbs
