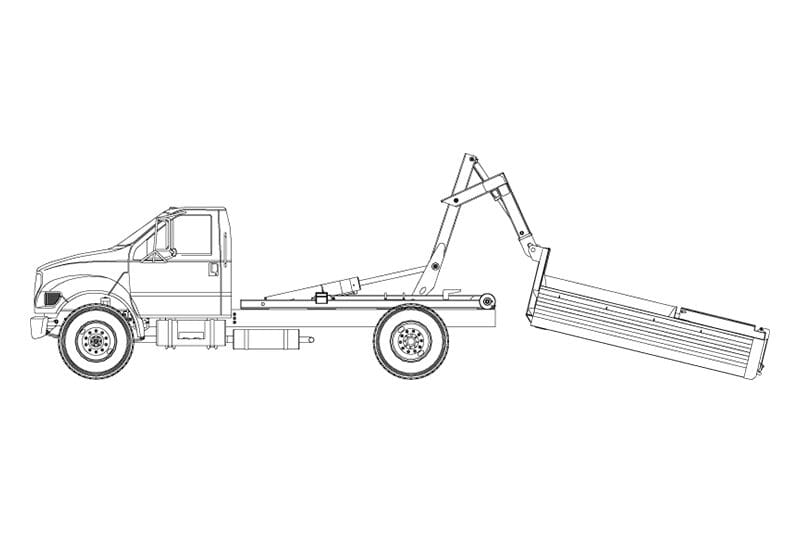

SHUTTLE20

description specs

Stellar’s lineup of 20,000-lb-capacity Shuttle Hooklift loaders offers the most extensive selection of any hooklift manufacturer. With a variety of lengths available, these 20,000-lb Stellar® Hooklifts are designed to accommodate cab-to-axle lengths ranging from 102" to 200" for single rear axle truck chassis.

The broad range of sizes within Stellar's 20,000-lb models showcases their exceptional versatility across numerous industries. Whether serving roofers, recyclers, landscapers, or lumber yards, these adaptable 20,000-lb Stellar® models are engineered to meet the rigorous demands of virtually any application.

108-12-20/36

  • Dump Angle (A): 53°
  • Effective Length (B): 126"
  • Cab to Axle (C): 102" – 108"
  • Lift/Dump Capacity: 20,000 lbs
  • Recommended Body Lengths: 12' – 13.5'
  • Hook Heights: 35.63"
  • Minimum Truck GVWR: 25,000 lbs

108-11-20

  • Dump Angle (A): 45°
  • Effective Length (B): 127"
  • Cab to Axle (C): 102" – 108"
  • Lift/Dump Capacity: 20,000 lbs
  • Recommended Body Lengths: 11' – 13.5'
  • Hook Heights: 54"
  • Minimum Truck GVWR: 25,000 lbs

120-16-20

  • Dump Angle (A): 48°
  • Effective Length (B): 146"
  • Cab to Axle (C): 114" – 130"
  • Lift/Dump Capacity: 20,000 lbs
  • Recommended Body Lengths: 12.5' – 15'
  • Hook Heights: 54"
  • Minimum Truck GVWR: 25,000 lbs

138-18-20

  • Dump Angle (A): 52°
  • Effective Length (B): 171"
  • Cab to Axle (C): 130" – 144"
  • Lift/Dump Capacity: 20,000 lbs
  • Recommended Body Lengths: 14.5' – 17'
  • Hook Heights: 54"
  • Minimum Truck GVWR: 25,000 lbs

168-20-20

  • Dump Angle (A): 50°
  • Effective Length (B): 195"
  • Cab to Axle (C): 168" – 180"
  • Lift/Dump Capacity: 20,000 lbs
  • Recommended Body Lengths: 16.5' – 19'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 25,000 lbs

190-24-20

  • Dump Angle (A): 45°
  • Effective Length (B): 222"
  • Cab to Axle (C): 190" – 200"
  • Lift/Dump Capacity: 20,000 lbs
  • Recommended Body Lengths: 18.5' – 21.5'
  • Hook Heights: 61.75"
  • Minimum Truck GVWR: 25,000 lbs
