Overview

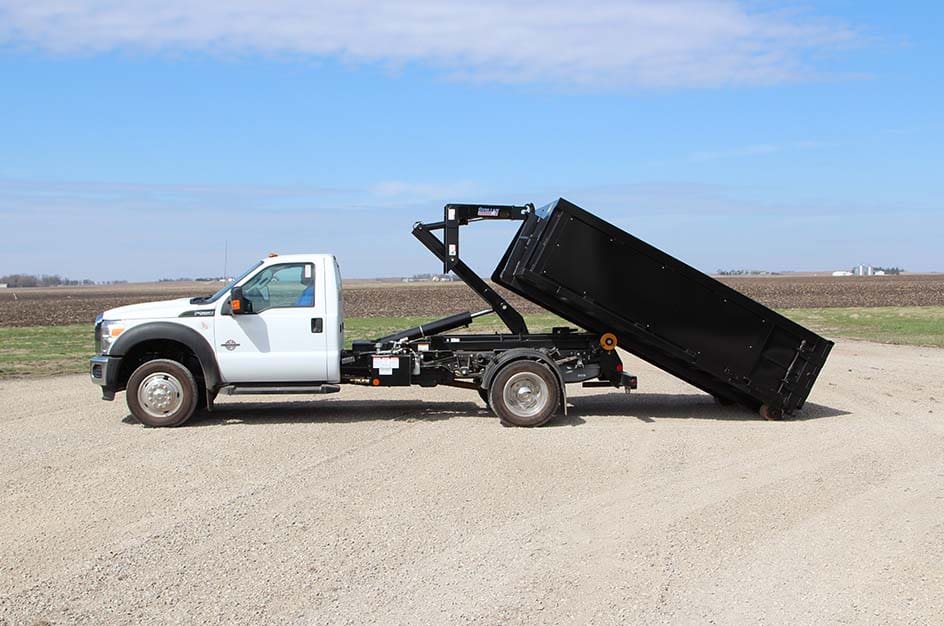

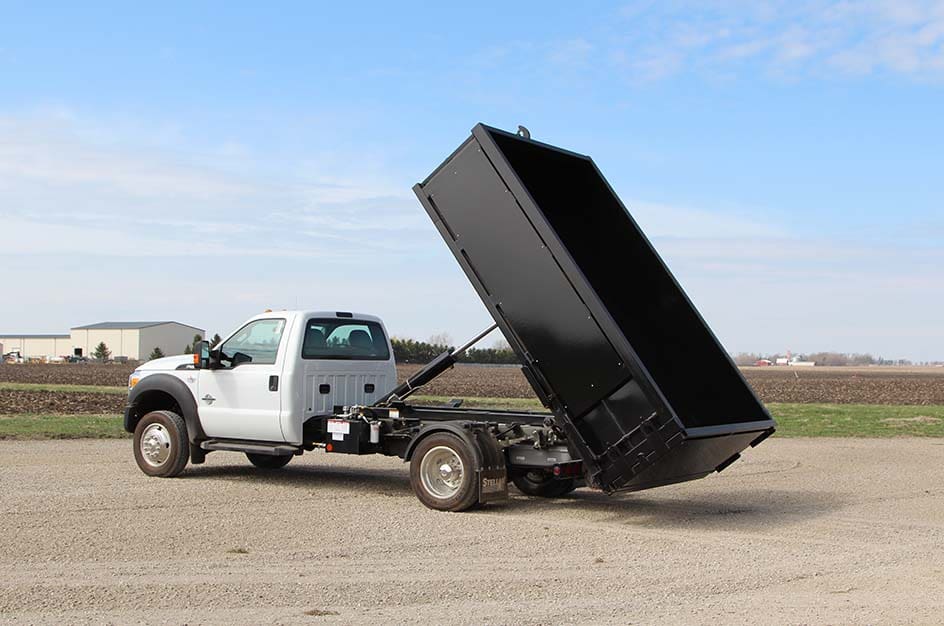

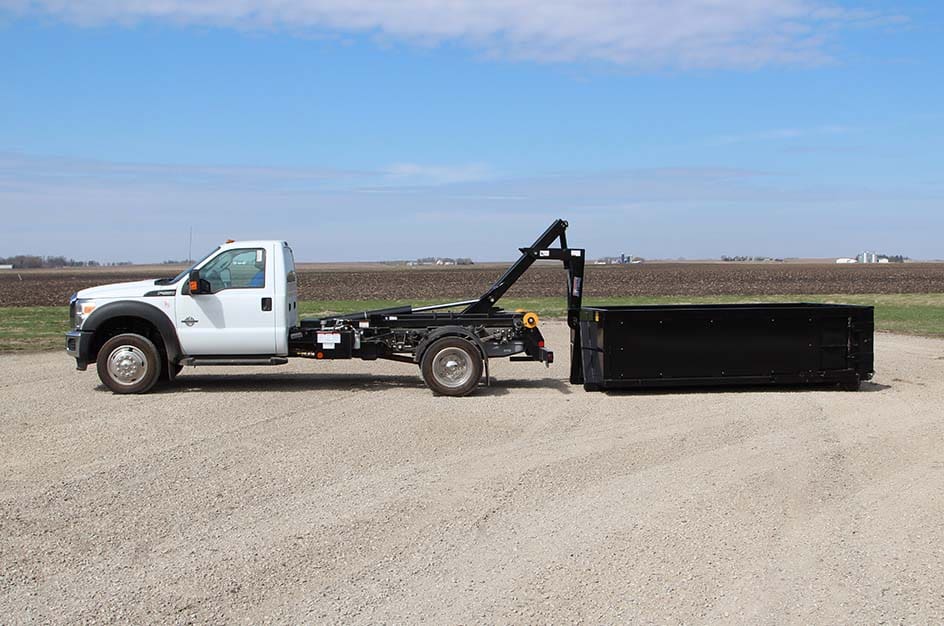

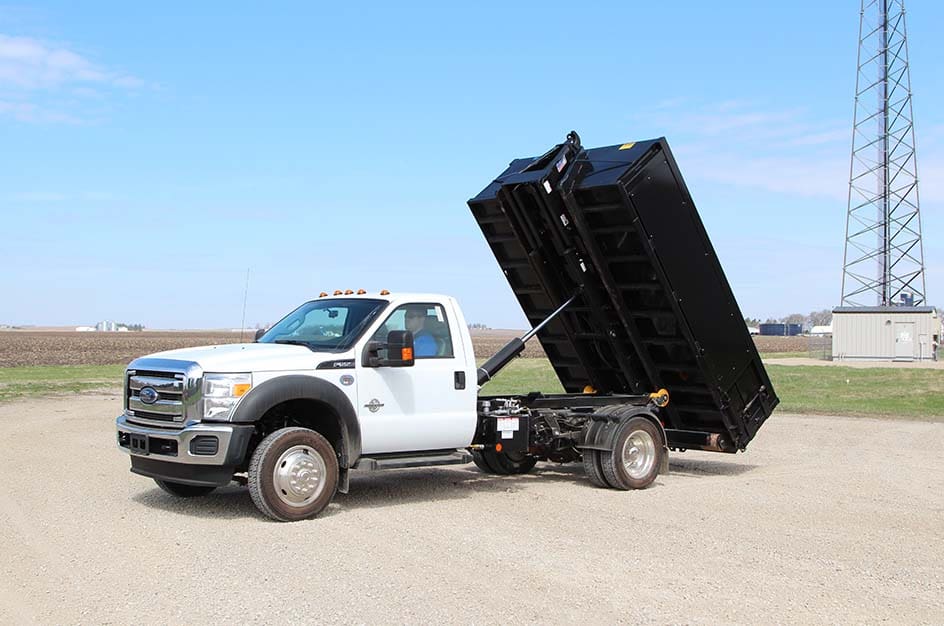

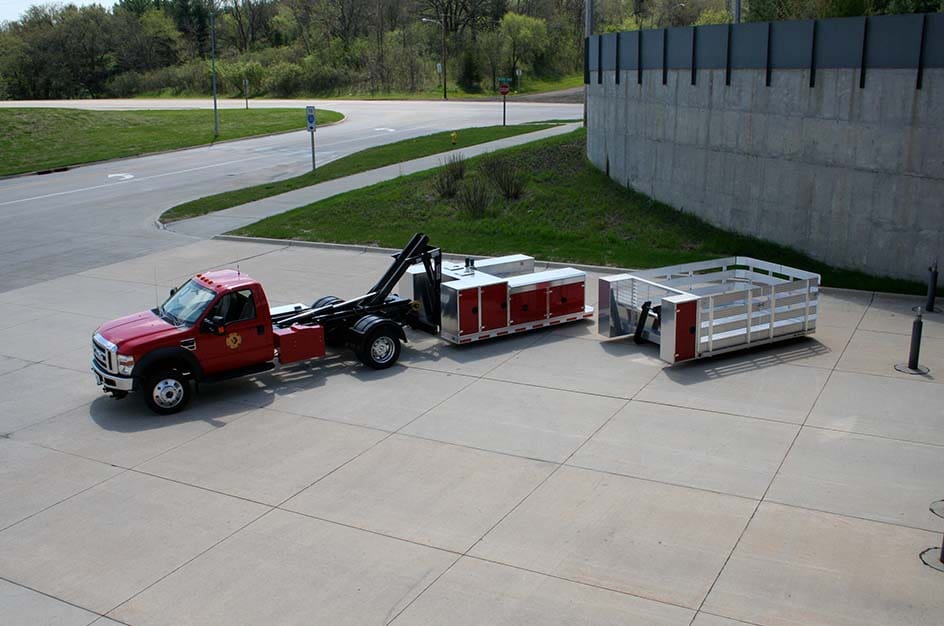

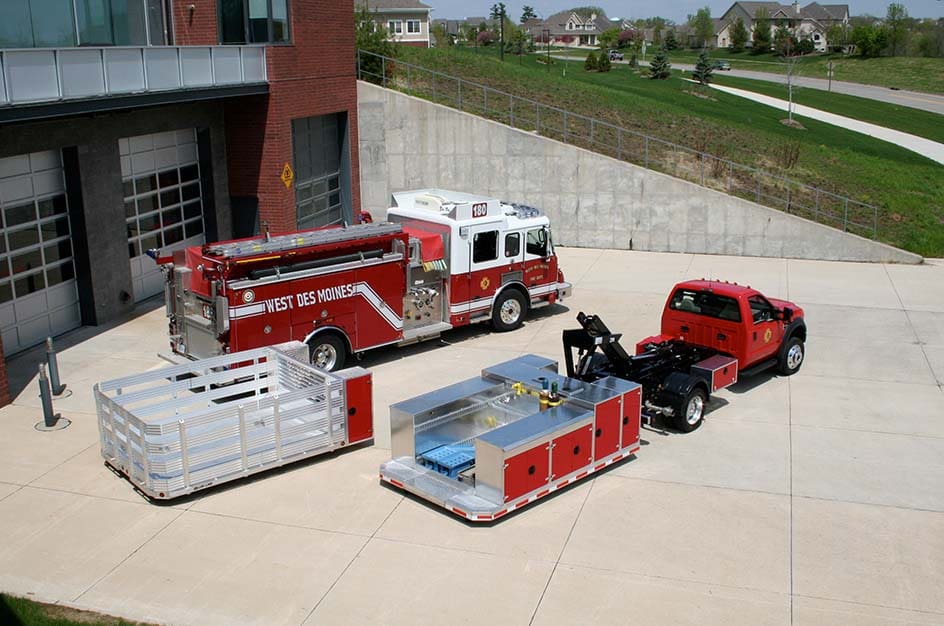

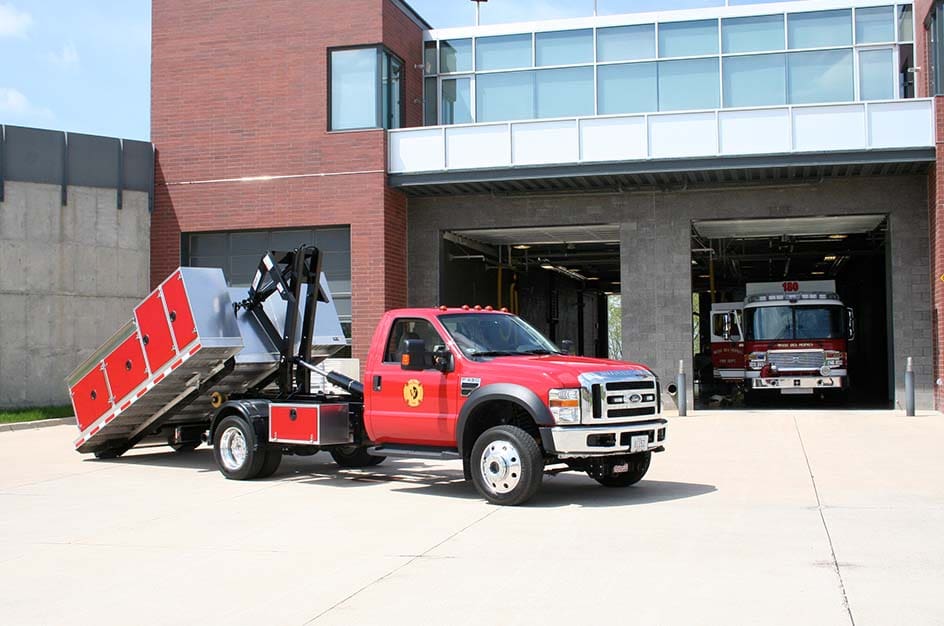

The Stellar Shuttle16 (Flex) is a non-telescopic hooklift that lifts up to 16,000 lbs. For dump containers the length range is 8' to 15'; for flatbeds it is 10' to 16'.

Key Features

  • Manual in-cab controls as standard, for metering the manual hydraulic valve
  • Frame-mounted 10-gallon oil reservoir
  • Dump/tilt tabs that can be reset
  • Counterbalance valves that hold the cylinders if pressure is lost
  • Mechanical tiedown latches at the rear of the body
  • Rear load rollers that can be greased
  • Grease zerks at every pin point for purging contaminants
  • Pins of zinc-plated carbon steel or type 17-4 stainless steel
  • All weldments finished in two-part polyurethane enamel

Options & Configurations

  • Configurations offered include the 60-8, 84-10, 108-12 and 120-14

Related Parts & Accessories

  • Stellar Cable Hoist Container Hooklift Adapter Kit, to adapt cable hoist containers for hooklift pickup

Specifications

  • Capacity: up to 16,000 lbs
  • Style: non-telescopic
  • Dump container lengths: 8' to 15'
  • Flatbed lengths: 10' to 16'
  • Maximum dump angle: 50 to 54 degrees, by body length
  • Bodies that keep the maximum rated dump angle: 8' to 15' on a 41" high truck frame
  • Min. truck GVWR: 10,500 to 26,000 lbs

Hydraulics

  • Maximum hydraulic flow: 16 gallons per minute
  • Oil reservoir: 10 gallons, frame-mounted
  • Power: transmission-mounted PTO and hydraulic pump (required)

Configurations

  • 60-8: 60" (1,524 mm) cab-to-axle; up to 9,000 lbs
  • 84-10: 84" to 96" (2,134 to 2,438 mm) cab-to-axle; up to 16,000 lbs
  • 108-12: 108" to 120" (2,743 to 3,048 mm) cab-to-axle; up to 16,000 lbs
  • 120-14: 120" to 130" (3,048 to 3,302 mm) cab-to-axle; up to 16,000 lbs
