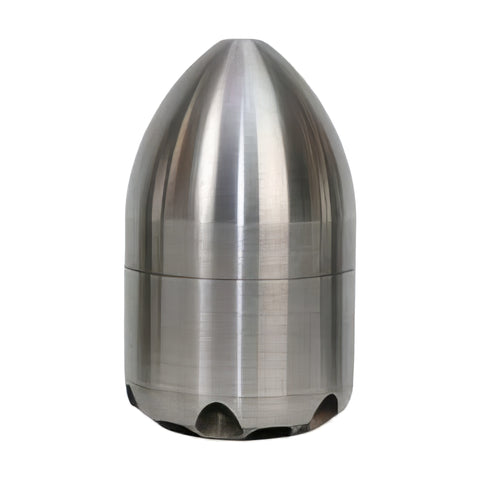

Royal Nozzle

Pipe Range: 12" to 48" | Hose: 3/4" to 1 1/4" | Tier Three Fluid Mechanics

The KEG Royal Nozzle is built for all-around cleaning of large diameter pipe from 12" to 48". Twelve rear jets alternate between 22 and 32 degrees for high wall force in big lines, and KEG rates it as a Tier Three nozzle above 95% efficient.

At 17.6 lb, the stainless steel Royal stays on the bottom of the pipe instead of bouncing around and wasting water. Its 12 M14 inserts can be titanium ceramic or steel. Stainless steel versions fit 3/4", 1" and 1 1/4" hose, and a 7.2 lb aluminum 1" version is also offered.

Advantages

• Tier Three fluid mechanics, rated above 95% efficient by KEG
• 12 rear jets at alternating 22 and 32 degree angles
• High wall force in large diameter pipe
• Heavy body holds the bottom of the pipe
• Replaceable threaded M14 inserts in titanium ceramic or steel

Applications

• Sanitary and storm sewer cleaning
• General sewer cleaning in 12" to 48" pipe
• Heavy debris removal
• Mud and sand

Sizes and KEG Part Numbers

Choosing the Right Version

• All stainless steel sizes share the same 7 1/2" x 4 3/8" body and 17.6 lb weight, so choose by your jetter hose size.
• The 1" Aluminum version (107021) must be run on a skid. KEG lists aluminum and stainless steel skids with holes in the accessories section of its catalog.
• Aluminum versions have a 1" hose connection; KEG notes they can be adapted to 1/2", 3/4" or 1 1/4" hose with a bushing.
• Titanium ceramic and steel inserts share the same base KEG part number (KEG adds -C for titanium ceramic or -S for steel), so pick the insert material in the option selector.

How to Order Online

Select the size and insert material above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
