Rotor Nozzle

Pipe Range: 2" to 20" | Hose Sizes: 1/4" to 1 1/4" | Tier Two Fluid Mechanics

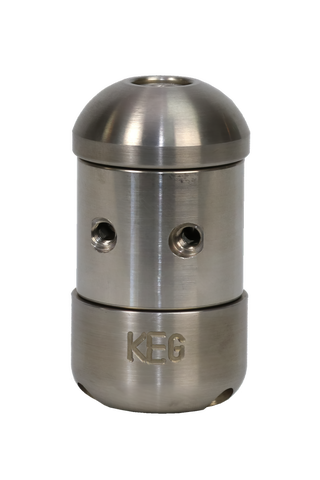

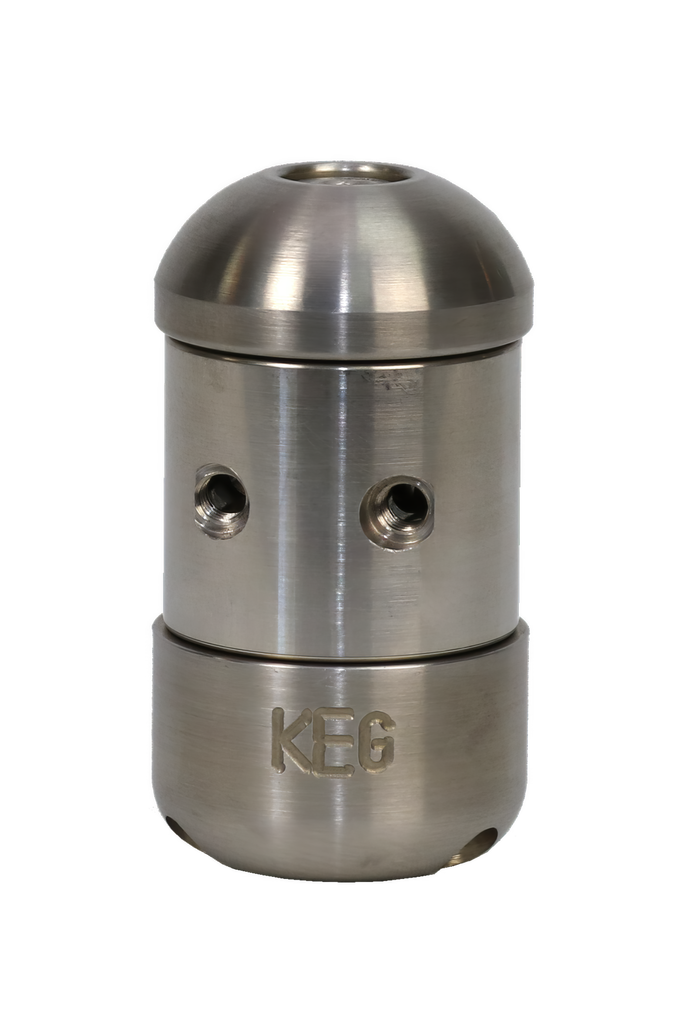

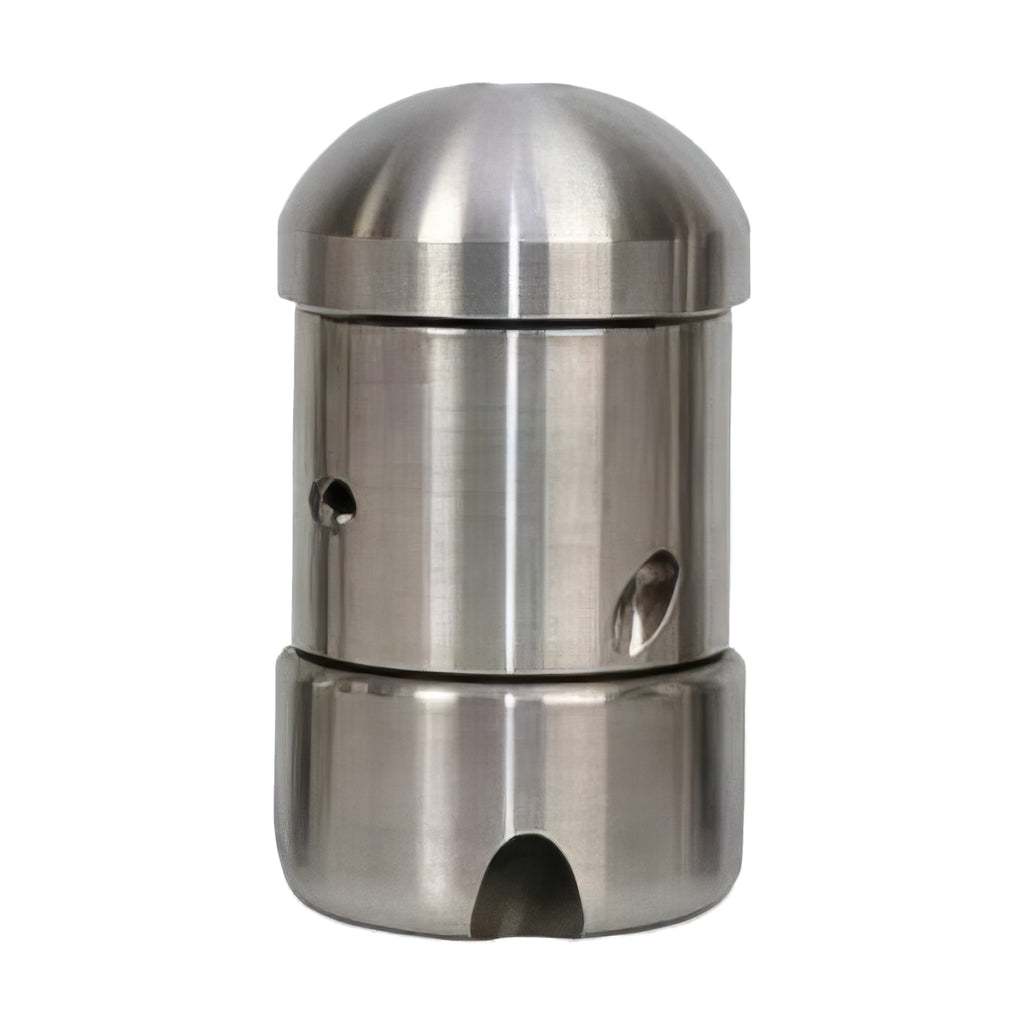

The KEG Rotor Nozzle is a finishing tool, not a cleaning nozzle. Run it after the main cleaning is done to strip the leftover grease, sludge, scale and fine root tendrils, including the grease residue that shows up as streaks on camera, and make it the last nozzle up the pipe before inspection.

Water drives the nozzle: the insert layout supplies both propulsion and a spinning body that works all 360 degrees of the pipe wall. There are no bearings, and KEG says to use no grease, oil or other lubricant in operation or maintenance; maintenance is removing the top cap and cleaning the rotational shaft, a job of a few minutes. Sizes run from 1/4" to 1 1/4" hose, with 45 and 90 degree versions at 1/2" and Small and Large versions at 1".

Advantages

• High rotational speed with a reversible rotating barrel
• Water driven, with no bearings to oil and no lubrication required
• Quick maintenance: remove the top cap and clean the shaft
• Works all 360 degrees of the pipe surface
• Replaceable inserts, titanium ceramic or steel on 1/2" and larger
• Eight versions from 1/4" to 1 1/4" hose

Applications

• Final pass before camera inspection
• Grease and scale removal in sanitary lines
• Small roots and tender vegetation
• Crusts and scaling on pipe walls
• Manholes and lift stations

Sizes and KEG Part Numbers

Choosing the Right Version

• The 1/4" and 3/8" rotors use factory inserts and are offered with steel inserts only.
• The 1/2" rotor comes in a 45 degree version (100071) and a 90 degree version (100071-90).
• At 1", choose the Small (100073) or Large (100073L) version; check pipe range and weight in the table.
• Use a cleaning nozzle first; the Rotor is meant for the finishing pass.

How to Order Online

Select the size and insert material above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
