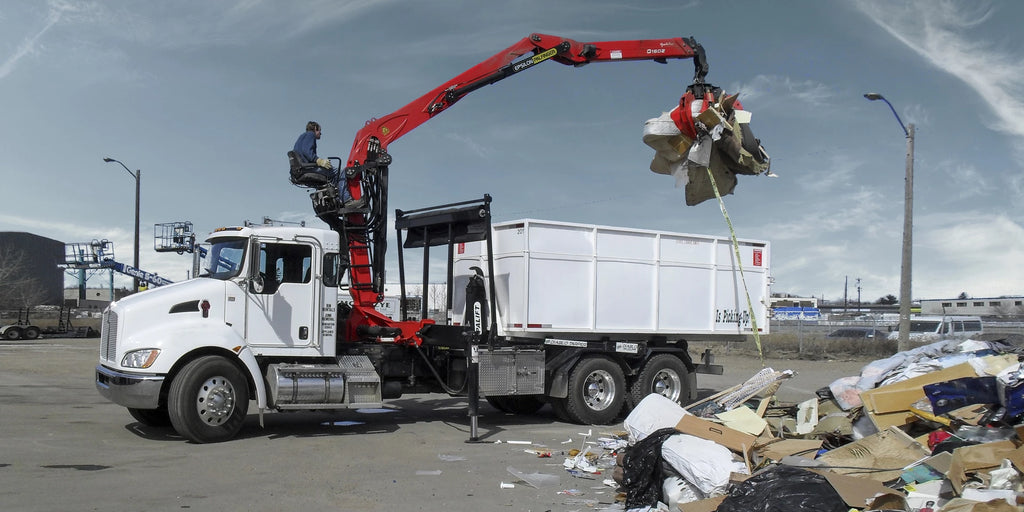

The Q-Series represents the upper end of the medium-duty class of EPSILON loaders in the Z-Line product range. This style of loader is a significant time saver with many available configurations. The Q150Z allows the operator to safely fold and stow the loader during transport without having to disconnect the grapple.

Z-Line models offer a clear time savings advantage and keep the operator out of the elements. It is not necessary for the operator to leave the cab or move the loader to dump the load  - the operator stays comfortably inside the truck. Capacities range from the 2.5 ton C70 to the 7.5 ton S260 with reaches to 31' 6”.

  • Max. lifting capacities (lbs.): 10274
  • Max capacity at full extension (lbs.): 3240
  • Max outreach (ft.): 31.5
  • Weight without rotator/grab (lbs.): 5908
  • Slewing torque (mt): 22127
  • Slewing angle: 425 degrees
  • Operating pressure: 3410 psi - 2x21 gpm
