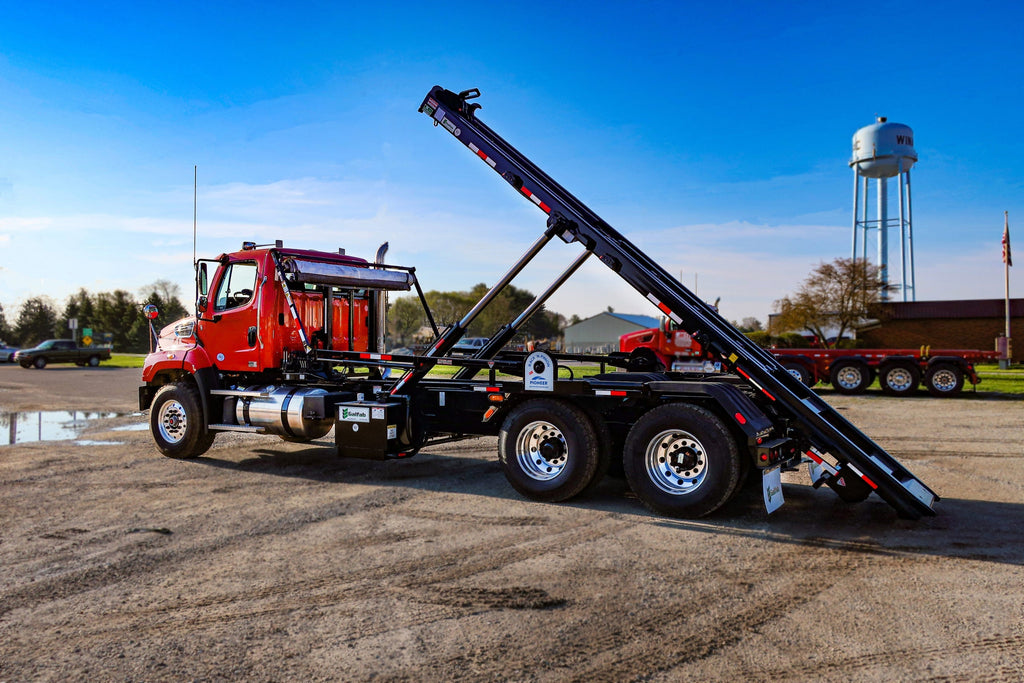

Galfab roll-off hoist raised on a red tandem axle truck, three quarter view
Galfab roll-off hoist raised on a red tandem axle truck, three quarter view

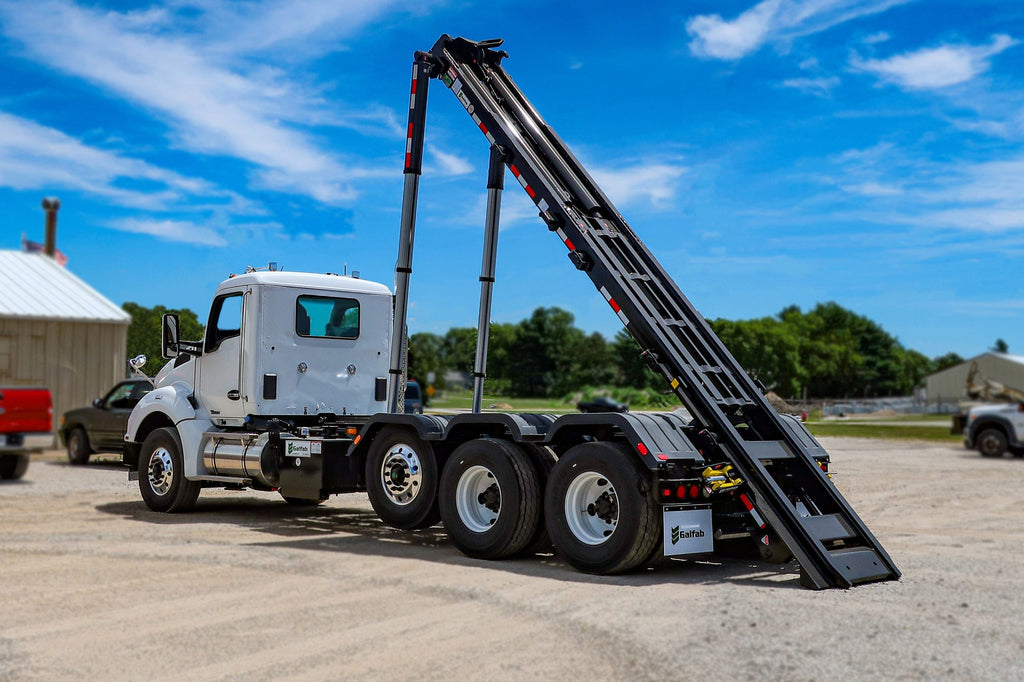

Galfab roll-off hoist raised on a white day cab, rear three quarter view

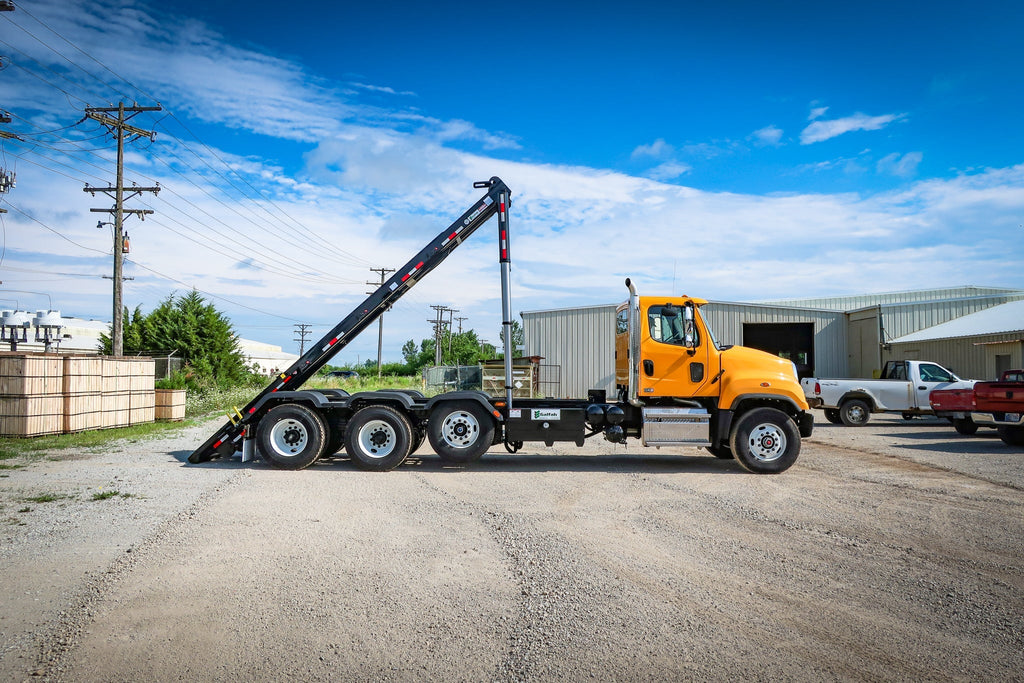

Galfab roll-off hoist partly raised on a yellow truck, side view

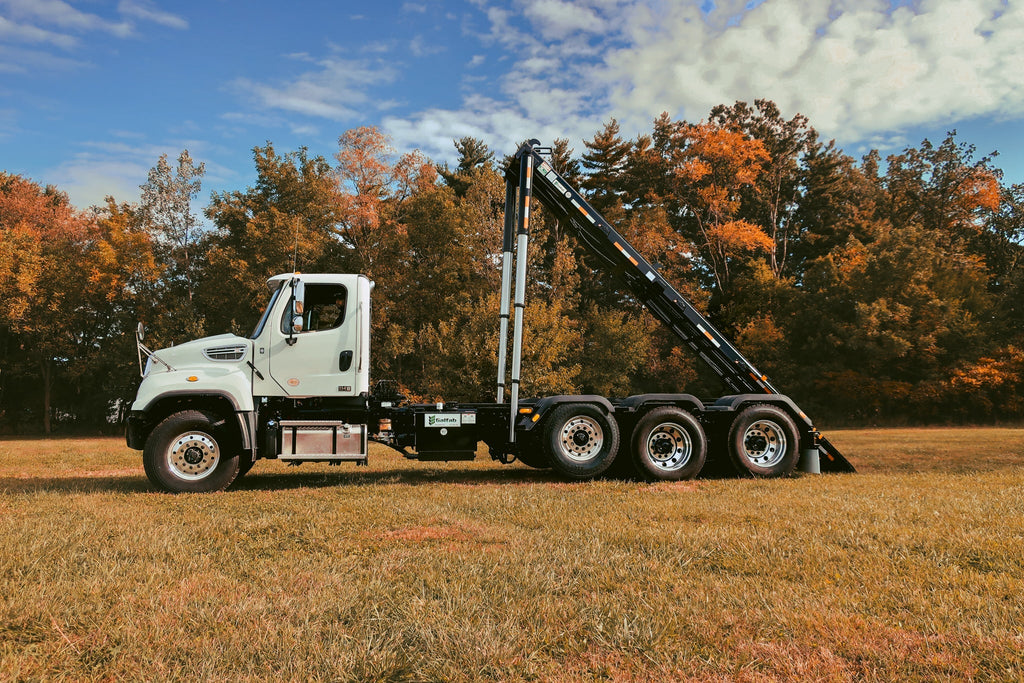

Galfab roll-off hoist raised on a white truck in a field, side view
Galfab

Galfab OR75194T121 Outside Rail Hoist

description specs

Overview

The Galfab OR75194T121 is an Outside Rail Hoist with a 48 degree dump angle. Its factory developed cycle times are 35 seconds up, 29 seconds down, 46 seconds on and 31 seconds off, and actual times may vary. The winch cylinder is 7" x 4" x 89.5" DA.

Key Features

  • 6 outside rollers, supported inboard and outboard
  • Interchangeable 10" vertical and horizontal sheaves
  • 2 1/2" diameter lift cylinder shafts and a 2 1/2" diameter rear hinge
  • 1" spring loaded container locks
  • 48 gallon oil reservoir with sight and temperature gauge, and 25 micron filtration
  • Inside and outside controls
  • 7/8" cable with swivel eye hook
  • Hoist up alarm and backup alarm

Options & Configurations

  • Behind cab and oversize oil tanks
  • Tool boxes
  • Auxiliary stops
  • Poly or steel fenders
  • Aluminum fenders
  • Tarping systems
  • "The Hooker" hold on system
  • Ratchet tie down straps
  • Pintle hook
  • Front mount pump
  • PTO
  • Drop shaft
  • On board scale systems
  • Work lights
  • Rear view camera systems
  • Integrated hydraulics, when the tarp system is hydraulic

Related Parts & Accessories

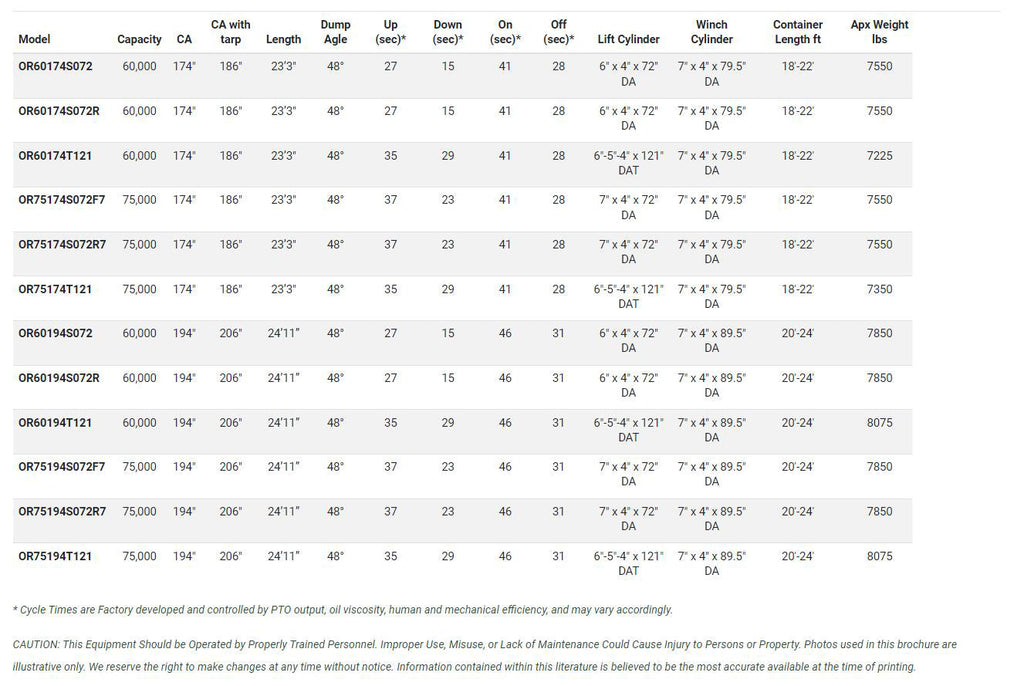

Specifications

  • Dump angle: 48 degrees
  • Cycle time, up: 35 sec
  • Cycle time, down: 29 sec
  • Cycle time, on: 46 sec
  • Cycle time, off: 31 sec
  • Cycle times: factory developed and may vary
  • Winch cylinder: 7" x 4" x 89.5" DA

Features

  • 2 1/2" diameter rear hinge
  • All working points greaseable
  • Pintle ready apron
  • 1" spring loaded container locks
  • 2 1/2" diameter lift cylinder shafts
  • Interchangeable 10" vertical and horizontal sheaves
  • 3/8" x 3" winch cylinder rod covers
  • 6 inboard and outboard supported outside rollers
  • Outboard supported side rollers
  • Greasable roller shaft that comes out after removing two bolts
  • Container long sill supports on rear of hoist mainframe
  • Rear ground roller cover
  • 48 gallon oil reservoir with sight and temperature gauge
  • 25 micron filtration
  • Inside and outside controls
  • LED lighting system
  • 7/8" cable with swivel eye hook
  • Hoist up alarm
  • Backup alarm

Options

  • Behind cab and oversize oil tanks
  • Tool boxes
  • Auxiliary stops
  • Poly or steel fenders
  • Aluminum fenders
  • Tarping systems
  • "The Hooker" hold on system
  • Ratchet tie down straps
  • Pintle hook
  • Front mount pump
  • PTO
  • Drop shaft
  • On board scale systems
  • Work lights
  • Rear view camera systems
  • Integrated hydraulics, when the tarp system is hydraulic
