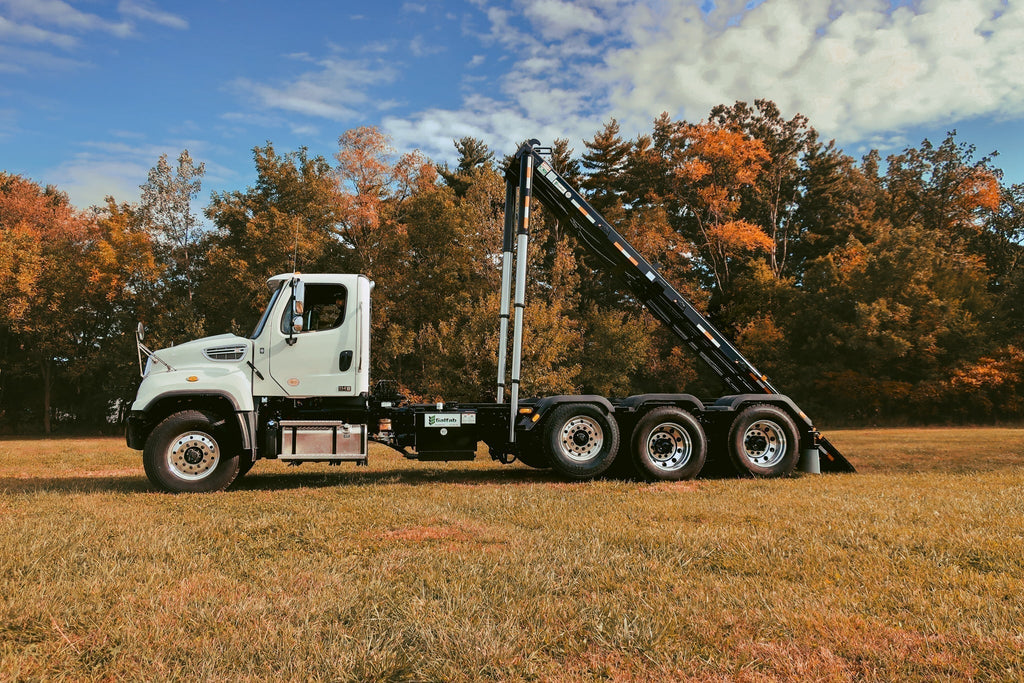

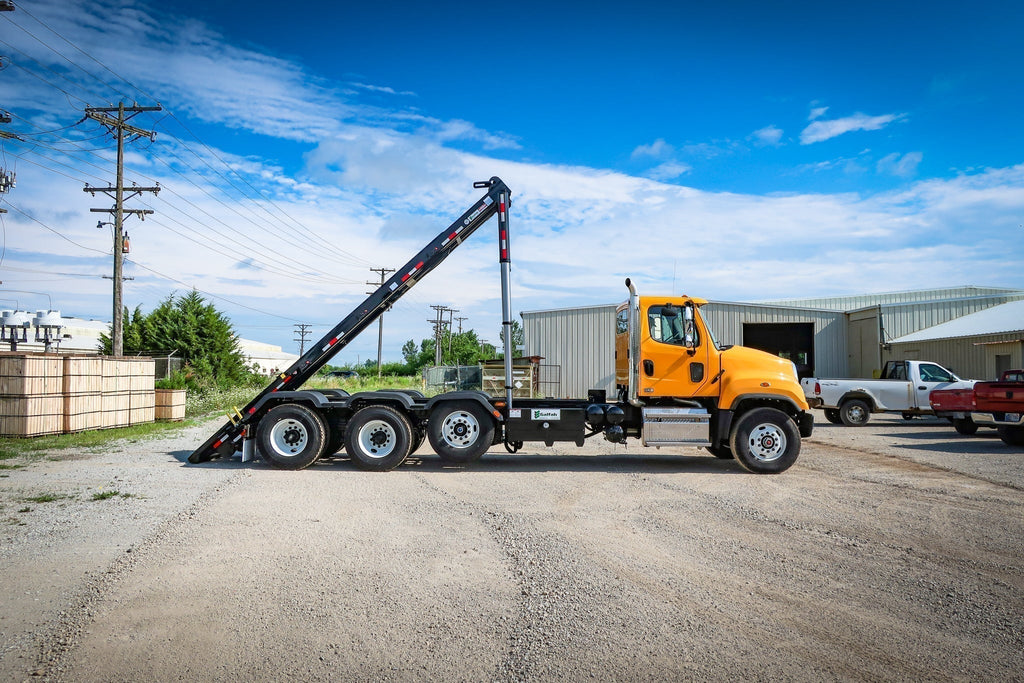

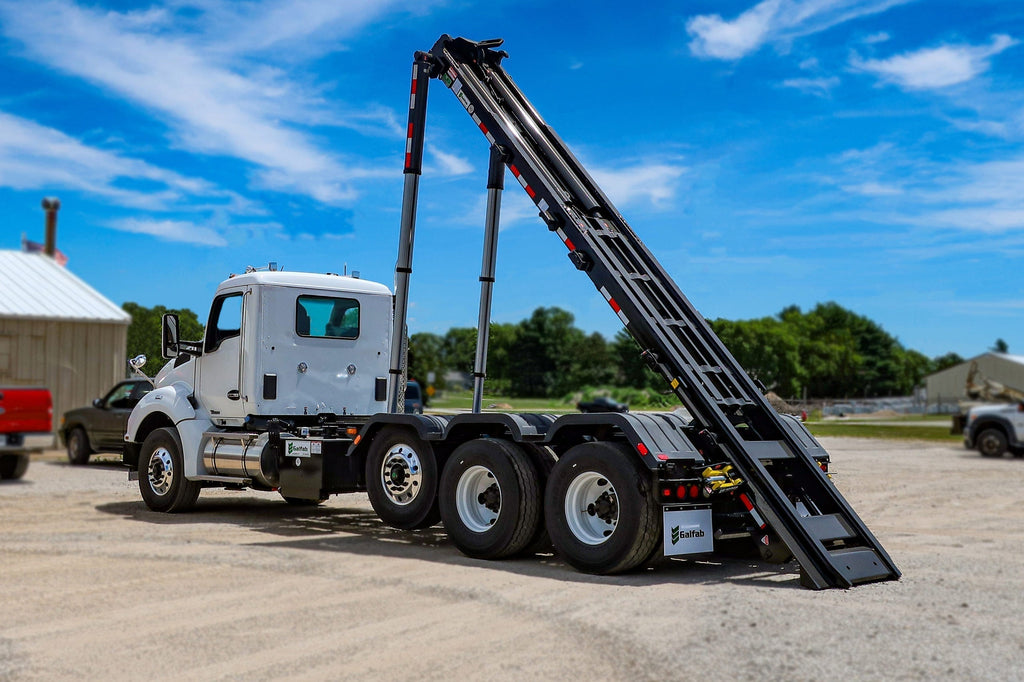

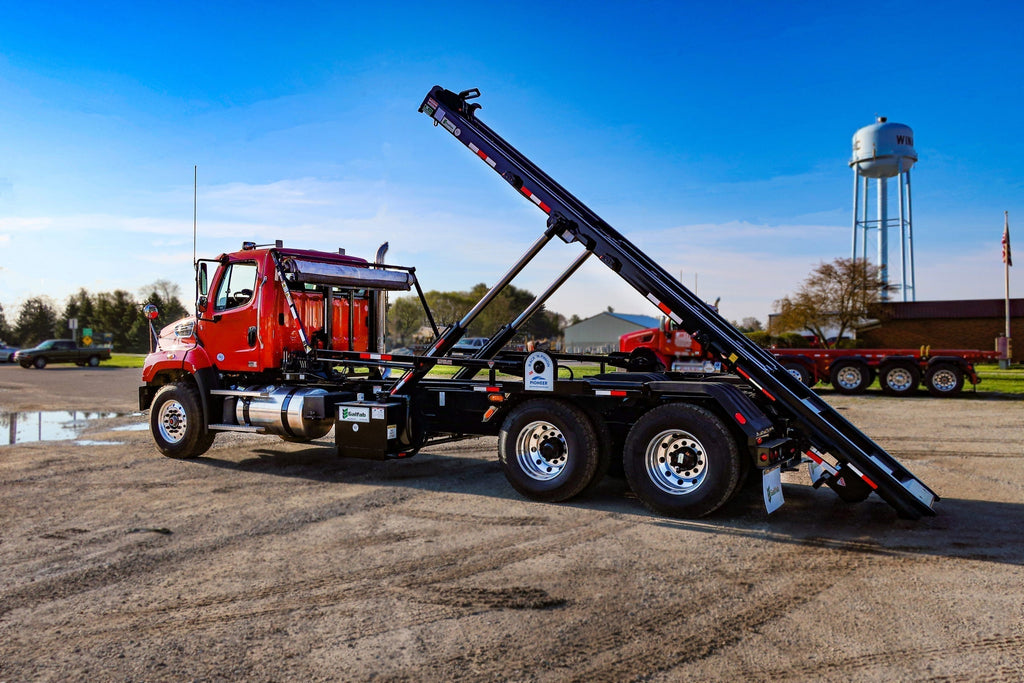

Galfab OR75174T121 Outside Rail Hoist
Overview

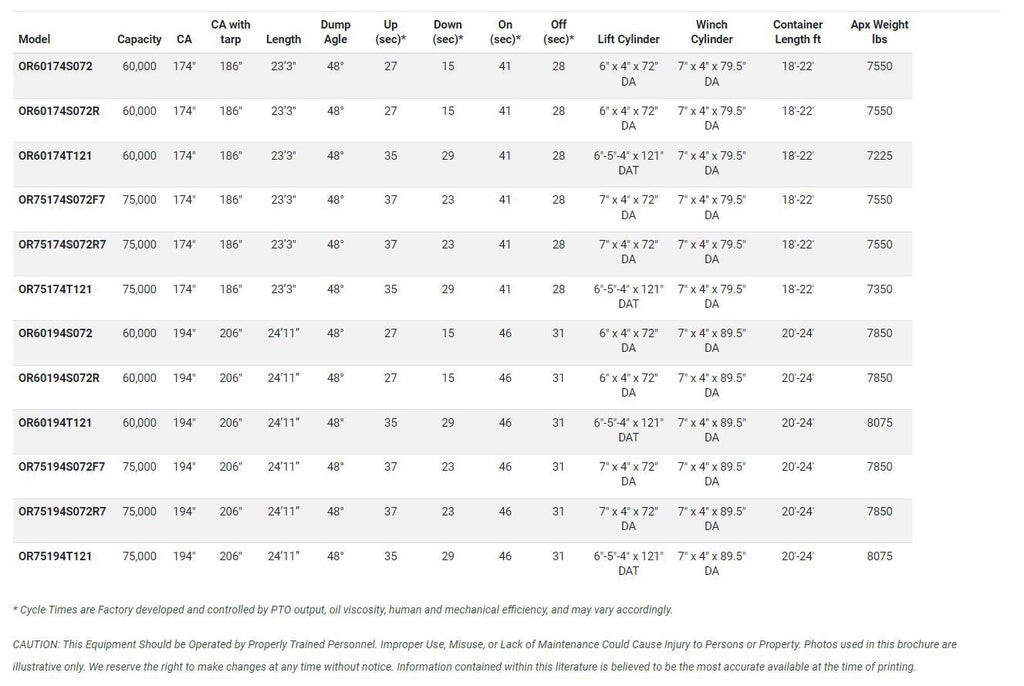

The Galfab OR75174T121 is an Outside Rail Hoist with a 48 degree dump angle. Its factory developed cycle times are 35 seconds up, 29 seconds down, 41 seconds on and 28 seconds off, and actual times may vary. The winch cylinder is 7" x 4" x 79.5" DA.
Key Features
- 6 outside rollers, supported inboard and outboard
- Interchangeable 10" vertical and horizontal sheaves
- 2 1/2" diameter lift cylinder shafts and a 2 1/2" diameter rear hinge
- 1" spring loaded container locks
- 48 gallon oil reservoir with sight and temperature gauge, and 25 micron filtration
- Inside and outside controls
- 7/8" cable with swivel eye hook
- Hoist up alarm and backup alarm
Options & Configurations
- Behind cab and oversize oil tanks
- Tool boxes
- Auxiliary stops
- Poly or steel fenders
- Aluminum fenders
- Tarping systems
- "The Hooker" hold on system
- Ratchet tie down straps
- Pintle hook
- Front mount pump
- PTO
- Drop shaft
- On board scale systems
- Work lights
- Rear view camera systems
- Integrated hydraulics, when the tarp system is hydraulic
