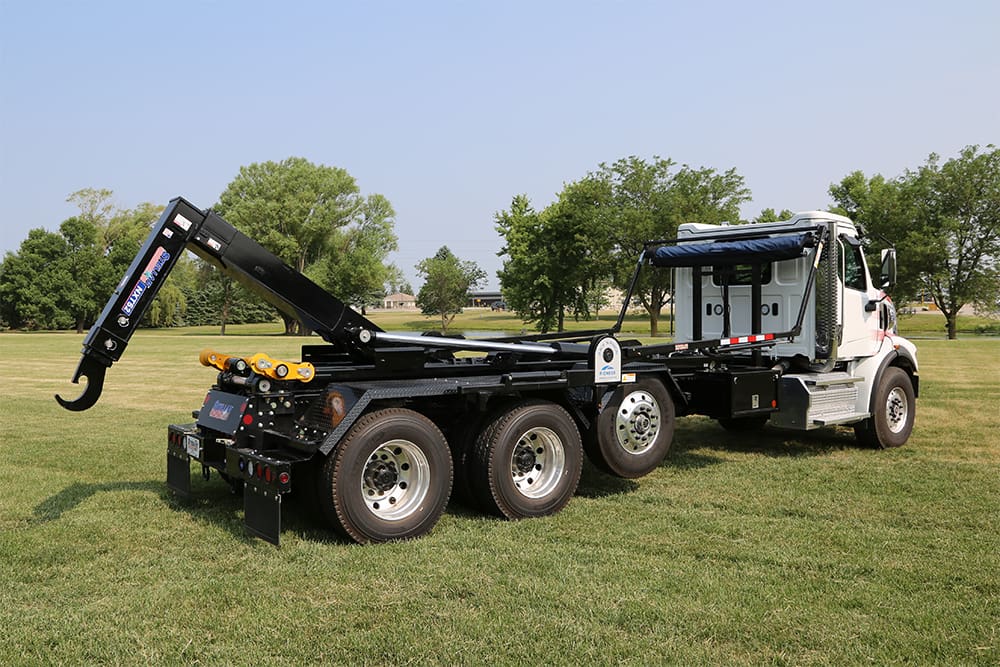

Overview

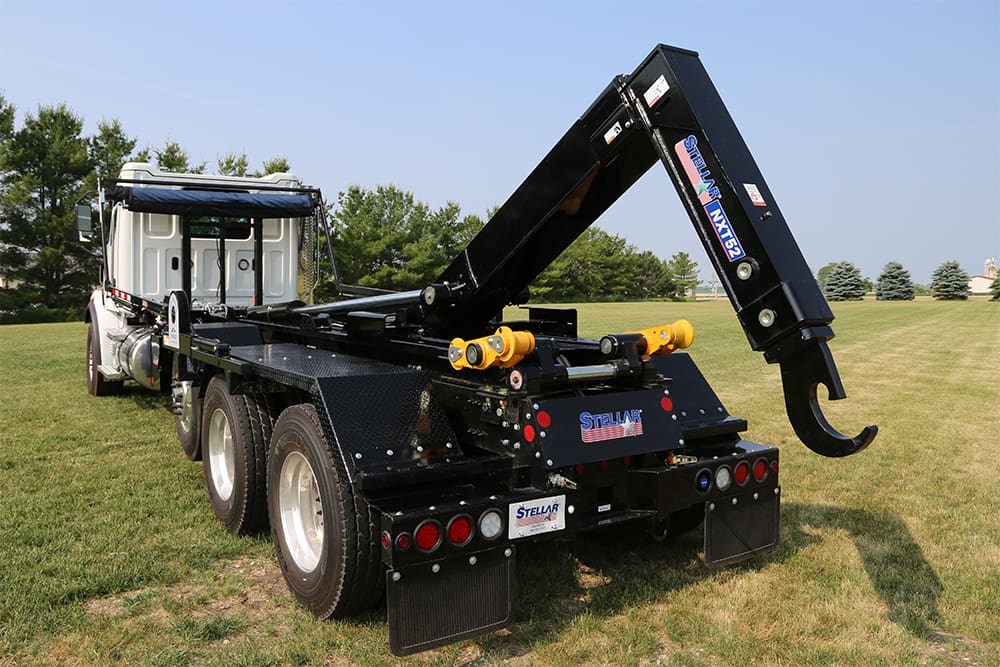

The Stellar NXT52 is a telescopic hooklift with a 52,000-lb capacity. Stellar lists it for 16' to 22' bodies on chassis with 174" to 214" cab-to-trunnion, with a 10.5" lost load height. It is built in a short version (NXT52S) and a long version (NXT52L).

Key Features

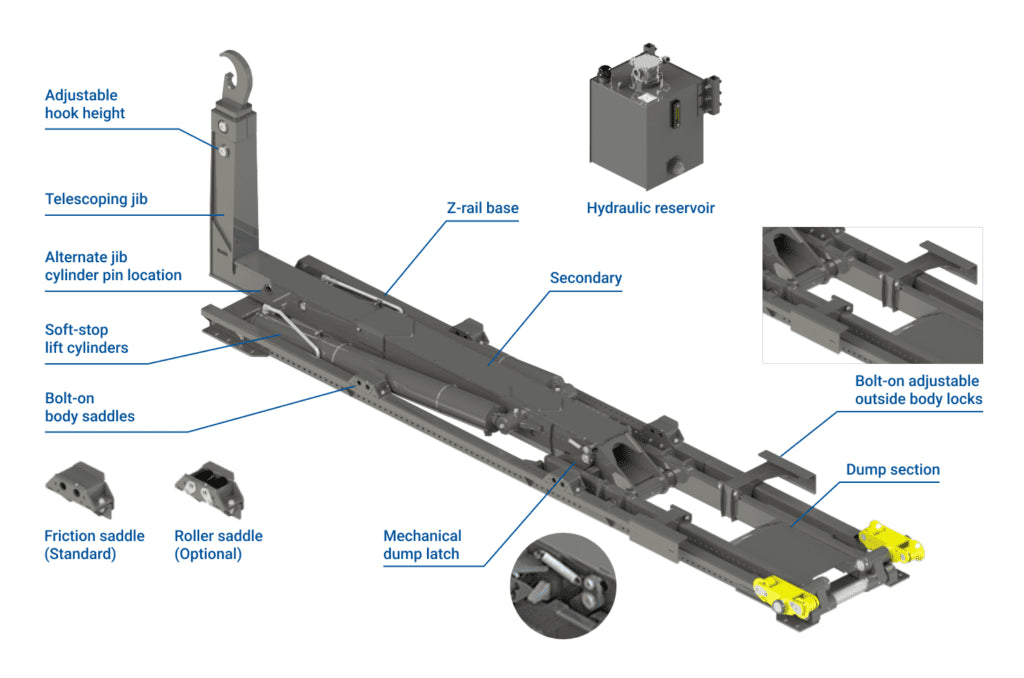

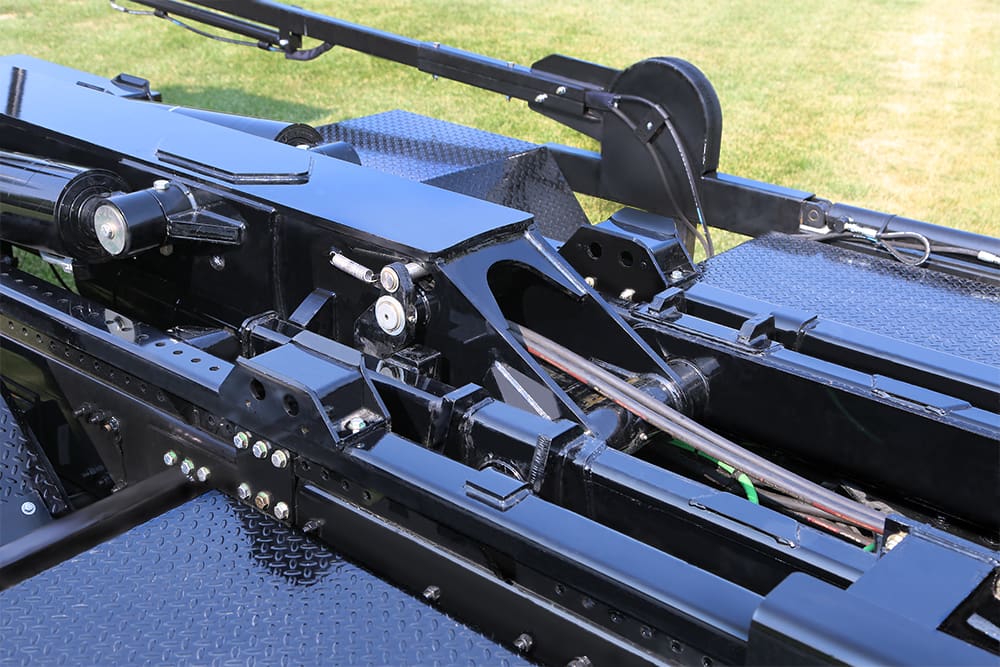

  • Pre-drilled Z-rail base for chassis mounting and body saddle placement
  • Multiplate telescopic jib
  • Movable jib cylinder pin position for handling shorter bodies
  • Bolt-on adjustable body locks
  • Compact secondary design with a 10.5" lost load height; accepts subframe heights down to 6"
  • Lift cylinders with an integrated soft-stop that sets the body down on the body saddles
  • Speed enhancement on the lift cylinders, rated by Stellar at up to 75% less cycle time
  • 25-gallon hydraulic reservoir on a universal bracket for placement on the side of the chassis
  • Integrated replaceable wear pads
  • Counterbalance valves on every cylinder against cylinder collapse if a hose fails
  • PTO control module in the hydraulic pump kit, which cuts out the PTO past a set rpm

Options & Configurations

  • Short version NXT52S for 16' to 20' bodies and long version NXT52L for 16' to 22' bodies

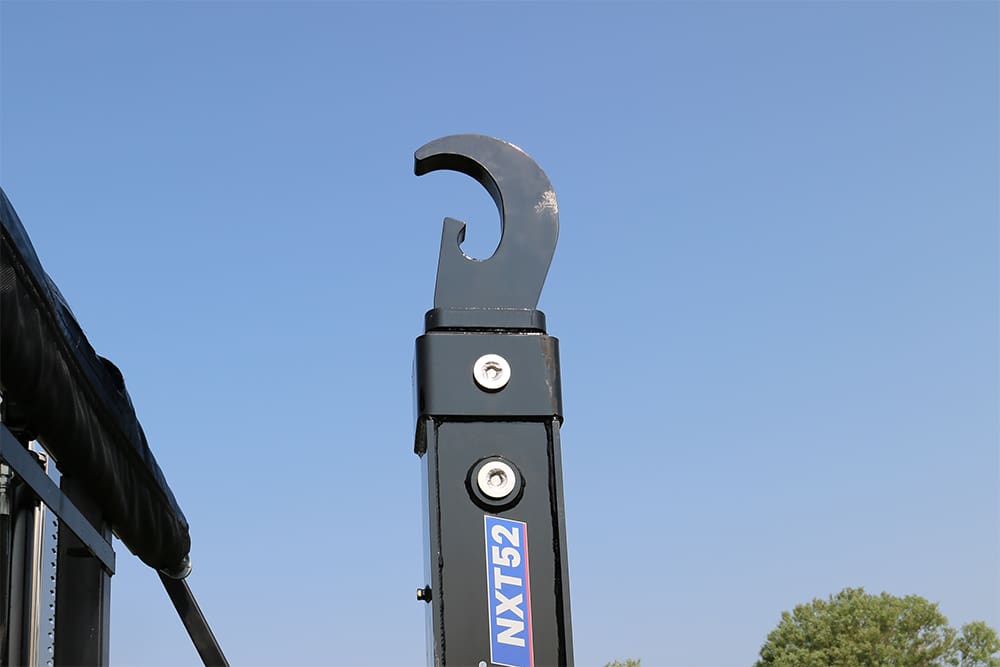

  • Hook inserts adjusted by hand or hydraulically
  • Optional power beyond port on the monoblock main valve
  • Zinc-plated carbon steel pins as standard, with an upgrade to type 17-4 stainless pins

Specifications

  • Capacity: 52,000 lbs
  • Dump capacity: 52,000 lbs
  • Body lengths, short version: 16' to 20'
  • Body lengths, long version: 16' to 22'
  • Min. truck GVWR: 54,000 lbs

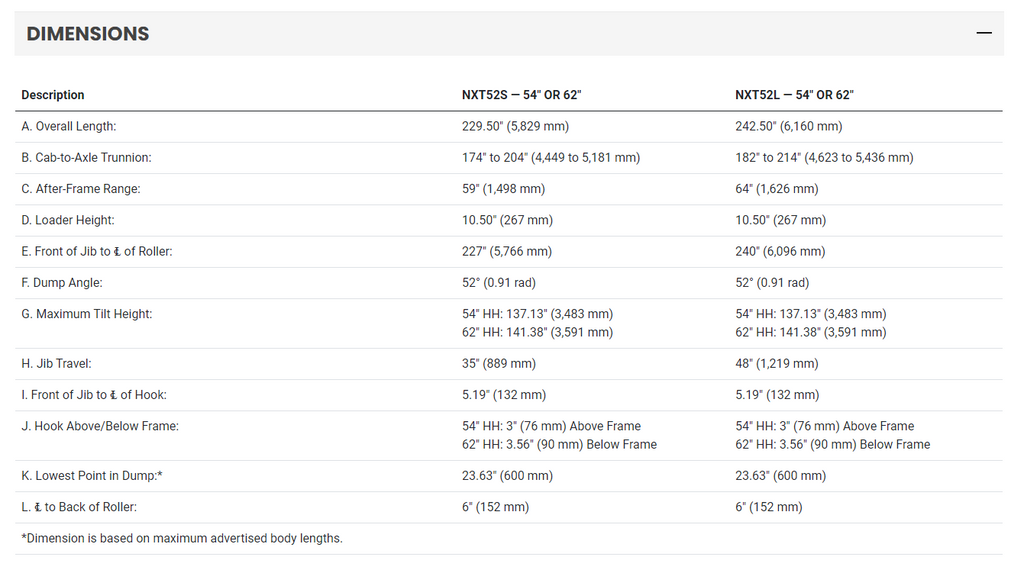

  • Cab-to-axle trunnion, NXT52S: 174" to 204" (4,449 to 5,181 mm)
  • Cab-to-axle trunnion, NXT52L: 182" to 214" (4,623 to 5,436 mm)
  • Overall length, NXT52S: 229.50" (5,829 mm)
  • Overall length, NXT52L: 242.50" (6,160 mm)
  • Lost load height: 10.5"

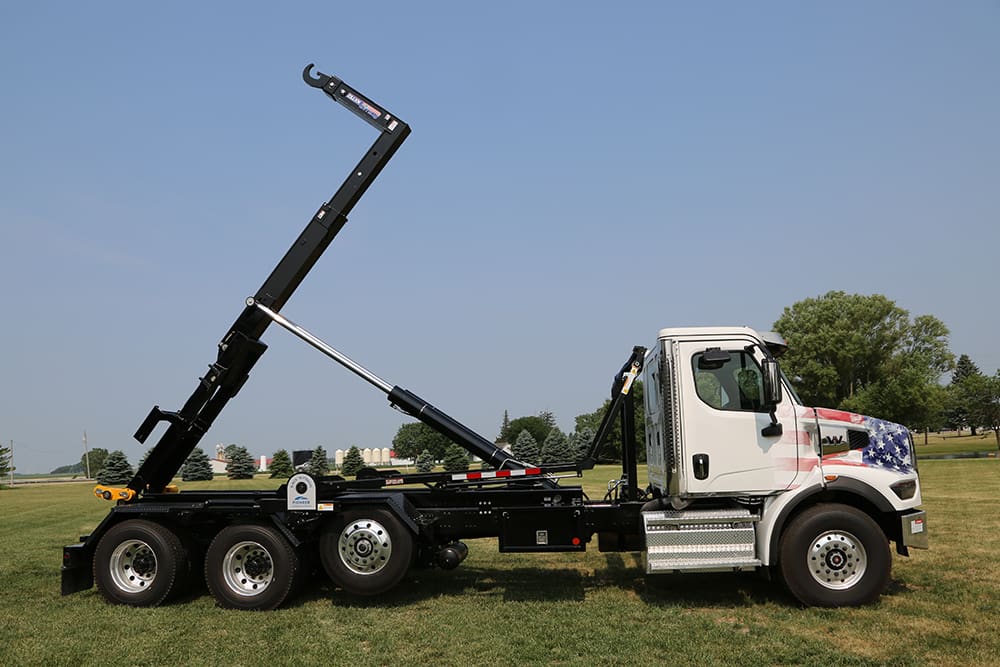

  • Dump angle: 52 degrees (0.91 rad)
  • Jib travel, NXT52S: 35" (889 mm)
  • Jib travel, NXT52L: 48" (1,219 mm)

Hydraulics

  • Maximum hydraulic flow: 24 gpm (90.8 lpm)
  • Operating pressure: 4,500 psi (310 bar)
  • Reservoir: 25 gallons

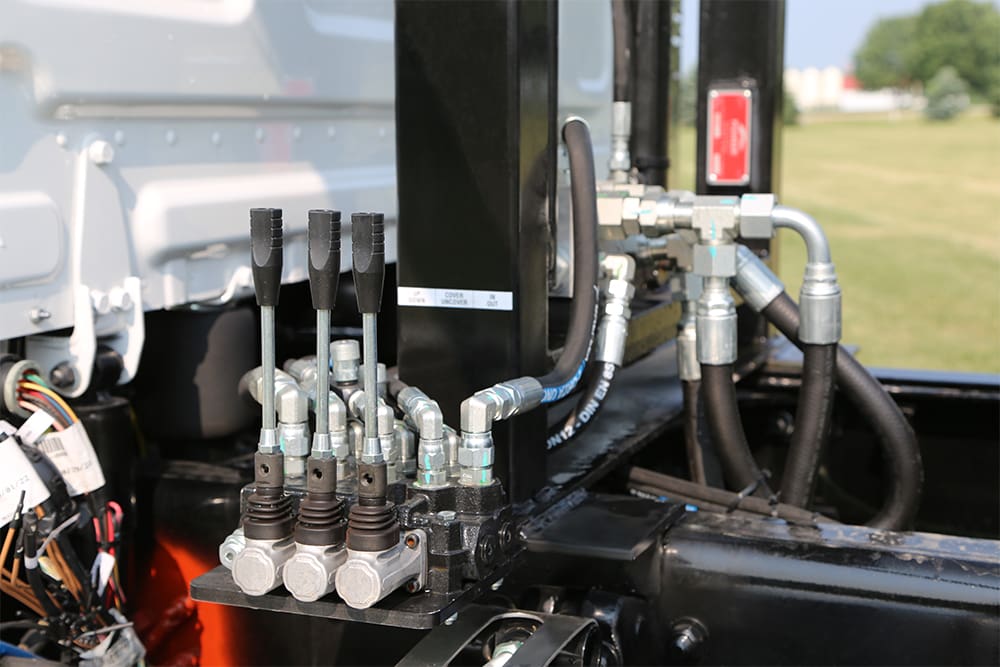

  • Valve bank: monoblock main valve and main pressure relief valve; power beyond port optional
  • Cycle time, tilt/dump extend: 25 seconds
  • Cycle time, tilt/dump retract: 70 seconds
  • Cycle time, jib extend: 11 seconds
  • Cycle time, jib retract: 10 seconds
  • Cycle time basis: 24 gpm of oil flow

Construction

  • Bushings: greasable, at all pivot points
  • Pins: zinc-plated carbon steel as standard; type 17-4 stainless optional
  • Finish: two-part polyurethane enamel on all weldments, applied before assembly
