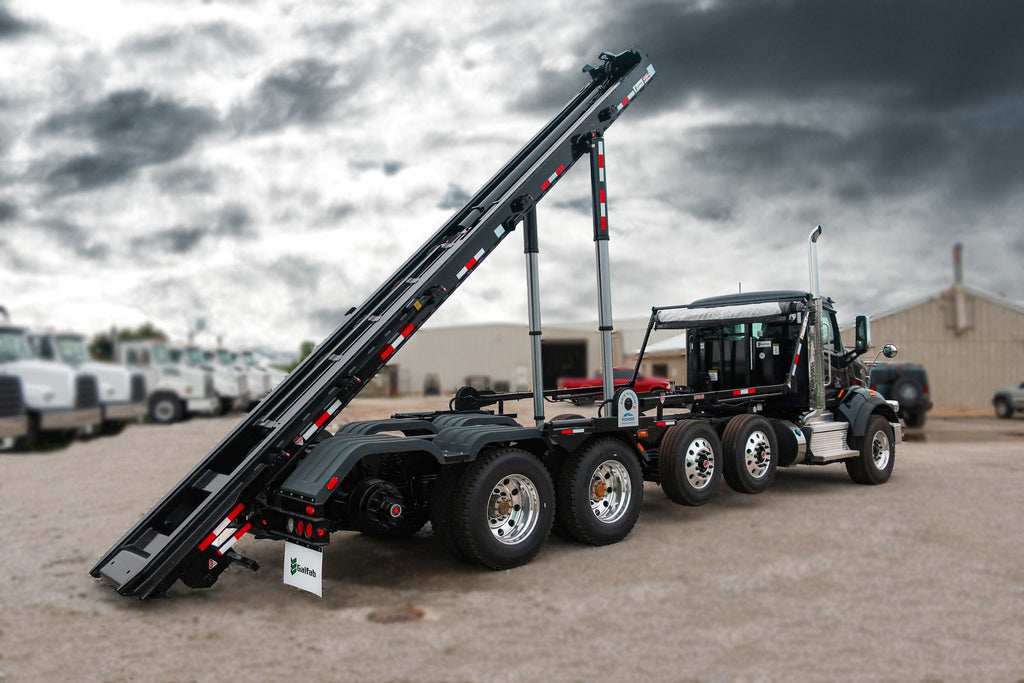

Galfab roll-off hoist raised on a black truck, passenger side rear three quarter view
Galfab roll-off hoist raised on a black truck, passenger side rear three quarter view
Galfab

Galfab NOR75194T121 HD Outside Rail Hoist

description specs

Overview

The Galfab NOR75194T121 is an HD Outside Rail Hoist with a 48 degree dump angle. Its factory developed cycle times are 35 seconds up, 29 seconds down, 46 seconds on and 31 seconds off, and actual times may vary. The winch cylinder is 7" x 4" x 89.5" DA. The hoist has no subframe, and container long sill supports are standard.

Key Features

  • 10" x 4" x 1/2" main frame tube
  • 1/2" x 3 1/2" wear strip on top and a 1/2" x 4" stiffener on the bottom of the mainframe
  • 6 outside rollers, supported inboard and outboard
  • 12" vertical sheave with 10" horizontal sheaves
  • 48 gallon oil reservoir with sight and temperature gauge, and 25 micron filtration
  • Inside and outside controls
  • 7/8" cable with swivel eye hook
  • Hoist up alarm and backup alarm

Options & Configurations

  • "The Hooker" hold on system
  • Auxiliary stops
  • Work lights
  • Behind cab and oversize oil tanks
  • Tool boxes
  • Poly or steel fenders
  • Tarping systems
  • Ratchet tie down straps
  • Pintle hook
  • Front mount pump
  • PTO
  • Drop shaft
  • On-board scale systems
  • Rear view camera systems

Applications

Applications include hauling scrap, off-road or oil fields.

Related Parts & Accessories

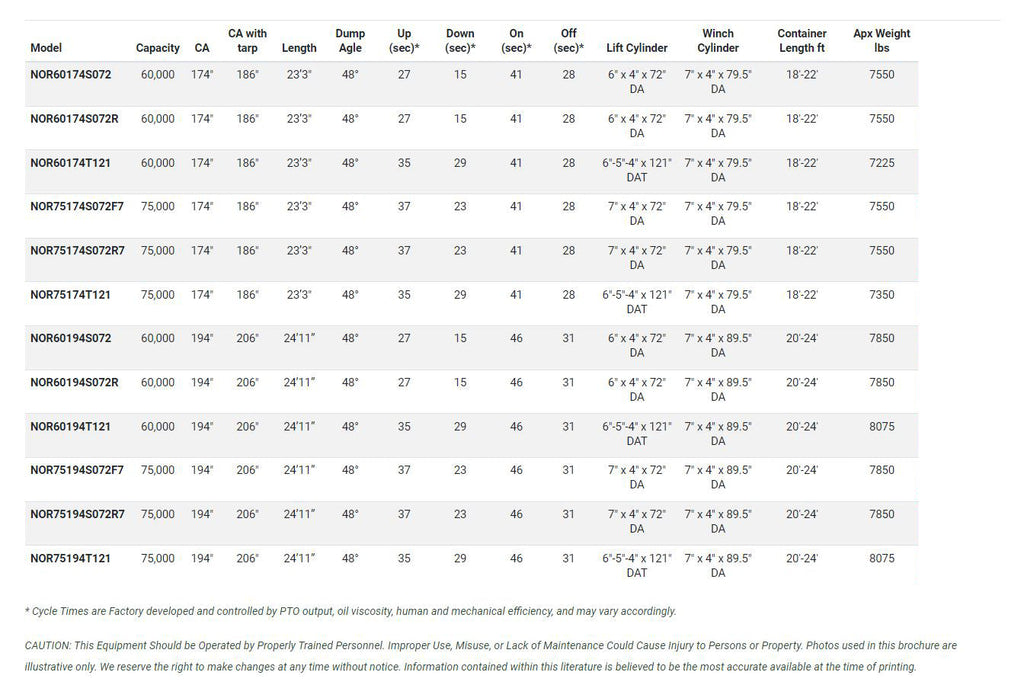

Specifications

  • Dump angle: 48 degrees
  • Cycle time, up: 35 sec
  • Cycle time, down: 29 sec
  • Cycle time, on: 46 sec
  • Cycle time, off: 31 sec
  • Cycle times: factory developed and may vary
  • Winch cylinder: 7" x 4" x 89.5" DA

Features

  • 10" x 4" x 1/2" main frame tube
  • 1/2" x 3 1/2" wear strip on top
  • 1/2" x 4" stiffener on the bottom of the mainframe
  • No subframe
  • All working points greaseable
  • 2 1/2" diameter rear hinge
  • Pintle ready apron
  • 1" spring loaded container locks
  • 2 1/2" diameter lift cylinder shafts
  • 12" diameter vertical sheave and 10" horizontal sheaves
  • 3/8" x 3" winch cylinder rod covers
  • 6 inboard and outboard supported outside rollers
  • Outboard supported side rollers
  • Greasable roller shaft that comes out after removing two bolts
  • Mainframe wear strips
  • Container long sill supports on rear of hoist mainframe
  • 48 gallon oil reservoir with sight and temperature gauge
  • 25 micron filtration
  • Inside and outside controls
  • LED lighting system
  • 7/8" cable with swivel eye hook
  • Hoist up alarm
  • Backup alarm
  • Auto fold bumper, folds forward

Options

  • "The Hooker" hold on system
  • Auxiliary stops
  • Work lights
  • Behind cab and oversize oil tanks
  • Tool boxes
  • Poly or steel fenders
  • Tarping systems
  • Ratchet tie down straps
  • Pintle hook
  • Front mount pump
  • PTO
  • Drop shaft
  • On-board scale systems
  • Rear view camera systems
