Galfab NOR75174T121 HD Outside Rail Hoist
Overview

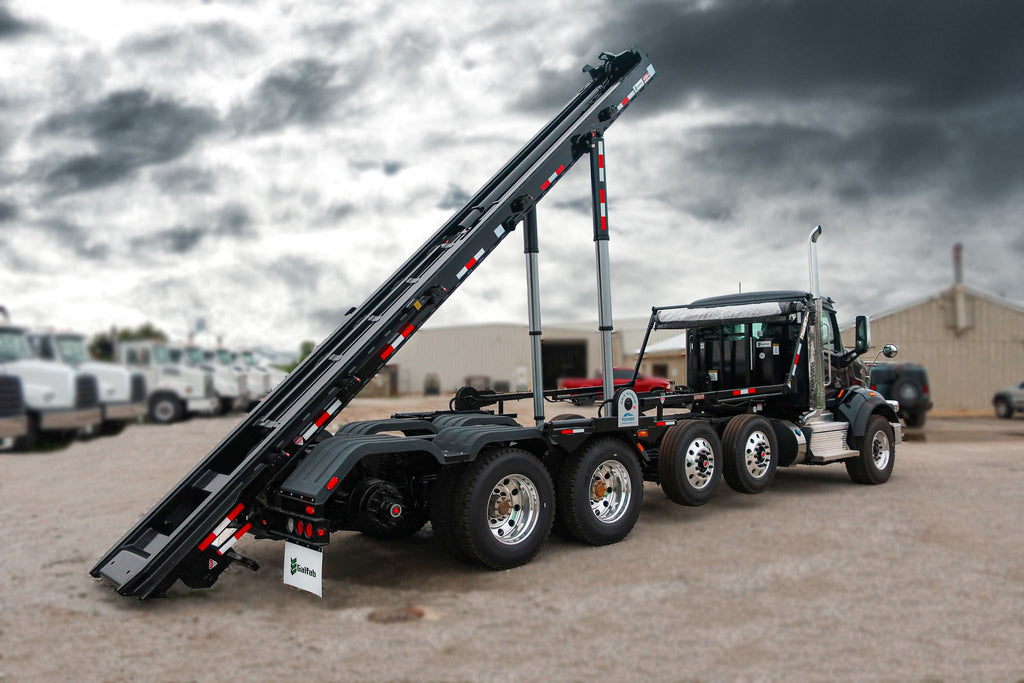

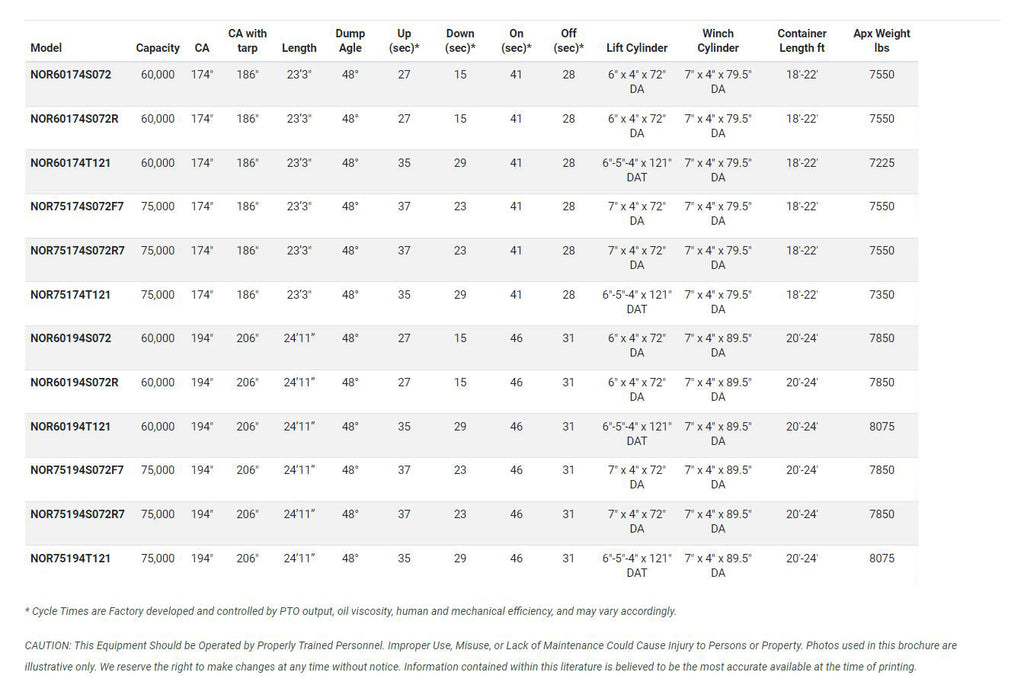

The Galfab NOR75174T121 is an HD Outside Rail Hoist with a 48 degree dump angle. Its factory developed cycle times are 35 seconds up, 29 seconds down, 41 seconds on and 28 seconds off, and actual times may vary. The winch cylinder is 7" x 4" x 79.5" DA. The hoist has no subframe, and container long sill supports are standard.
Key Features
- 10" x 4" x 1/2" main frame tube
- 1/2" x 3 1/2" wear strip on top and a 1/2" x 4" stiffener on the bottom of the mainframe
- 6 outside rollers, supported inboard and outboard
- 12" vertical sheave with 10" horizontal sheaves
- 48 gallon oil reservoir with sight and temperature gauge, and 25 micron filtration
- Inside and outside controls
- 7/8" cable with swivel eye hook
- Hoist up alarm and backup alarm
Options & Configurations
- "The Hooker" hold on system
- Auxiliary stops
- Work lights
- Behind cab and oversize oil tanks
- Tool boxes
- Poly or steel fenders
- Tarping systems
- Ratchet tie down straps
- Pintle hook
- Front mount pump
- PTO
- Drop shaft
- On-board scale systems
- Rear view camera systems
Applications
Applications include hauling scrap, off-road or oil fields.
