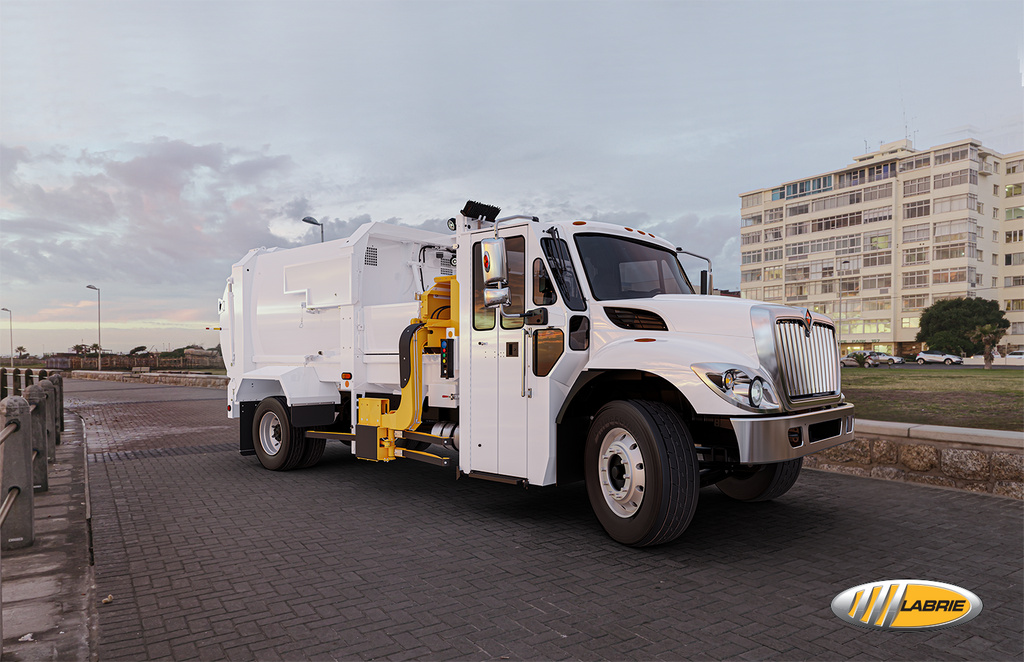

White side loader refuse truck with yellow arm on a paved street
White side loader refuse truck with yellow arm on a paved street
Labrie

Labrie Minimax Side Loader

description specs

Overview

The Labrie Minimax is a side loader garbage truck body offered in 10 yd³ to 14 yd³ body sizes. It has a 1.5 yd³ hopper and compacts up to 900 lbs/yd³.

Its Helping-Hand arm has a 7 foot reach and a 400 lbs lift capacity.

Key Features

  • Enclosed Helping-Hand arm that dumps directly into the packer area
  • Proportional joystick arm controls, electric over hydraulic
  • Set up for one-person operation
  • Stand-up drive positions on either or both sides of the truck
  • Full-eject packer blade driven by a single telescopic cylinder
  • Single piece body walls
  • AR steel hopper liners for abrasion resistance
  • Tailgate auto-latch that closes straight down to protect the rubber seal

Options & Configurations

  • Crusher panel

Applications

  • Automated, semi-automated or manual collection
  • Missed pick-ups, parks and recreation areas, and airports

Related Parts & Accessories

Capacity

  • Body sizes: 10 yd³ to 14 yd³
  • Hopper size (yd³): 1.5
  • Compaction ratio (lbs/yd³): 900

Body

  • Tailgate sizes: 0 yd³ to 4 yd³, based on body capacity
  • Loading height: 20.5" above frame
  • Body trough: 1/4" AR450 175,000psi
  • Body floor: 1/4" 100QT 100,000psi
  • Body sides (lower): 3/16" 100QT 100,000psi
  • Body sides (upper): 12ga A1011 80,000psi
  • Body roof: 12ga A1011 80,000psi
  • Tailgate: 12ga A715 80,000psi
  • Tailgate open: 21 sec @ 700 rpm
  • Tailgate close (with Safety Flow limiter): 26 sec @ 700 rpm

Packer

  • Packer width: 62-3/4"
  • Packer height: 17"
  • Packer stroke: 38"
  • Packer complete cycle: 12 sec
  • Packer panel face plate: 3/16" AR450 175,000psi
  • Crusher panel up (optional crusher panel): 4 sec @ 700 rpm
  • Crusher panel down (optional crusher panel): 3 sec @ 700 rpm

Arm (automated units)

  • Arm lift capacity: 400 lbs
  • Arm reach: 84"
  • Arm swing out: 27"
  • Arm in: 3.0 to 3.5 sec @ 1200 rpm
  • Arm out: 5.0 to 5.5 sec @ 1200 rpm
  • Arm up: 3.0 to 3.5 sec @ 1200 rpm
  • Arm down: 3.0 to 3.5 sec @ 1200 rpm
  • Grabber open: 1.3 to 1.8 sec @ 1200 rpm
  • Grabber close: 1.0 to 1.5 sec @ 1200 rpm

Hydraulics

  • Pump capacity (manual): 20 gpm @ 1200 rpm
  • Pump capacity (automated), body: 20 gpm @ 1200 rpm
  • Pump capacity (automated), arm: 14 gpm @ 1200 rpm
  • Max. operating pressure: 2,500 psi
  • Oil reservoir: 51 gal

Controls

  • Arm controls: Proportional joystick, electric over hydraulic

Chassis

  • GVWR: under 33,000 lbs

Dimensions & Weights

  • Overall length, tailgate closed (in.), 10 yd³ / 12 yd³ / 14 yd³ bodies: 201 / 216 / 238
  • Overall width (in.): 102
  • Overall height above frame, tailgate closed (in.): 78

Options

  • Crusher panel
