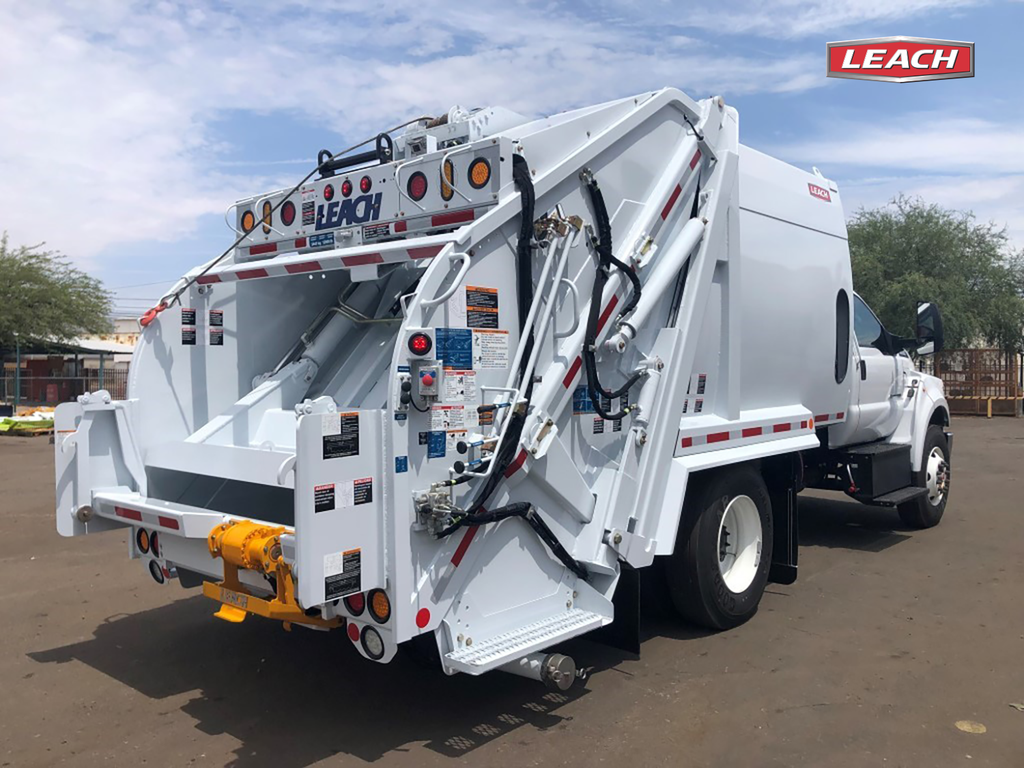

The Leach Mini Rear Loader is a compact and lightweight rear loader designed for tight routes and highly maneuverable residential collection. Engineered for efficiency in confined areas, the Mini Rear delivers reliable compaction performance in a smaller footprint without sacrificing durability.

Available in body sizes from 8 to 13 cubic yards, the Mini Rear features a low profile design, fast cycle times, and up to 800 pounds per cubic yard compaction. Select body configurations can be mounted on non CDL chassis, making this unit an ideal solution for neighborhoods, alleys, and routes with access limitations.

Built with single piece body walls, a flat floor design, and durable wear components, the Leach Mini Rear Loader is designed for long service life, easy operation, and reduced maintenance in demanding residential applications.

  • Available body sizes from 8 to 13 cubic yards
  • Hopper capacity of 1.5 to 2.2 cubic yards
  • Hopper opening width of 75 to 80 inches
  • Hopper opening height of 44 to 58 inches
  • Loading sill height from plus 1 inch to minus 2.5 inches relative to chassis frame
  • Compaction rating up to 800 pounds per cubic yard
  • Packer carrier cycle time of 20 to 23 seconds
  • Flat floor body design
  • Single piece body walls for increased strength
  • Hydraulic pump capacity of 13 to 22 GPM at 1200 RPM
  • Maximum hydraulic operating pressure of 2500 PSI
  • Hydraulic oil reservoir capacity of 30 gallons
  • 8 and 10 cubic yard bodies available for non CDL chassis applications
