Application range from 2″ up to 16″

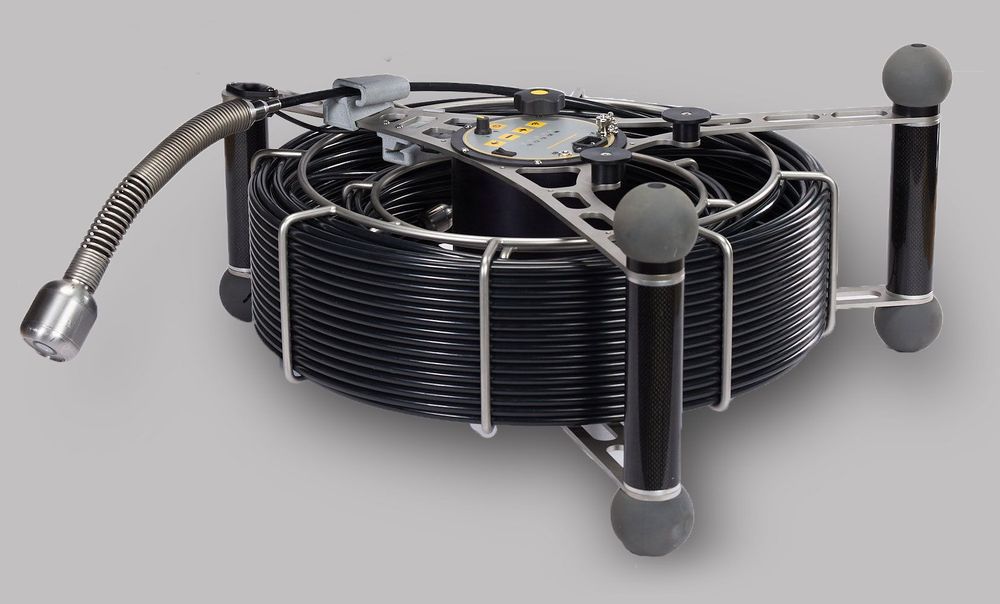

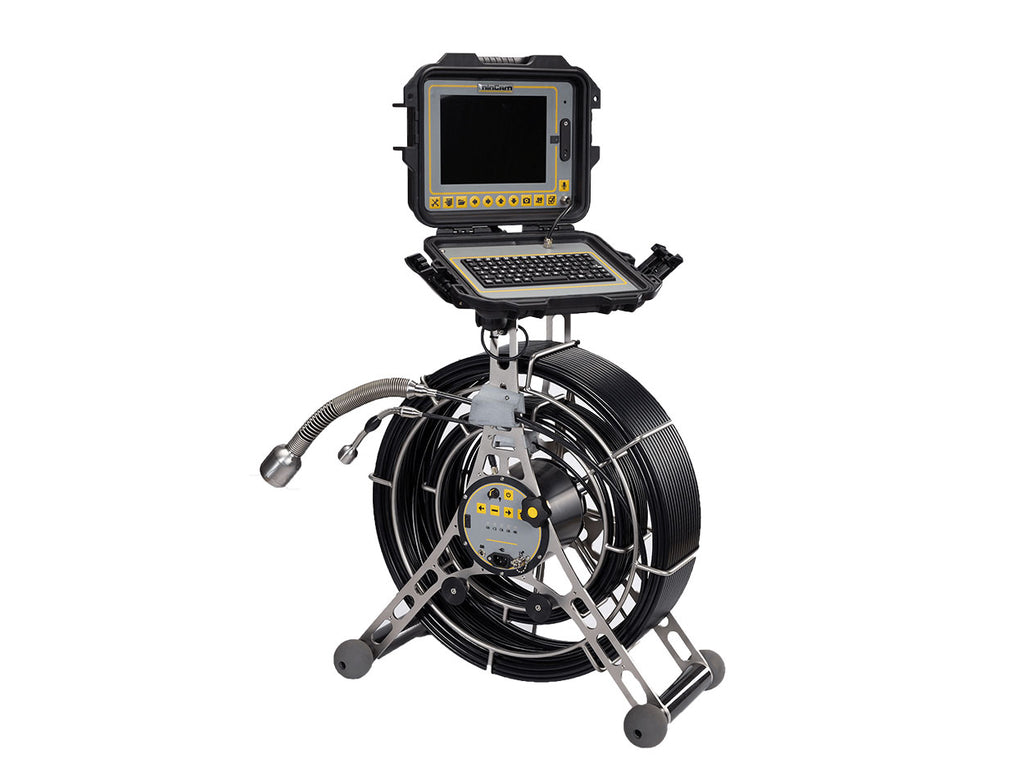

The mC50 Duo dual-reel system comes with two cameras attached to two separate cable reels built into one complete maintenance-free CCTV push system. Includes 512 Hz sonde standard, 33 kHz available for special order.

2-in-1 dual-reel sewer, water & drain video pipe inspection system, with outer & inner cable reel, and sunlight-readable monitor.

Included in the system:

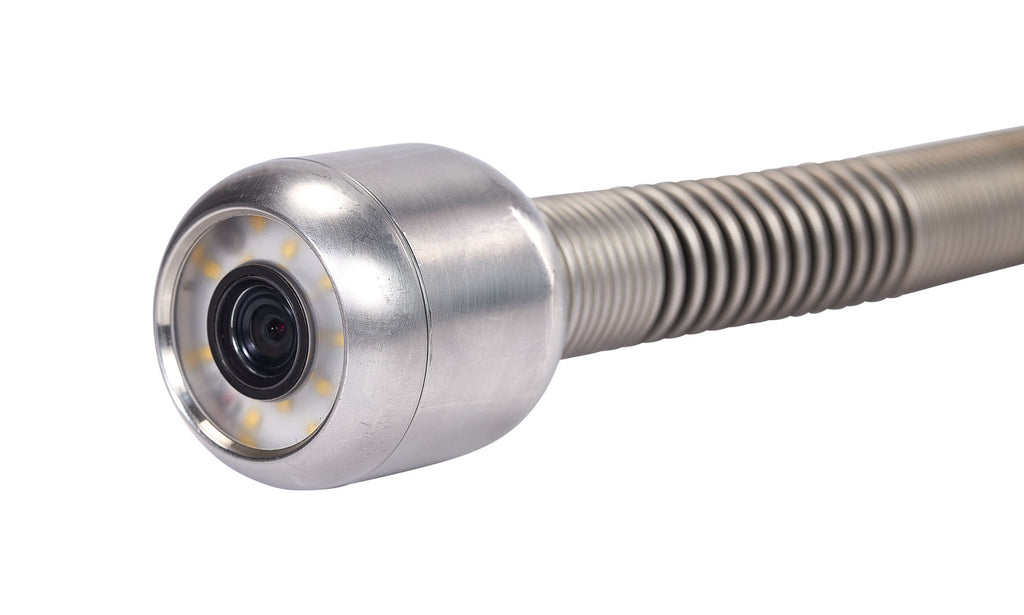

  • KK55SL 2.2″ self-leveling camera + 200 ft. cable on outer reel
  • KK29SL 1.1″ self-leveling camera + 65 ft. cable on inner reel
  • System control unit with 2 hours battery life

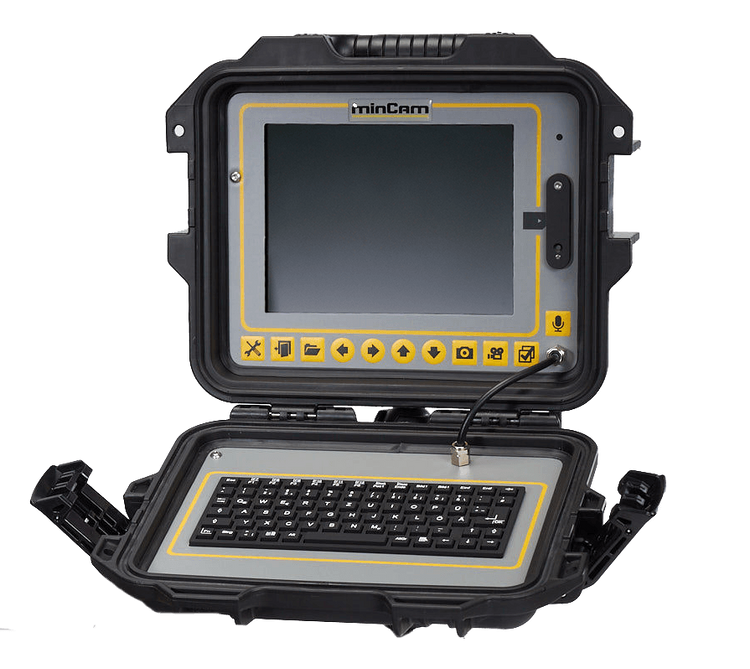

  • 8.4″ monitor with SD card recording
  • Accessory case with centering skids up to 10″
  • Outer Cable: 200 ft. (60m) of 9.2mm fiberglass push cable (300 ft. / 90m available)
  • Inner Cable: 65 ft. (20m) of 6.7mm fiberglass push cable
  • Integrated 512 Hz sonde standard (33 kHz special order)
  • Electronic on-screen distance counter
  • Built-in lithium Ion battery for more than 2 hours operation.
  • Power Supply: 100 – 240V AC adapter / 12V DC Car charger adapter
  • Lightweight stainless steel and carbon reel cage.
  • Mechanical reel brake
  • Control Unit: power switch, variable light regulation, distance counter control, sonde control, battery status LEDs, BNC video out
  • Weight: 47 lbs.; Dimensions: 25″ x 26″ x 12″ (L x H x W)
  • Optional: Second built-in battery
