mc30 DUO
mc30 DUO
mc30 DUO
mc30 DUO
mc30 DUO
mc30 DUO
RauschUSA

mc30 DUO

request price / demo download specs share equipment
description specs

Application range from 0.6" up to 8"

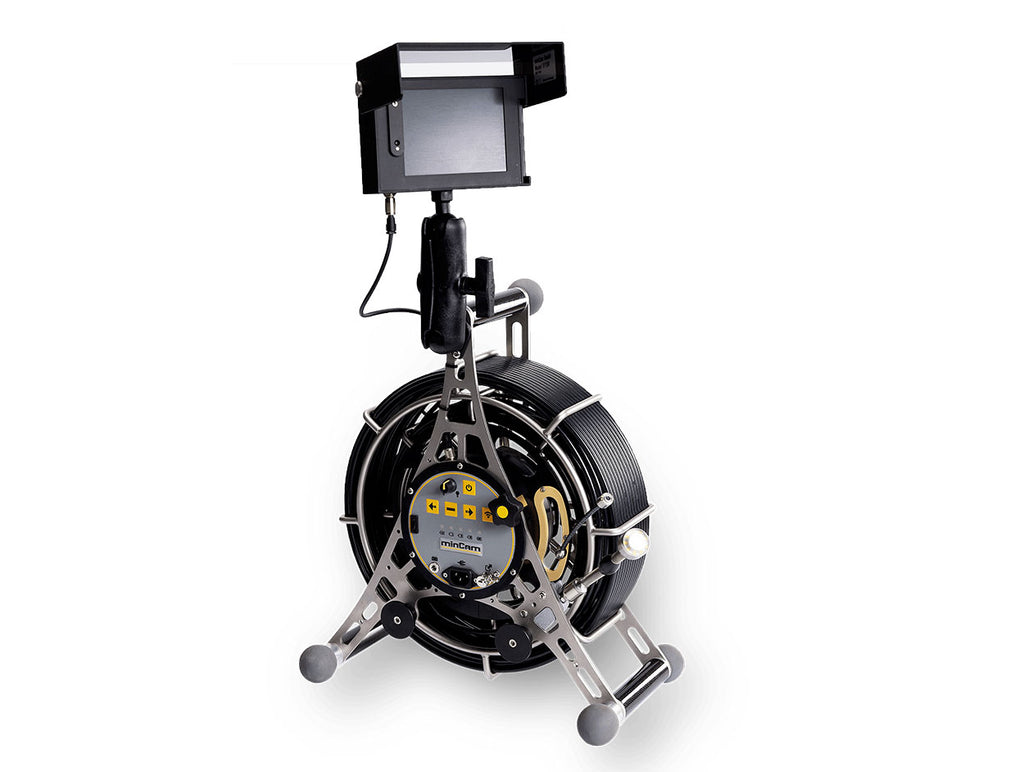

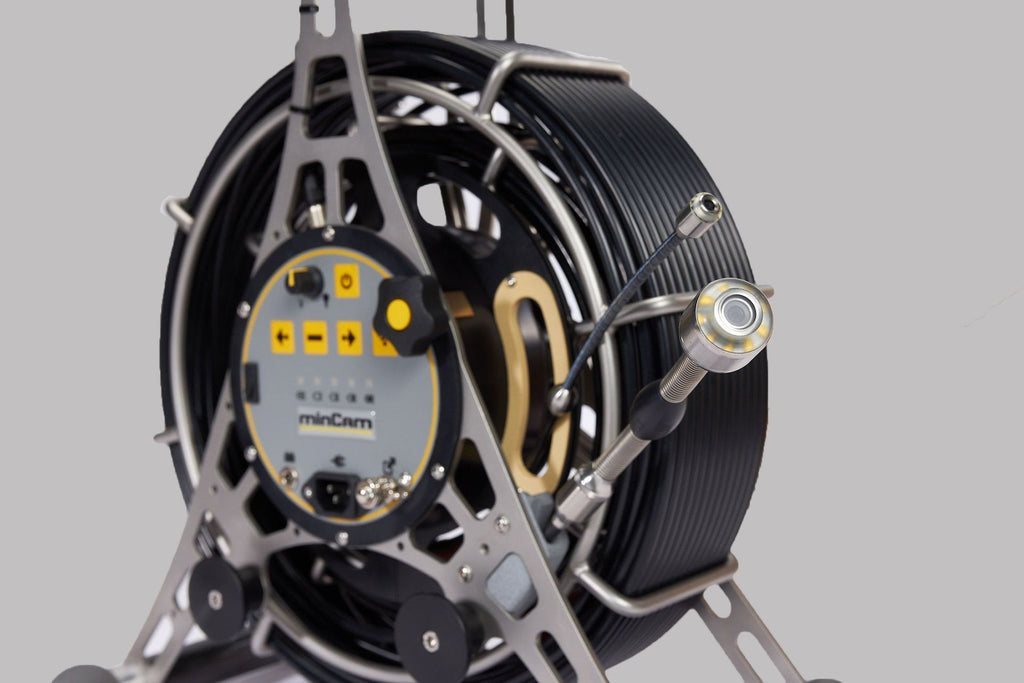

The mc30 Duo dual-reel system comes with two cameras attached to two separate cable reels built into one complete maintenance-free CCTV push system. The inner reel features a flexible push-pull cable with a 1/2" diameter camera for the smallest pipes, and the outer reel features a stiffer push rod and a 1.1" self-leveling camera for larger diameters. Includes 512 Hz sonde standard, 33 kHz available for special order.

2-in-1 sewer, water & drain video pipe inspection camera, cable reel, and monitor.

Included in the system:

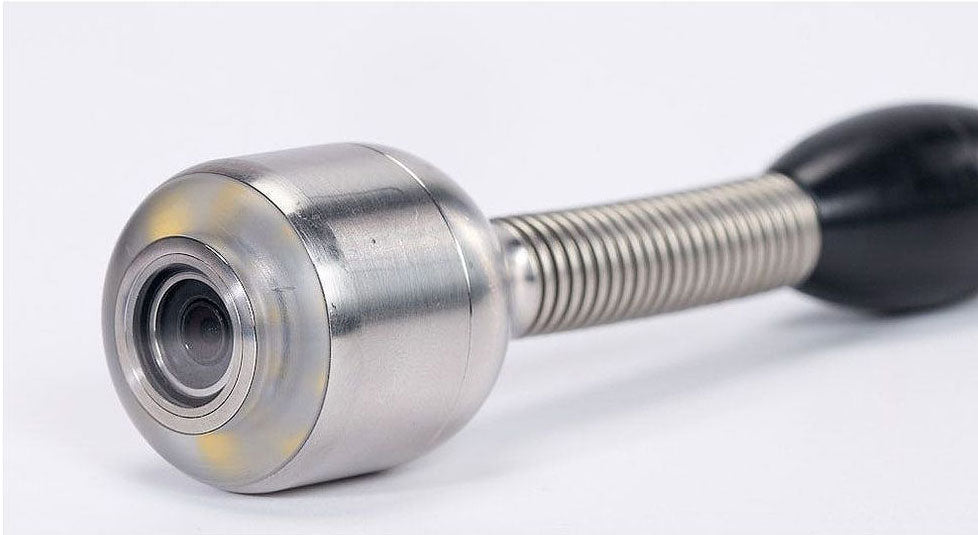

  • KK29SL 1.1" self-leveling camera + 100 ft. cable on the outer reel
  • KK13 0.5" camera + 50 ft. cable on the inner reel
  • System control unit with 2 hours battery life

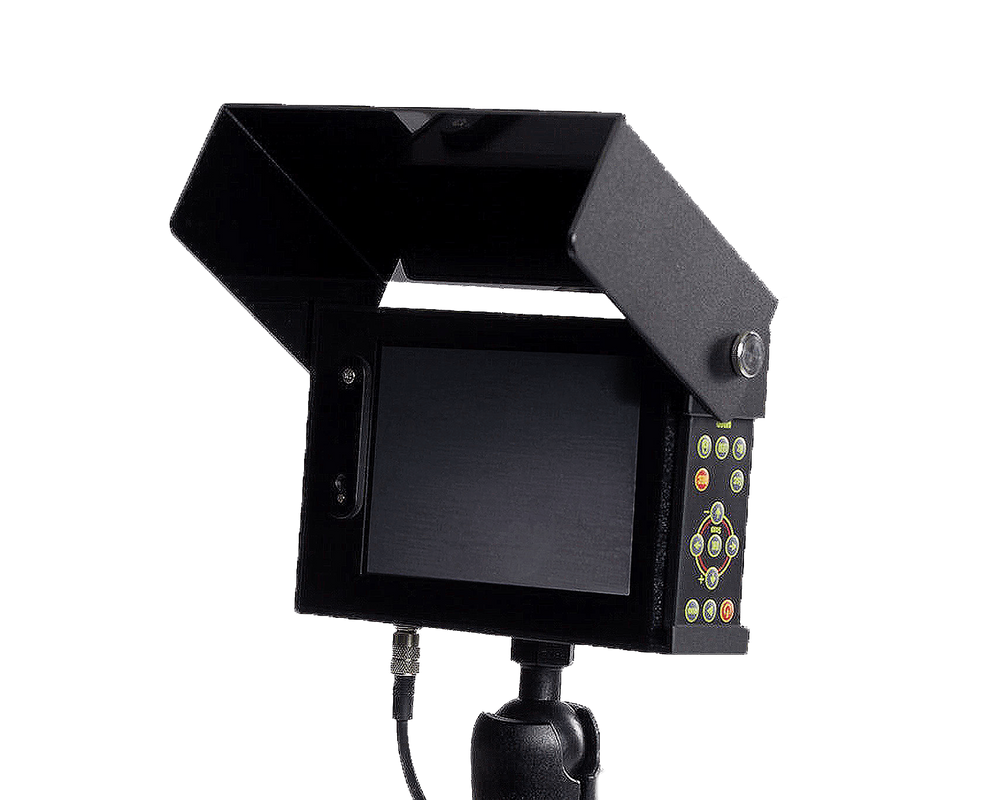

  • 5.6" monitor with SD card recording
  • Accessories with centering skids up to 8"
  • Outer Cable: 100 ft. (30m) of 6.7mm fiberglass push cable (130 ft. / 40m available)
  • Inner Cable: 50 ft. (15m) of push-pull cable
  • Integrated 512 Hz sonde standard (33 kHz special order)
  • Electronic on-screen distance counter
  • Built-in lithium Ion battery for more than 2 hours operation.
  • Power Supply: 100 – 240V AC adapter / 12V DC Car charger adapter
  • Lightweight stainless steel and carbon reel cage.
  • Mechanical reel brake
  • Control Unit: power switch, variable light regulation, distance counter control, sonde control, battery status LEDs, BNC video out
  • Weight: 21 lbs.; Dimensions: 17″ x 19″ x 9″ (L x H x W)
  • Optional: Second built-in battery
