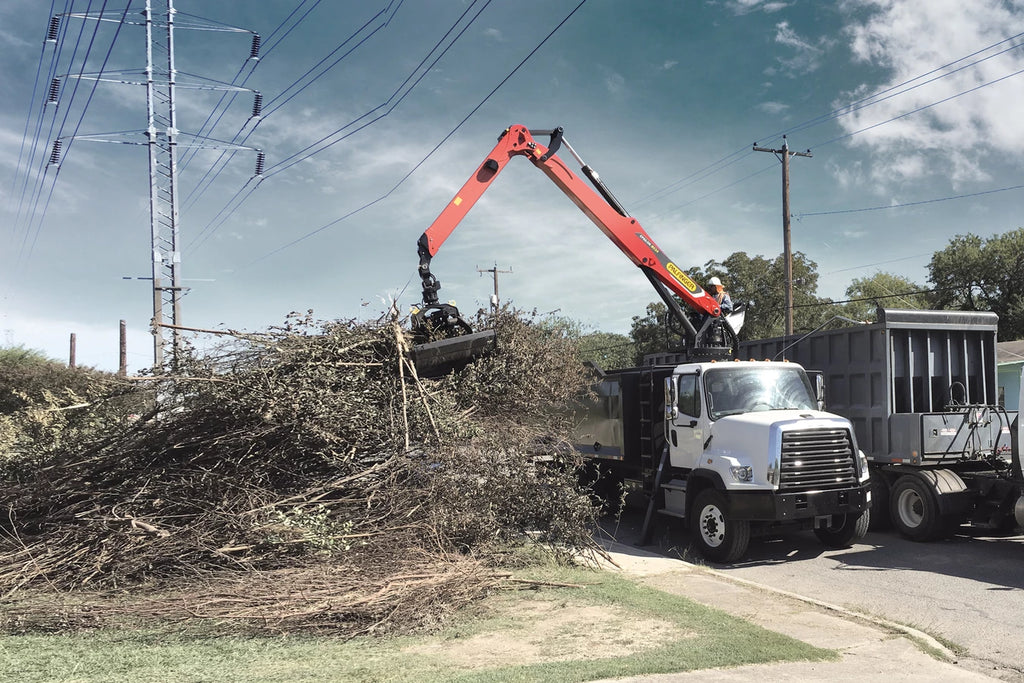

Palfinger Epsilon M13A knuckle boom loader loading brush, front three quarter view, passenger side
Palfinger Epsilon M13A knuckle boom loader loading brush, front three quarter view, passenger side

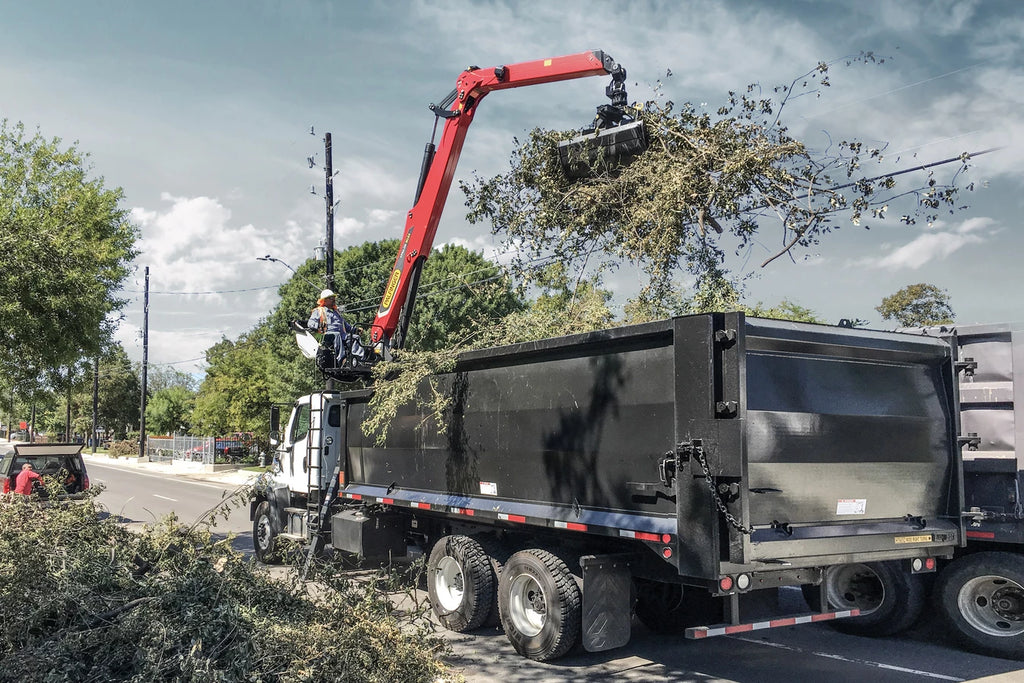

Palfinger Epsilon M13A knuckle boom loader loading tree branches, rear three quarter view, driver side

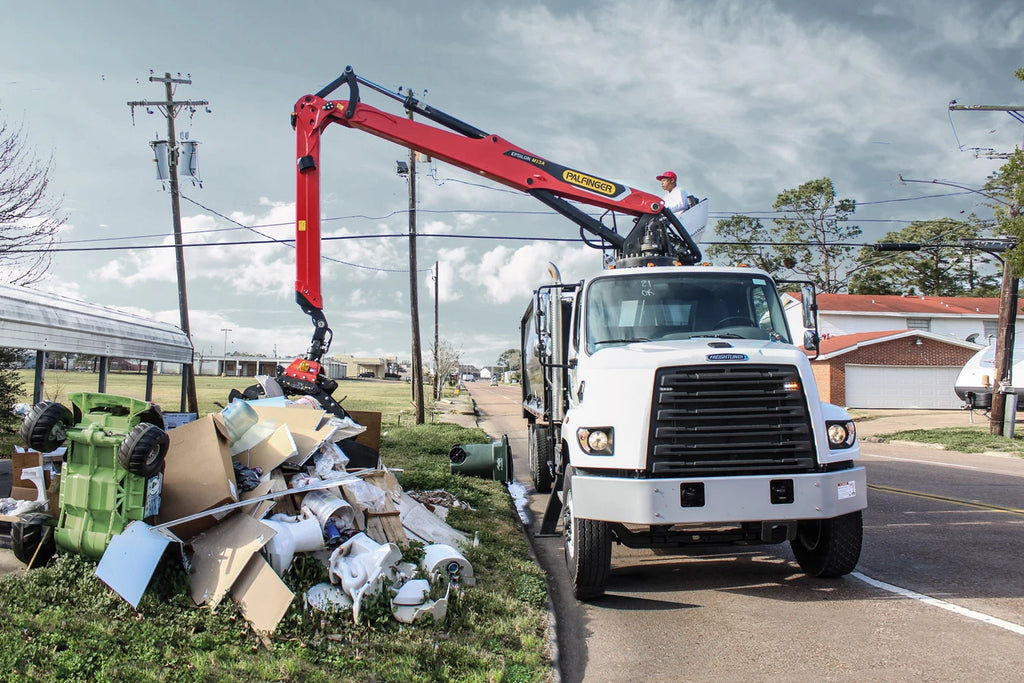

Palfinger Epsilon M13A knuckle boom loader collecting curbside bulky waste, front view

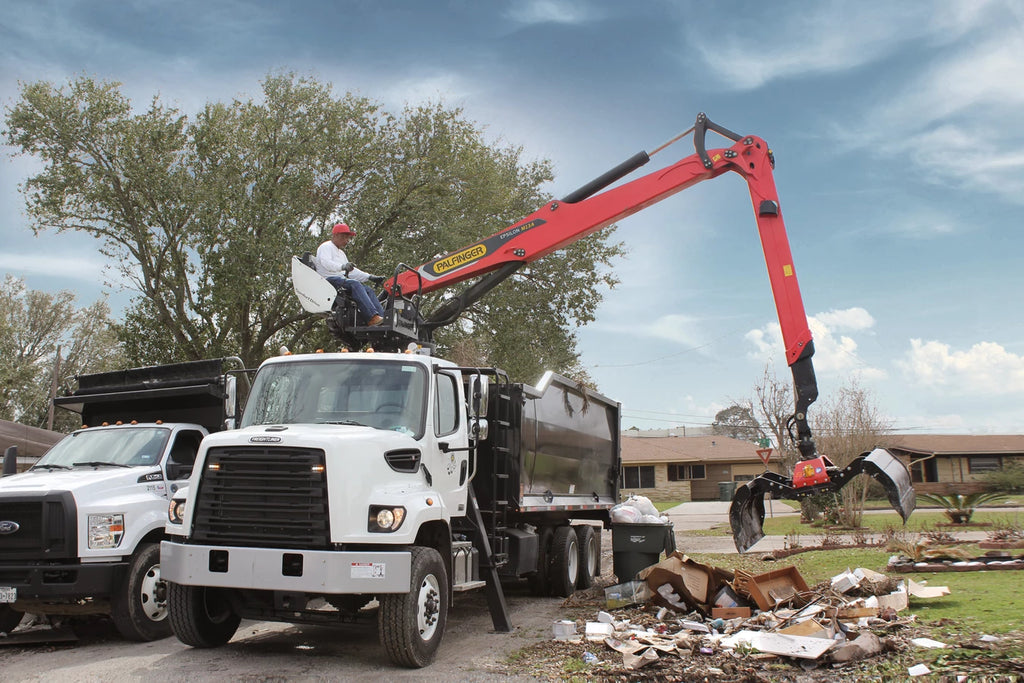

Palfinger Epsilon M13A knuckle boom loader collecting curbside debris, front three quarter view, driver side
Palfinger Epsilon M13A boom with model decal
Palfinger

M13A

description specs

Overview

The Palfinger Epsilon M13A refuse loader belongs to the A Line. Depending on the variant and equipment selected, max. outreach is 9.8 m. Stow length is 21'. The variants are fixed, single and double.

Key Features

  • Cathodic dip coating (CDC)
  • Double row bearing
  • Frame-mounted oil cooler
  • Linkage joining the outer and main booms
  • Control valve with dual high-pressure filters and an in-tank return filter

Options & Configurations

  • Customized A Line configuration: single-acting, front-mounted telescopic lift cylinder
  • Optional Epshood thermoplastic protector
  • Mounting positions: behind the cab, at the rear or on a trailer
  • Body sizes: 28 to 54 cu. yd capacity
  • 42" refuse grapple
  • Optional cold weather package: heated seat and backrest

Related Parts & Accessories

Specifications

  • Max. outreach, depending on the variant and equipment selected: 9.8 m
  • Net load moment, 71 dm boom: 133 kNm
  • Net slewing torque, 71 dm boom: 19 kNm
  • M13A FIXED max. lifting capacity (lbs): 9,650
  • M13A FIXED max. capacity at full extension (lbs): 3,570
  • M13A DOUBLE max. lifting capacity (lbs): 8,580
  • M13A DOUBLE max. capacity at full extension (lbs): 2,380
  • M13A DOUBLE max. outreach (ft): 32
  • Stow length: 21'
  • A Line chassis requirement: 33,000 GVWR or greater

Features

  • Epscope and Epslink
  • Cathodic dip coating (CDC)
  • Double row bearing
  • Frame-mounted oil cooler
  • Linkage joining the outer and main booms
  • Control valve with dual high-pressure filters and an in-tank return filter
  • A-frame

Options

  • Customized A Line configuration: single-acting, front-mounted telescopic lift cylinder
  • Optional Epshood thermoplastic protector
  • Mounting positions: behind the cab, at the rear or on a trailer
  • Body sizes: 28 to 54 cu. yd capacity
  • 42" refuse grapple
  • Optional cold weather package: heated seat and backrest
