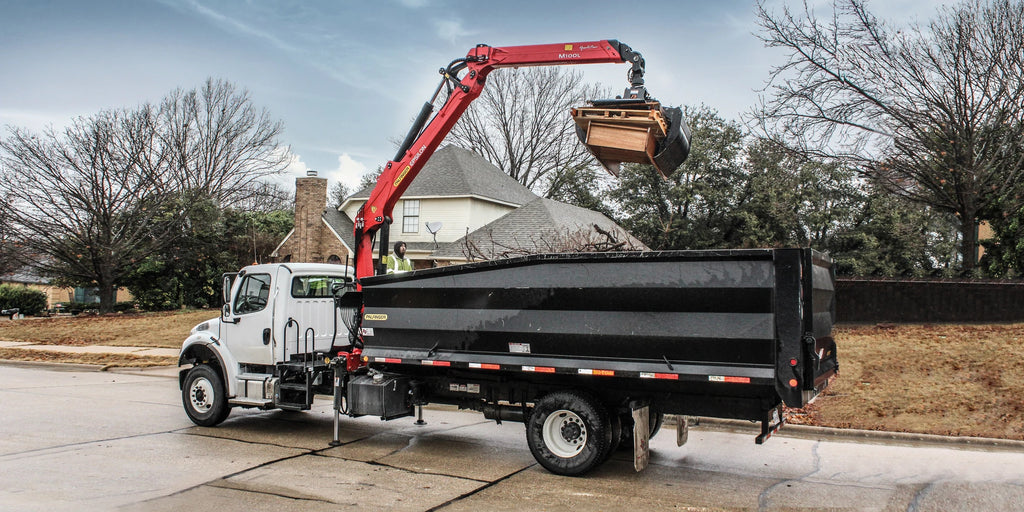

The M-Series represents the medium-duty class of EPSILON loaders within the L-Line product range. Offering a diverse range of configurations to provide customized solutions, the M100L is designed to maximize speed, productivity, and stability. It's the perfect choice for forestry and recycling applications.

Both the M100 and C70 feature a long main boom designed for maximum protection with a top-mounted outer boom cylinder. The main lift cylinder is protected by a heavy-duty steel guard, and the EPSCOPE/EPSLINK provide unmatched protection with internally routed hoses and components. The double-rack slewing system provides an industry-leading torque rating, and features like the linkage system provide the best weight-to-lift ratio in their class.

  • Max. lifting capacities (lbs.): Single 7584
  • Max capacity at full extension (lbs.): 2380
  • Max outreach (ft.): 26.2
  • Weight without rotator/grab (lbs.): 4453
  • Slewing torque (mt): 19914
  • Slewing angle: 425 degrees
  • Operating pressure: 3410 psi - 2x18 gpm
