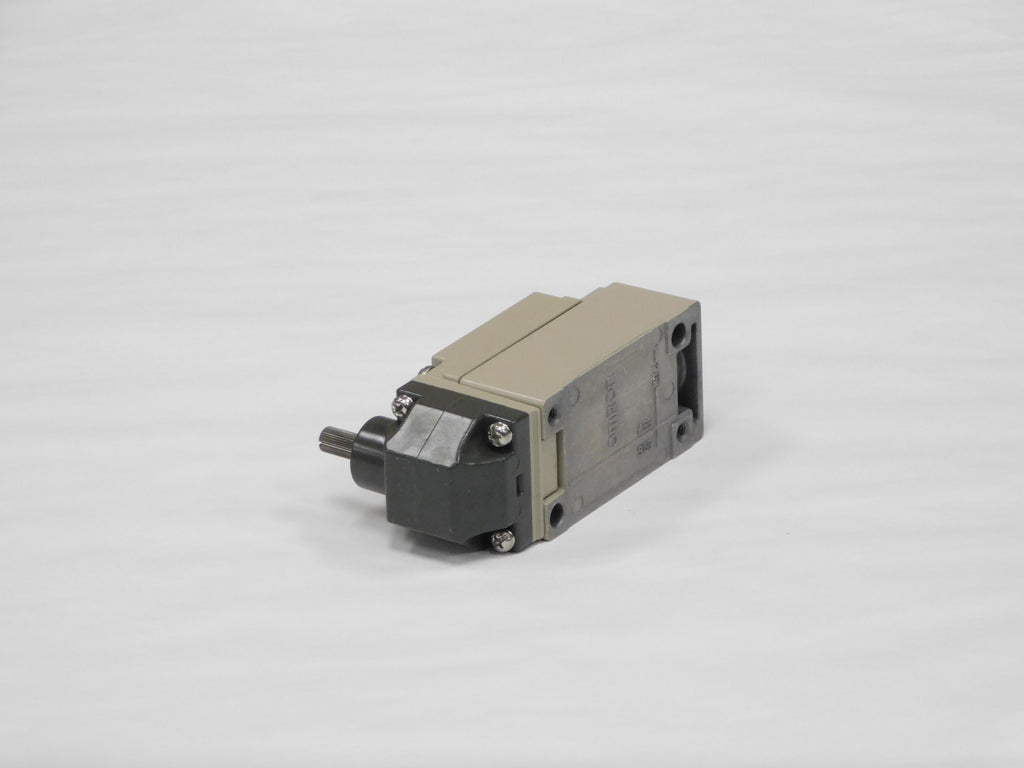

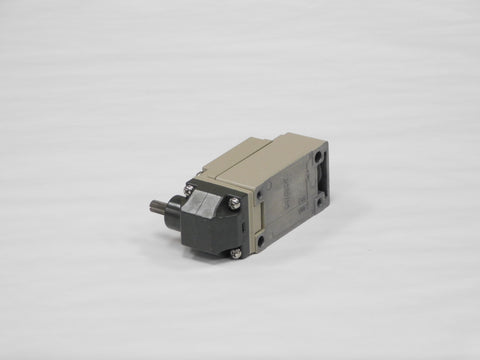

Limit Switch (ELI00550-01)

Overview

The Limit Switch (ELI00550-01) is a genuine Labrie OEM part listed on the parts diagrams for Labrie Automizer, Automizer Full-Eject, Expert and MiniMax side loaders and the Labrie heavy-duty right-hand arm. It appears on 15 parts diagrams, including Packer Extend/Retract Switches, Crusher Switch and Crusher 40% Streetside. Labrie's parts catalog lists it under Electrical.

Compatibility

Labrie's parts documentation names the component maker as Omron.

Listed on these parts diagrams (item number and quantity per diagram):

• Labrie Automizer side loader
  • Crusher 40% Streetside - TTD - 866154 (Section 1, page 103): item 14, qty 1
  • Crusher 40% Streetside - TTD - 878218 (Section 1, page 105): item 16, qty 1
  • Crusher 40% Streetside - TTD - 878217 (Section 1, page 107): item 16, qty 1
  • Crusher 100% Streetside - TTD - 874768 (Section 1, page 109): item 16, qty 1
  • Crusher 50% Streetside - TTD - 874784 (Section 1, page 111): item 16, qty 1
  • Crusher Streetside - TTD - 840080 (Section 1, page 113): item 16, qty 1
  • Crusher Stowed Switch/Sensor Installs (Section 6, page 529): item 1, qty 1
• Labrie heavy-duty right-hand arm
  • Limit Switches (BCB01170-04, BCB01175-04, BCB01180-04, BCB01182-04, BCB01185-04 & BCB01187-04) (Section 5): item 3, qty 2
  • Limit Switches (BCB01171-04, BCB01176-04, BCB01178, BCB01186-04) (Section 5): item 3, qty 2
  • Limit Switches (BCB01190-04 & BCBM2190-01) (Section 5): item 3, qty 2
• Labrie Expert side loader
  • Chute Switches - Single & Dual (Section 6, page 235): item 6, qty 1
  • Crusher Stowed Switch (Section 6, page 237): item 4, qty 1
• Labrie MiniMax side loader
  • Packer Extend/Retract Switches (Section 6, page 57): item 3, qty 2
  • Crusher Switch (Section 6, page 58): item 9, qty 1
• Labrie Automizer Full-Eject side loader
  • Crusher 100% - FE - 823698 (Section 1, page 115): item 24, qty 1

Parts Support

Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
