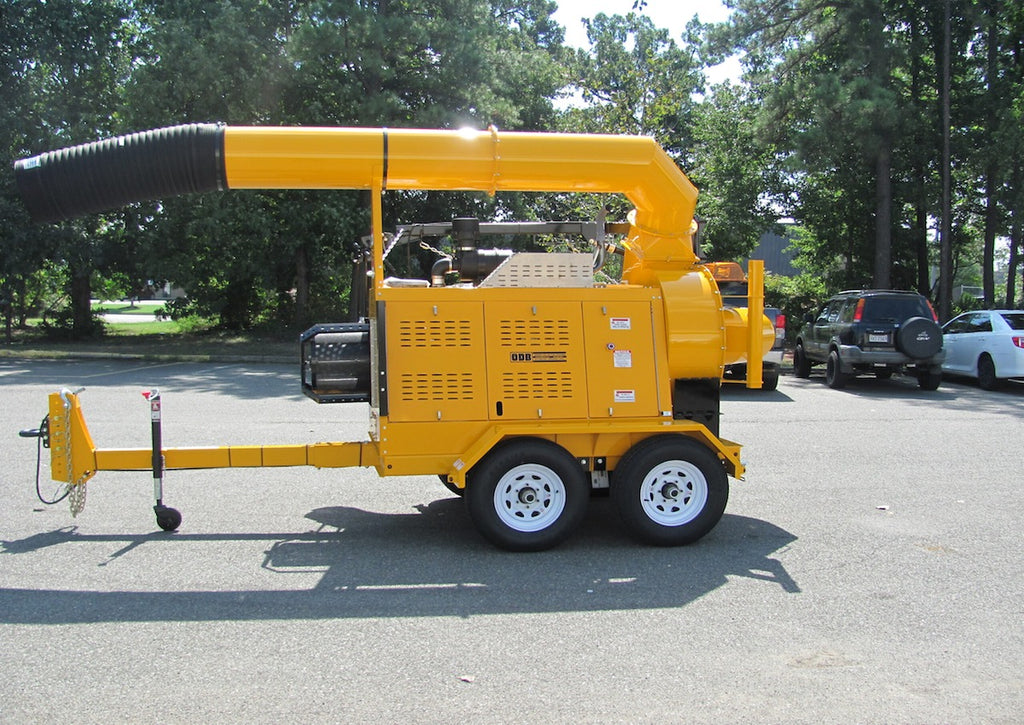

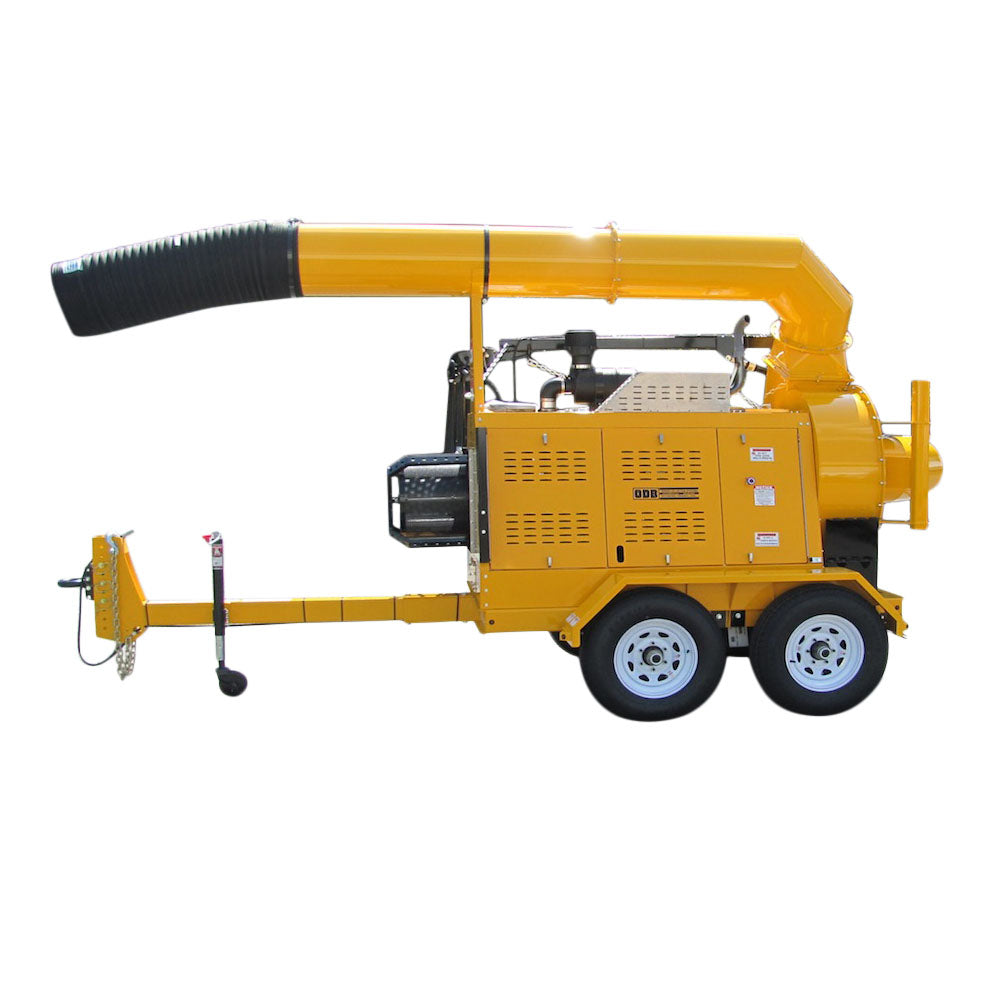

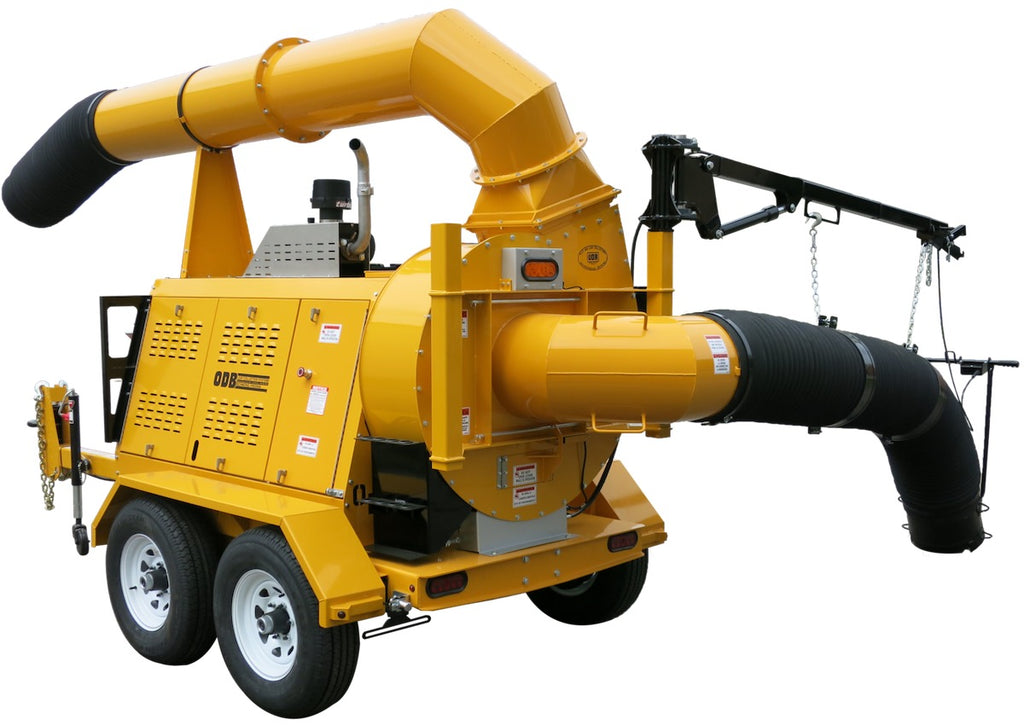

LCT650

Specifications

• Air Cleaner: Dry-element air cleaner with pre-cleaner
• Radiator: Pressurized trash-style radiator with 6-blade fan
• Radiator Screen: Boxed perforated steel screen; bottom hinged; corrugated face; cleaning without powering down the engine
• Engine Sheet Metal: 16-gauge steel enclosure around engine, battery, hydraulic pump and drive belt; louvered accordion-style doors on both sides; two top doors for radiator cap and bearing/drive-belt access
• PTO: 13" automotive-style PTO; 2.25" shaft
• Drive Type: 4-groove power band
• Trailer Bed: One-piece 1/4" formed steel plate; 48" wide x 66" long
• Axle: Tandem 2.5 inch rubber axles, each rated at 4,500 pounds; electric brakes
• Tires: ST225-75R15 radial tires on steel white-spoke rims
• Pintle Hook: Pintle eye with height adjustment without tools
• Tow Tongue: Constructed of 4" square steel tubing
• Parking Jack: Top-wind jack with steel wheel
• Trailer Lighting: LED stop/turn signals and turn-signal indicators; rear LED strobe
• Impeller: 28" diameter; 6 gusseted blades of 3/8" thick abrasive resistant T-1 steel; Brinell hardness exceeding 400; 1/4" thick backing plate; flat blades with serrated tips; taper-lock shaft bushing
• Impeller Bearings: Two double-roller bearings with 4 bolt flanges
• Impeller Shaft: Machined steel shaft
• Liners: 0.25" steel liners
• Suction Inlet: Rear inlet; access via removable rods
• Intake Hose: 16" diameter x 120" long rubber hose
• Hose Boom: Hydraulic control with an electrically operated hydraulic pump; boom pivot in a greaseable tube; 1.5" diameter cylinder with minimum 12" stroke
• Boom Controls: Push-button switch on the intake hose nozzle
• Intake Nozzle: 16" diameter nozzle with handle; 12 gauge steel
• Exhaust Duct: 12-gauge steel duct centered over the tongue
• Fuel Tank: 1/4" thick polyethylene tank
• Paint: All metal parts cleaned, primed, painted and dried before assembly; rust-inhibitor primer; two paint coats; bolts, nuts, cables and grease fittings remain unpainted; standard white
• Blower Housing: Safety kill switch shuts down the engine when the hose is disconnected

Dimensions & Weights

• G.V.W.: 5,160 lbs.
• Total Width w/ Hose, LCT650: 6'-7"
• Curb Weights (standard), LCT650: 5,160 lbs
• Total Height, LCT650: 9'-7/8"

Options

• Self-cleaning rotary radiator screen
• Hydraulic parking jack with caster wheel
• Remote electric engine throttle controlled from the suction-hose handle
• Fluid-drive coupler in place of the standard clutch
• Remote electric engine clutch
• 45 degree intake-hose flange
• Urethane suction hose
• Urethane-coated blower-housing liners
• Driver-side (street-side) pickup
