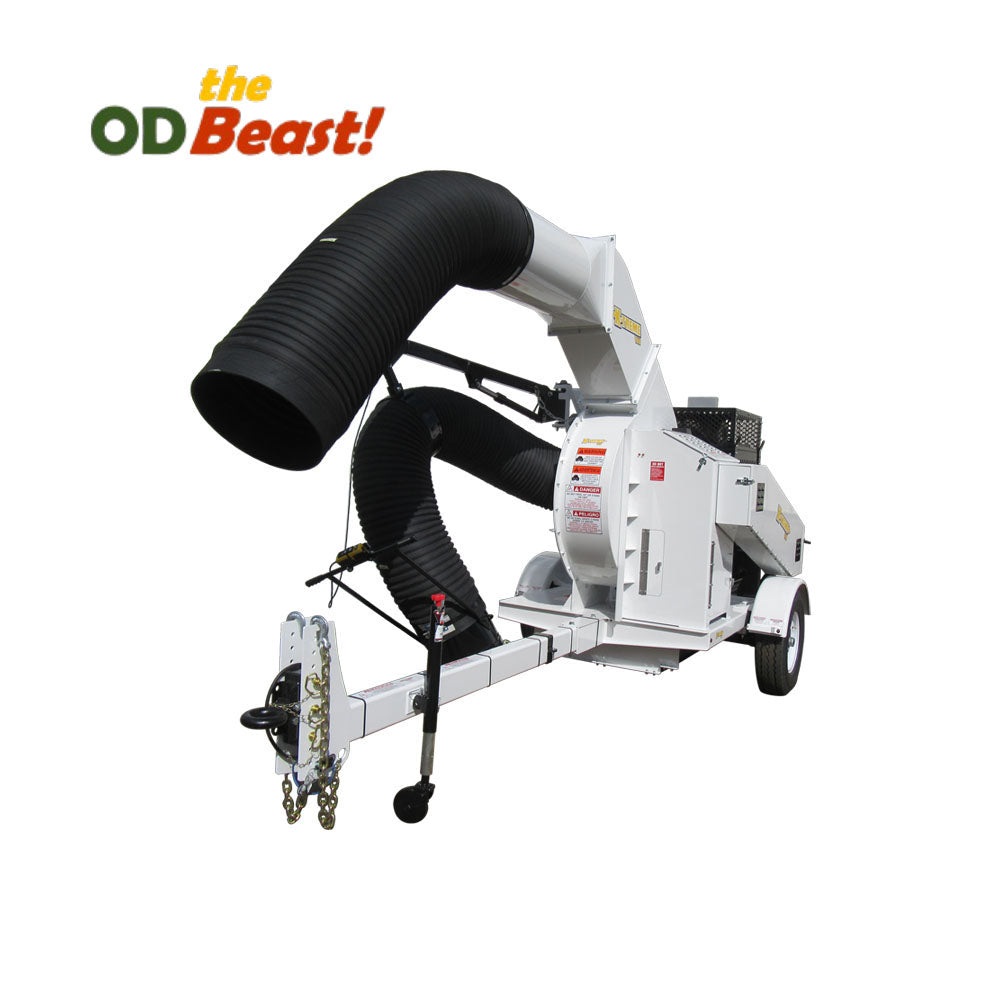

ODB LCT6000 leaf loader with intake hose on the boom, front three quarter view
ODB LCT6000 leaf loader with intake hose on the boom, front three quarter view

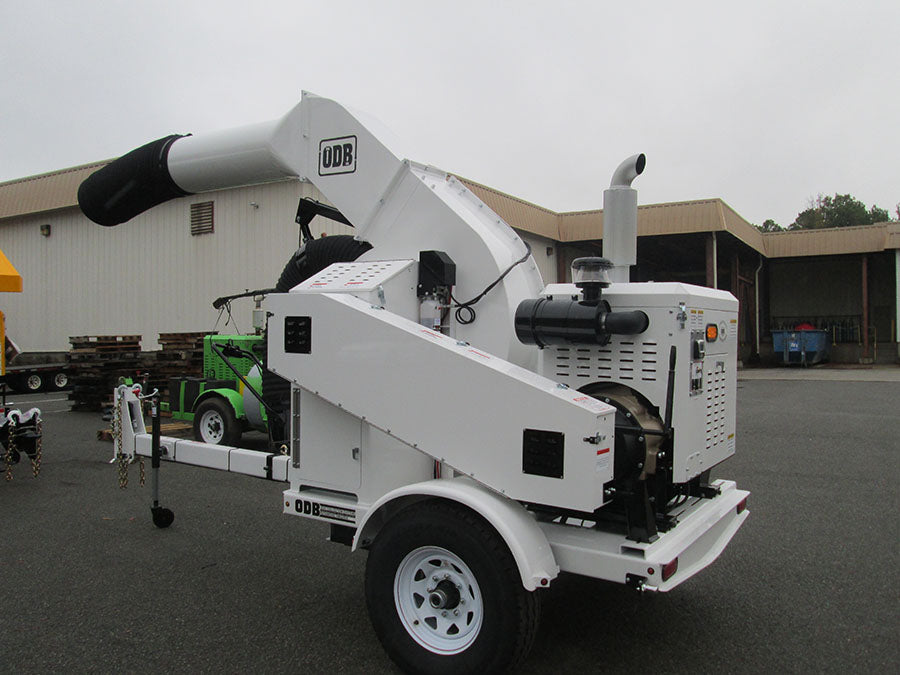

ODB LCT6000 leaf loader, rear three quarter view

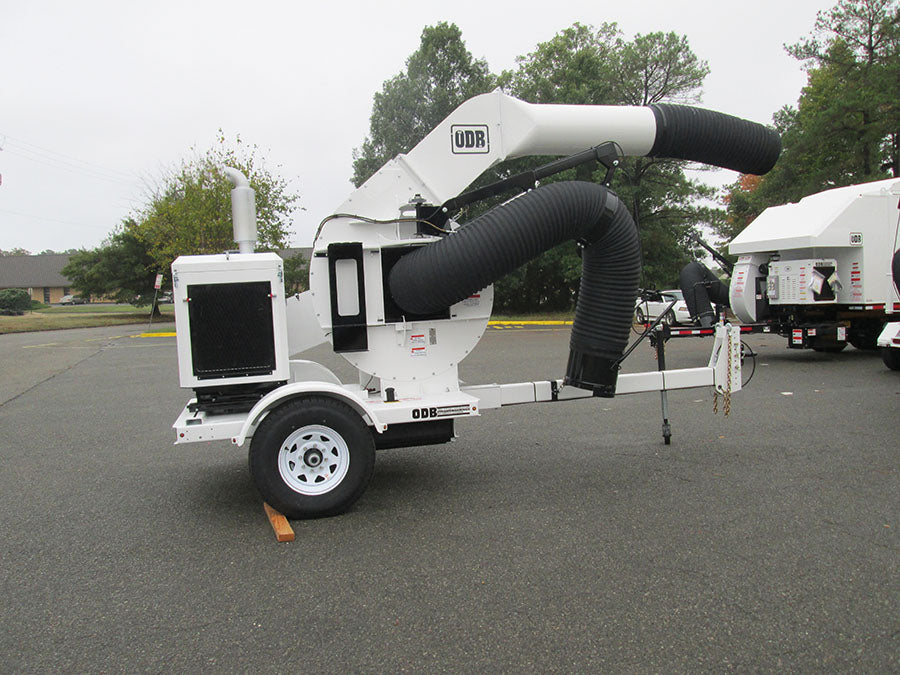

ODB LCT6000 leaf loader with intake hose on the boom, side view
ODB

LCT6000

description specs

Overview

The ODB LCT6000 is a tow-behind leaf loader with a Tier 4 diesel engine, a standard 38" fan and a 44-gallon fuel tank. Standard curb weight is 5,980 lbs, and total width with the hose is 6'-7".

Key Features

  • The intake hose sits ahead of the axle.
  • The fan-housing cleanout door is safety interlocked.
  • The fan housing has replaceable steel liners.
  • Electronic engine controls provide safety shutdown.
  • The exhaust duct is angled at 45 degrees.

Options & Configurations

  • 2 and 3-axis booms are available.
  • Optional remote control for 2 and 3-axis configurations.
  • Optional urethane vacuum hose.
  • Optional Shred Master fan.

Trailer

  • Pintle eye
  • Fully height adjustable with 3 quick-release pins
  • Tow bar adjustment in 12" increments
  • Single axle, 7,000 LBS
  • Electric brakes with breakaway actuator
  • Battery compartment with top access
  • DOT LED lighting
  • Amber LED strobe lights

Tires

  • (2) radial tires; steel wheels
  • Top-wind folding jack with swivel caster

Auxiliary engine

  • Tier 4 diesel engine
  • Pleated, boxed radiator air screen; access without tools
  • Electronic controls with safety shutdown
  • Instrument panel with display
  • Keyed ignition switch
  • Air filter with pre-cleaner
  • Access panels
  • 44-gallon polyethylene fuel tank

Engine/Vacuum System Skid

  • Tab-and-slot construction throughout
  • All metal laser-cut

Clutch

  • PTO engagement and disengagement
  • 13" automotive-style clutch
  • 2.25" shaft
  • 5 groove power band drive
  • Belt drive
  • Adjustable clutch

Boom/Hose

  • Single Axis: nozzle-mounted hydraulic controls
  • Powered raising; flow-controlled gravity lowering
  • 2 and 3-axis available
  • Optional remote control for 2 and 3-axis configurations
  • Hydraulically powered 12V system
  • Flexible rubber vacuum hose
  • Optional urethane vacuum hose
  • Steel nozzle

Exhaust

  • 45-degree exhaust duct

Fan / Impeller

  • PTO engagement and disengagement
  • Standard 38" fan
  • Optional Shred Master fan
  • Scalloped fan design
  • Back plate protects bearings and shaft
  • Self-clearing fan
  • AR400 material
  • Robotically welded, harmonically annealed, statically and dynamically balanced fans

Fan housing

  • Safety-interlocked cleanout door
  • Replaceable 1/4" steel liners
  • Robotically welded housing

Fan Bearings

  • Sealed bearings
  • External grease zerks with high-pressure feed lines

Dimensions & Weights

  • Total Width w/ Hose, LCT6000: 6'-7"
  • Curb Weights (standard), LCT6000: 5,980 lbs
  • Total Length, LCT6000: 15'-3 3/8"
  • Total Height, LCT6000: 9'-6 3/8"
