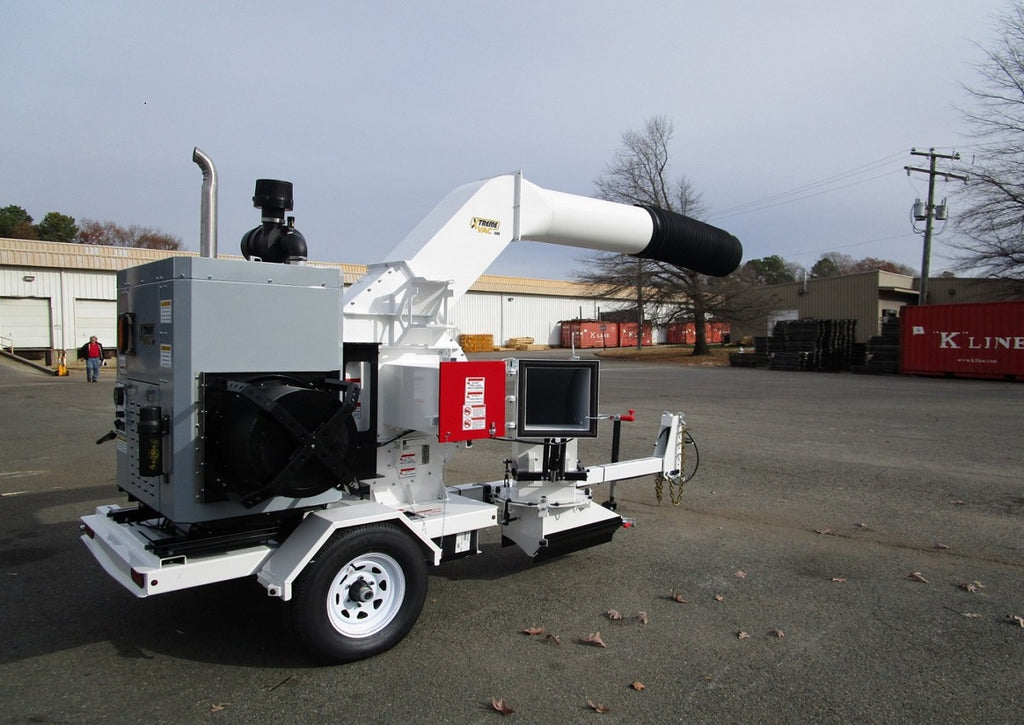

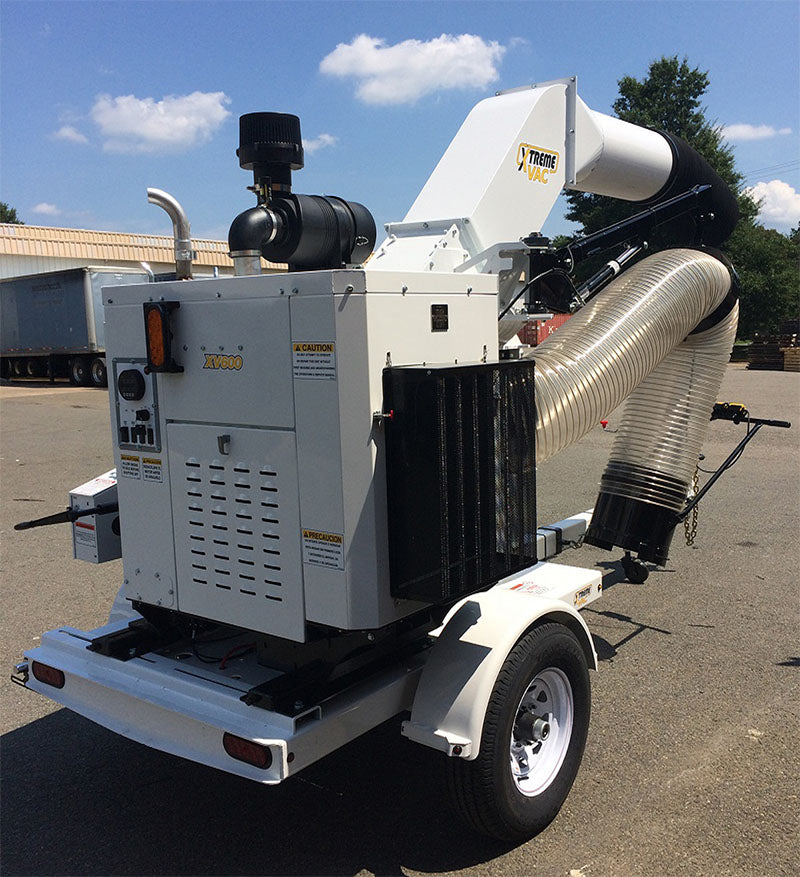

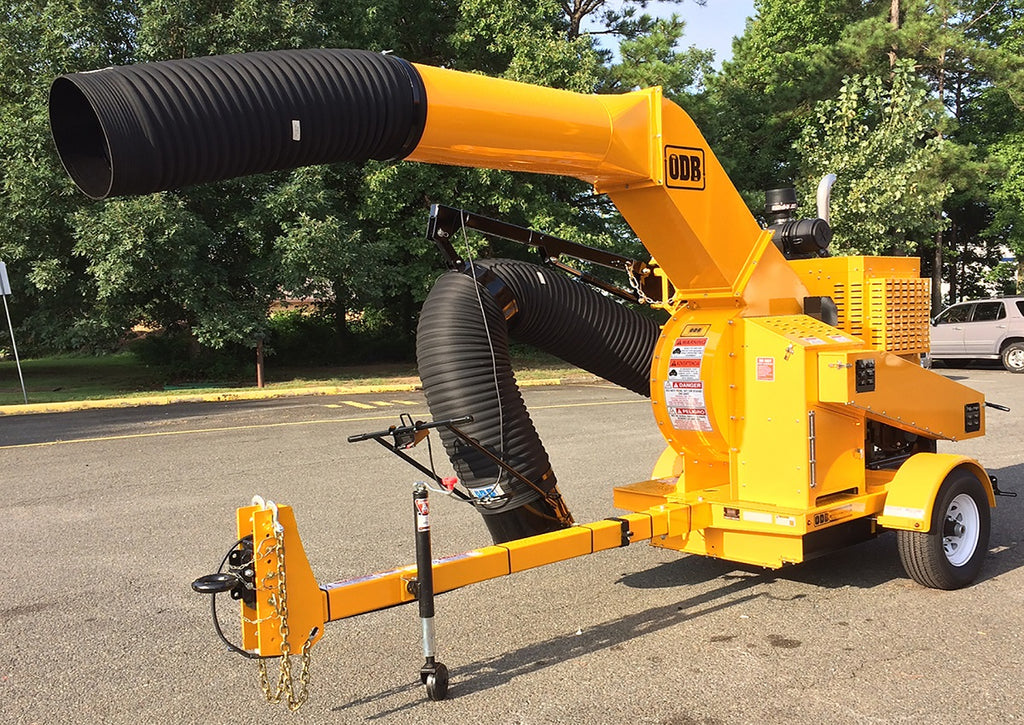

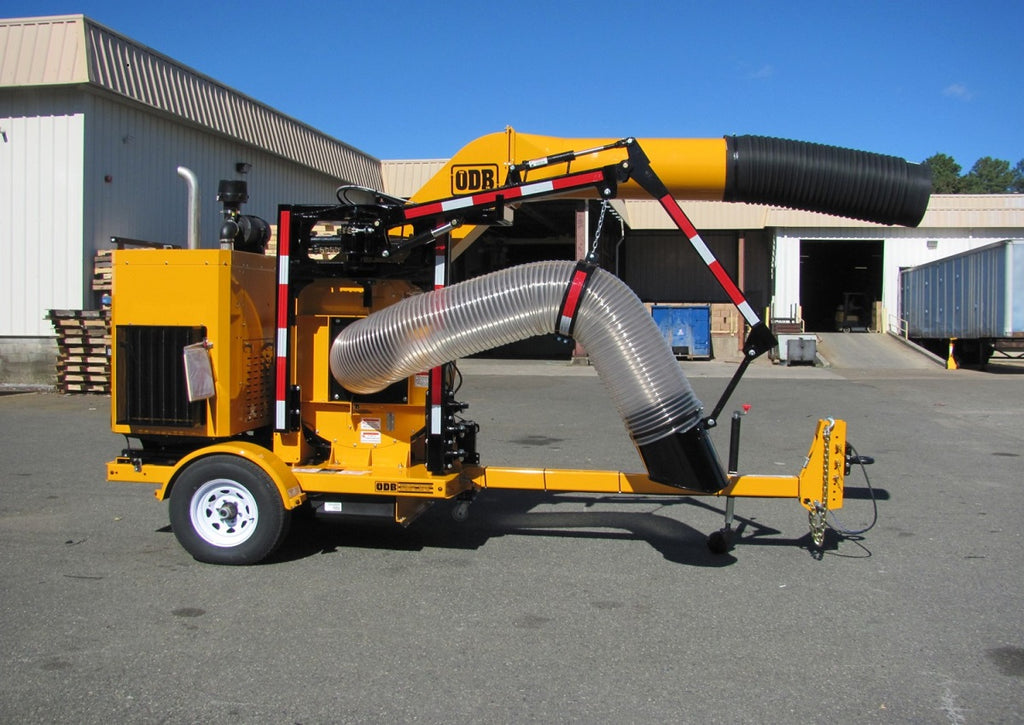

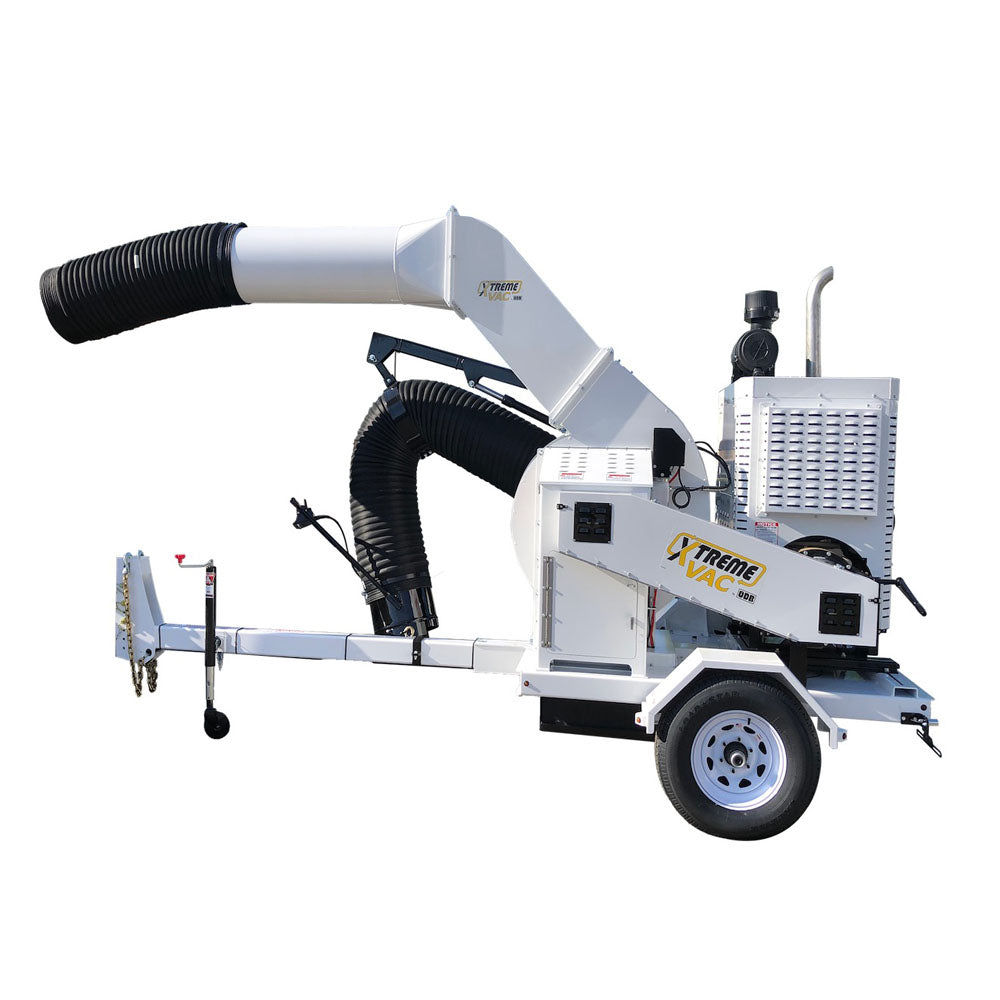

LCT600

Trailer

• Heavy-duty fully height adjustable with 3 quick-release pins
• Pintle Eye
• 12” increment adjustable tow bar
• Single Torflex axle – 6,000 LBS
• Electric brakes with breakaway actuator
• Top access battery compartment
• DOT LED lighting
• Amber LED strobe lights
• (2) ST225-75R15 radial tires on steel wheels
• Top wind folding jack with swivel caster

Auxiliary Engine

• Kubota 3.8L 87HP Gas (Standard)
• 74 HP John Deere Tier 4 – (Option)
• ECO-MODE Patented system controls which reduces fuel (35%), noise (50%), dust (40%), & wear
• Radiator air screen Pleated and boxed protective, with tool-free access
• Electronic controls with safety shutdown
• Instrument panel with display
• Keyed ignition switch
• Air filter with pre-cleaner
• Easy access panels
• Fuel tank 44 Gallon polyethylene

Boom/Hose

• Single Axis: Nozzle mounted hydraulic controls
• Power-up and flow-controlled gravity down
• 2 and 3-axis available
• Remote control available for 2-3 axis
• Hydraulic powered 12V system
• 16”x120” HD flexible rubber vacuum hose
• Urethane vacuum hose option
• Steel nozzle

Fan / Impeller

• 28” fan standard – 30% Compaction
• Option: 30” Fan – 25% Compaction
• Option: Shred Master™ Fan – 40% Compaction
• Self-clearing
• Scalloped design reduces decibel level
• Back plate protects bearings and shaft
• Fans are robotically welded, harmonically annealed and statically and dynamically balanced
• AR400 material

Fan Bearings

• Proprietary Quad-Glide™ sealed bearings
• Designed in partnership with Timken engineering
• Grease zerks located outside housing with high-pressure feed lines
