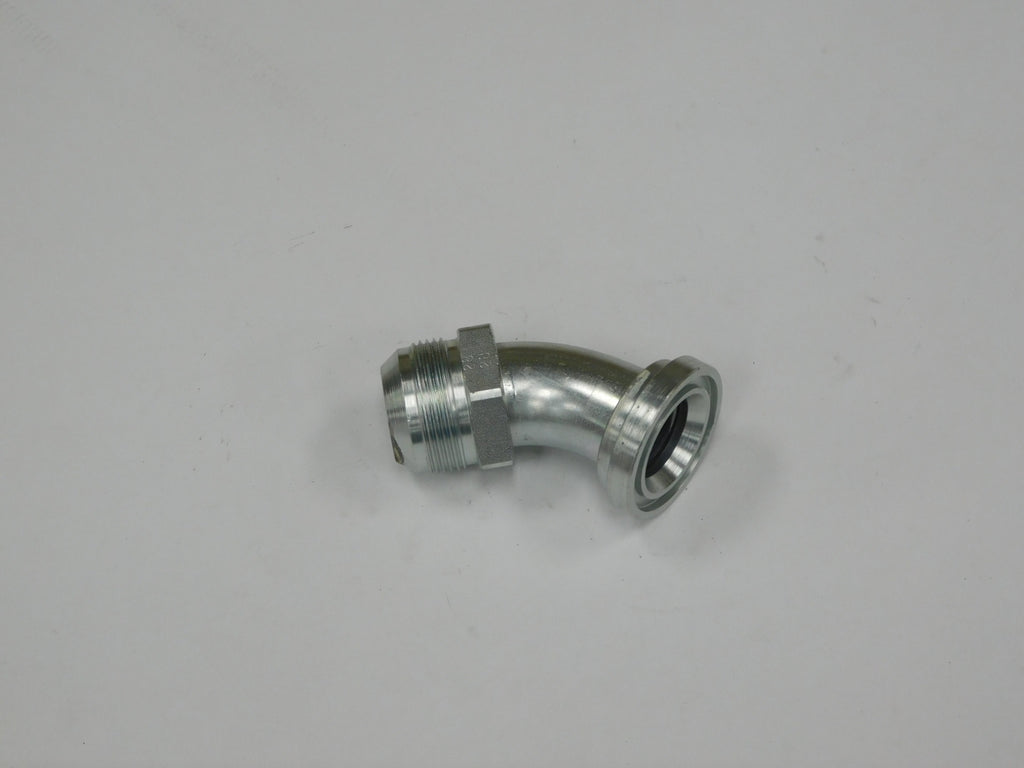

ADPH 45F 1.250 X 20JICM — 45° Flange to JIC Male Adapter
This 45° elbow adapter connects a 1-1/4" SAE J518 Code 61 flanged port to a -20 JIC 37° flare male fitting, letting you change direction without kinking hose or crowding a valve bank. The flange head seats against a standard split-flange clamp half with an O-ring seal; the JIC end mates to any standard 37° flare female swivel.
Common uses include hydraulic pump and valve connections, packer and hoist cylinder circuits, and tank or reservoir port routing on refuse and municipal equipment.
Specifications
- Item #: HYF25105
- Type: 45° elbow adapter, flange to JIC male
- End 1: 1-1/4" SAE Code 61 flange head (SAE J518)
- End 2: -20 JIC 37° flare male, 1-5/8"-12 UNF thread
- Material: Steel
- Seal: O-ring (flange side), metal-to-metal 37° flare (JIC side)
