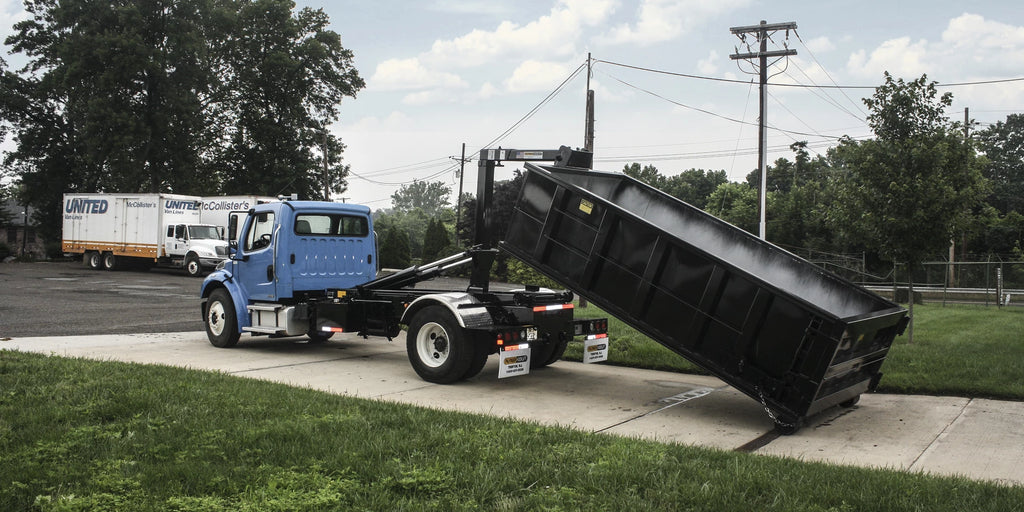

The Palfinger HAS 200 Hooklift is a highly versatile solution designed for specialized tasks, featuring a lift capacity ideal for handling heavier loads in demanding environments. It includes advanced features such as a telescopic jib for flexible body handling and a robust dual-pivot design for stability. Built with durable materials, the HAS 200 is engineered for long-lasting performance and efficiency across a wide range of applications.

SS Model:

  • Lift / Dump Capacity: 20,000 lbs
  • CA Range: 108-120"
  • Optimum CA: 130"
  • Minimum GVWR: 26,000 lbs
  • Hooklift Length: 156"
  • Body Length Range: 10-14'
  • Optimum Body Lengths: 12-14'
  • Jib Height: 92.07 cm
  • Jib Action: Telescopic
  • Max Dump Angle: 54 to 43 degrees
  • Pivot: Single
  • Number of Cylinders: 2/2
  • Operating Pressure: 2,900 PSI
  • Pump Type: Gear - Direct mount
  • Fitting Hoses: JIC/SAE

S Model:

  • Lift / Dump Capacity: 20,000 lbs
  • CA Range: 120"
  • Optimum CA: 130"
  • Minimum GVWR: 26,000 lbs
  • Hooklift Length: 155"
  • Body Length Range: 10-14'
  • Optimum Body Lengths: 12-14'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 54 to 43 degrees
  • Pivot: Single
  • Number of Cylinders: 2/2
  • Operating Pressure: 2,900 PSI
  • Pump Type: Gear - Direct mount
  • Fitting Hoses: JIC/SAE

L Model:

  • Lift / Dump Capacity: 20,000 lbs
  • CA Range: 120-130"
  • Optimum CA: 144"
  • Minimum GVWR: 26,000 lbs
  • Hooklift Length: 178"
  • Body Length Range: 12-15'
  • Optimum Body Lengths: 12-15'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 50 to 42 degrees
  • Pivot: Single
  • Number of Cylinders: 2/2
  • Operating Pressure: 2,900 PSI
  • Pump Type: Gear - Direct mount
  • Fitting Hoses: JIC/SAE

M Model:

  • Lift / Dump Capacity: 20,000 lbs
  • CA Range: 120-130"
  • Optimum CA: 144"
  • Minimum GVWR: 26,000 lbs
  • Hooklift Length: 182"
  • Body Length Range: 12-16'
  • Optimum Body Lengths: 14-16'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 50 to 42 degrees
  • Pivot: Single
  • Number of Cylinders: 2/2
  • Operating Pressure: 2,900 PSI
  • Pump Type: Gear - Direct mount
  • Fitting Hoses: JIC/SAE
