Palfinger

HAD 200

request price / demo download specs share equipment
description specs

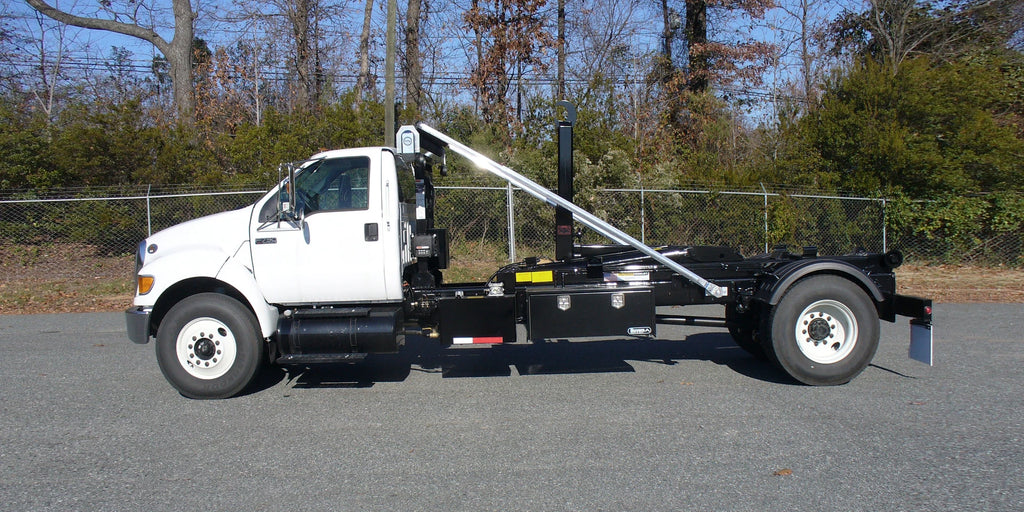

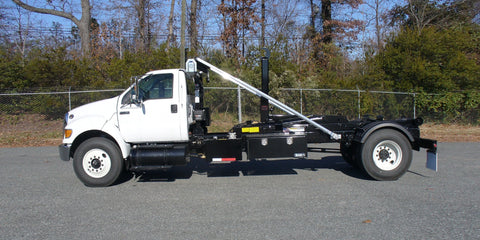

The Palfinger HAD 200 Hooklift is engineered for heavy-duty operations, providing powerful lifting capabilities with advanced hydraulic technology. It features a telescopic jib to accommodate various body lengths, ensuring versatility and efficiency across a range of applications. Constructed with durable materials, the HAD 200 is designed for reliability and long-lasting performance in challenging environments.

M Model:

  • Lift / Dump Capacity: 20,000 lbs
  • CA Range: 120-130"
  • Optimum CA: 130"
  • Minimum GVWR: 26,000 lbs
  • Hooklift Length: 158"
  • Body Length Range: 10-14'
  • Optimum Body Lengths: 12-14'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 58 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 2,900 PSI
  • Pump Type: Gear - Direct mount
  • Fitting Hoses: JIC/SAE

L Model:

  • Lift / Dump Capacity: 20,000 lbs
  • CA Range: 130-144"
  • Optimum CA: 144"
  • Minimum GVWR: 26,000 lbs
  • Hooklift Length: 180"
  • Body Length Range: 12-16'
  • Optimum Body Lengths: 14-16'
  • Jib Height: 54"
  • Jib Action: Telescopic
  • Max Dump Angle: 52 degrees
  • Pivot: Dual
  • Number of Cylinders: 2/2
  • Operating Pressure: 2,900 PSI
  • Pump Type: Gear - Direct mount
  • Fitting Hoses: JIC/SAE
