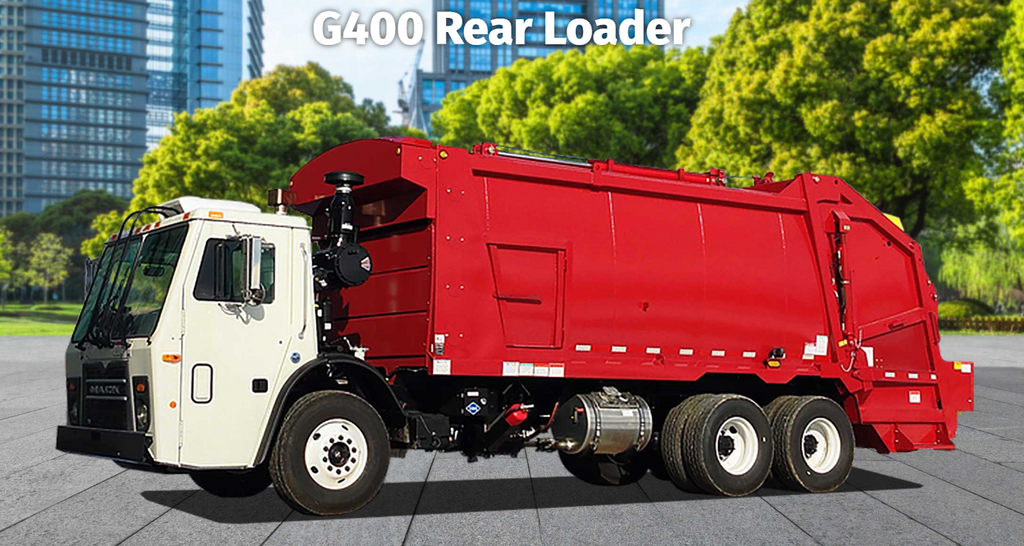

Red rear loader refuse body on a white low entry cab
E-Z Pack

E-Z Pack Goliath G400 High Compaction Rear Loader

description specs

Overview

The E-Z Pack Goliath G400 is a rear loader that packs up to 1,200 pounds per cubic yard of refuse and has a 4 yds.³ (3.1 m³) hopper. The G400-20 capacity is 20 yds.³ (15.3 m³), the G400-25 capacity is 25 yds.³ (19.1 m³), the G400-28 capacity is 28 yds.³ and the G400-31 capacity is 31 yds.³ (23.7 m³). Its cycle takes 28 to 30 seconds, with reload at 10 to 12 seconds.

Key Features

  • Manual controls are standard.
  • The tailgate latches and unlatches automatically.
  • The ejector panel travels in steel guide shoes along a floor-level track.
  • The tubing is zinc-dichromate-plated, and the hydraulic lines are unpainted.
  • A high-mount light package and LED lighting are standard features.

Options & Configurations

  • Cart tippers.
  • A 1 to 3 Yard (.76 to 2.3 m³) hydraulic kickbar.
  • A 10,000 lb. (4536 kg) overhead winch.
  • A 14,000 lb. (6350 kg) reeving cylinder winch.
  • A streetside access door, front-mounted pump and system pressure gauge.

Specifications

  • Compaction: Packs up to 1,200 pounds per cubic yard of refuse
  • Capacity, G400-20: 20 yds.³ (15.3 m³)
  • Cab to trunnion (CT), G400-20 (base chart): 126" to 132" (3200 to 3353 mm)
  • Clear platform, G400-20 (base chart): 172" (4369 mm)
  • Length including tailgate, G400-20 (base chart): 251" (6375 mm)
  • Length tailgate raised, G400-20 (base chart): 284" (7214 mm)
  • Weight, G400-20: 14,500 lbs. (6577 kg)
  • Capacity, G400-25: 25 yds.³ (19.1 m³)
  • Cab to trunnion (CT), G400-25 (base chart): 156" to 162" (3962 to 4115 mm)
  • Length including tailgate, G400-25 (base chart): 285" (7239 mm)
  • Length tailgate raised, G400-25 (base chart): 318" (8077 mm)
  • Weight, G400-25: 15,200 lbs. (6895 kg)
  • Capacity, G400-28: 28 yds.³
  • Cab to trunnion (CT), G400-28 (base chart): 172" to 176"
  • Length including tailgate, G400-28 (base chart): 304" (7721 mm)
  • Weight, G400-28: 16,000 lbs. (7258 kg)
  • Capacity, G400-31: 31 yds.³ (23.7 m³)
  • Cab to trunnion (CT), G400-31 (base chart): 190" to 196" (4826 to 4978 mm)
  • Clear platform, G400-31 (base chart): 246" (6248 mm)
  • Length including tailgate, G400-31 (base chart): 325" (8255 mm)
  • Length tailgate raised, G400-31 (base chart): 358" (9093 mm)
  • Weight, G400-31: 16,000 lbs. (7258 kg)
  • Trunnion to frame end, all models (base chart): 44" AF min. (1118 mm)
  • Height tailgate raised: 174.25" (4426 mm)
  • Height above chassis frame: 97.75" (2483 mm)
  • Inside width (body): 91.5" (2324 mm)
  • Loading width (below frame): Up to 5.5" below chassis frame, depending on options selected (140 mm)
  • Loading opening: 80" (2032 mm) x 64" (1626 mm) high
  • Outside width: 96" (2438 mm)
  • Hopper capacity: 4 yds.³ (3.1 m³)
  • Chassis specifications: Intended as general guidelines only
  • PTO requirements: 45 HP @ 1,200 RPM (Torque Rating 250 ft. lbs.) Minimum
  • Chassis: Requires variable speed governor with body-builder connection for engine remote throttle, programmed and preset to approximately 1,400 RPM
  • Chassis lighting: Must be set up and programmed for the heavy-duty package and duplicate independent stop and turn signals
  • Chassis selection: Should be made on an analysis of the weight distribution for the particular chassis/body combination including optional equipment and anticipated payloads

Chart Note

  • Rows marked "base chart" show the main value printed in E-Z Pack's brochure chart. The chart's values and notes for other fuel systems are not shown.

Construction and Operational Details

  • Body floor: 1/4" (6.35 mm) 100,000 PSI
  • Body sides: 7 ga. (4.55 mm) 100,000 PSI
  • Body roof: 10 ga. (3.42 mm) 100,000 PSI
  • Ejector panel: 7 ga. (4.55 mm) 100,000 PSI
  • Hopper sides (lower): 1/4" (6.35 mm) 100,000 PSI
  • Packing panel: 1/4" (6.35 mm) 100,000 PSI

Hydraulic System

  • Packing cylinders (2) with induction hardened rods and steel rod wipers: 6" (152 mm) (D.A.)
  • Sweep cylinders (2) with induction hardened rods and steel rod wipers: 4" (102 mm) (D.A.)
  • Tailgate cylinders (2): 4" (102 mm) (D.A.)
  • Ejector cylinder (1), 20 Yd.: 6-1/2" (165 mm) 2-Stage
  • Ejector cylinder (1), 25 Yd.: 6-1/2" (165 mm) 3-Stage
  • Ejector cylinder (1), 31 Yd.: 7-1/2" (191 mm) 4-Stage
  • Hydraulic oil tank: 67 Gallons (254 Liters)
  • Hydraulic pump: 30 GPM @ 1,200 RPM (114 Liter/Min.)
  • Hydraulic filters: Suction: 100 Mesh / Return: 3 Micron
  • System operating pressure: 2,500 PSI

Operational Features

  • Compaction cycle: Manual hydraulic, automatic split cycle, fully reversible
  • Cycle time: 28 to 30 seconds, reload @ 10 to 12 seconds
  • Packer panel: Curved, one-piece construction
  • Ejector panel: Travels in steel guide shoes, floor-level track
  • Packing cylinders: Positioned away from refuse
  • Ejector cylinder: Double-acting, telescopic

Standard Features

  • Manual controls
  • Tailgate props and back-up alarm
  • Body lifting eyes
  • High-mount light package and LED lighting
  • ICC lights and reflectors meet DOT requirements
  • Non-skid riding steps at rear corners of tailgate
  • Streetside and curbside buzzers
  • Automatic latch-unlatch tailgate

Optional Equipment

  • Air Shift or Hot Shift PTOs
  • Streetside Access Door
  • Front Mount Pump
  • Dual Hopper Flood Lights
  • Rear Body Side Liner
  • System Pressure Gauge
  • Cart Tippers
  • 10,000 lb. (4536 kg) Overhead Winch*
  • 14,000 lb. (6350 kg) Reeving Cylinder Winch*
  • 1 to 3 Yard (.76 to 2.3 m³) Hydraulic Kickbar

Optional Equipment Note

  • * Optional Container Dumping Devices Handle Containers up to 10 Cubic Yards (7.6 m³)
