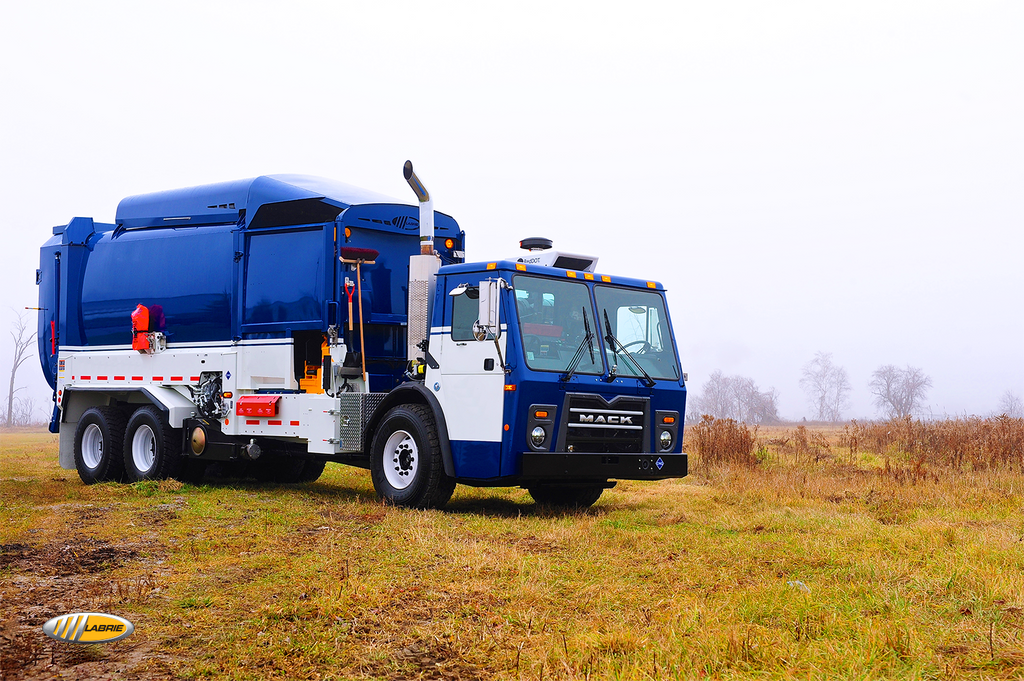

Blue and white side loader refuse truck, front left three-quarter view in a grassy field
Blue and white side loader refuse truck, front left three-quarter view in a grassy field
Labrie

Labrie Expert Side Loader

description specs

Overview

The Labrie Expert is a side loader garbage truck body for manual, semi-automated or fully automated collection. It has a 4 yd³ hopper and a compaction ratio of 850 lbs/yd³, or 600 lbs/yd³ on a single axle chassis.

Automated units use the Expert Helping-Hand arm, with a 400 lbs lift capacity and a 16" swing out. Arm up and arm down each take 2.5 to 3.0 sec at 700 rpm.

Key Features

  • Expert Helping-Hand arm enclosed within the hopper (automated units)
  • Proportional joystick arm controls, electric over hydraulic
  • Hopper reachable from both the curbside and the street side
  • AR steel liners on the hopper floor and side walls
  • Grab pack: packer runs 2 to 3 strokes after each arm cycle (programmable)
  • Crusher panel
  • Body sides made from a single sheet of steel, with a rounded, tapered body shape
  • Auto-latching tailgate; its straight-down close protects the rubber seal
  • Zinc-plated hydraulic tubing
  • Drop frame modification done in-house

Options & Configurations

  • Dual Helping-Hand configuration
  • Split body in 50/50, 40/60 or 60/40 proportions
  • Split chute on comingle units, controlled by a hydraulic cylinder

Applications

  • Manual, semi-automated or fully automated collection
  • Waste and recycling collection
  • Waste collection in alleys and on one-way streets

Related Parts & Accessories

Capacity

  • Hopper size (yd³): 4
  • Compaction ratio (lbs/yd³): 850 (600 on single axle chassis)

Hopper

  • Loading height: 5-1/2" above frame

Body

  • Tailgate sizes: 0 yd³ to 6 yd³, based on body capacity
  • Body floor: 3/16" 50W 50,000 psi
  • Body sides (lower): 10ga A1011 80,000psi
  • Body roof: 10ga A1011 80,000psi
  • Tailgate: 12ga A1011 80,000psi
  • Tailgate open: 21 sec @ 700 rpm
  • Tailgate close (with Safety Flow limiter): 26 sec @ 700 rpm
  • Body up (depending on body size): 30 to 40 sec @ 700 rpm
  • Body down (depending on body size): 15 to 25 sec @ 700 rpm

Packer

  • Packer width: 71"
  • Packer height: 18"
  • Packer stroke: 50"
  • Packer panel face plate: 1/4" 100QT 100,000 psi
  • Crusher panel up: 4 sec @ 700 rpm
  • Crusher panel down: 3 sec @ 700 rpm

Arm (Expert Helping-Hand, automated units)

  • Arm lift capacity: 400 lbs
  • Arm swing out: 16"
  • Arm up: 2.5 to 3.0 sec @ 700 rpm
  • Arm down: 2.5 to 3.0 sec @ 700 rpm
  • Grabber open: 1.3 to 1.8 sec @ 700 rpm
  • Grabber close: 1.0 to 1.5 sec @ 700 rpm

Hydraulics

  • Pump: Single vane (manual) / dual vane (automated)
  • Pump capacity (manual): 38 gpm @ 1200 rpm
  • Pump capacity (automated), body: 20 gpm @ 700 rpm
  • Pump capacity (automated), arm: 16 gpm @ 700 rpm
  • Max. operating pressure: 3,000 psi
  • Max. operating pressure (single axle chassis): 2,000 psi
  • Oil reservoir (conventional cab): 65 gal

Controls

  • Arm controls: Proportional joystick, electric over hydraulic

Dimensions & Weights

  • Overall width (in.): 102

Options

  • Dual Helping-Hand configuration
  • Split body: 50/50, 40/60 or 60/40
  • Split chute on comingle units, controlled by a hydraulic cylinder
