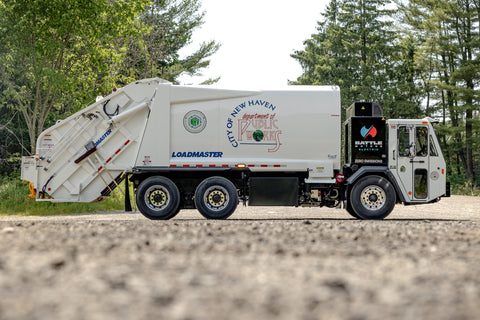

Loadmaster Excel-S rear loader with City of New Haven lettering on a tandem axle truck, passenger side view
Loadmaster Excel-S rear loader with City of New Haven lettering on a tandem axle truck, passenger side view
Loadmaster Excel-S rear loader with City of New Haven lettering, passenger side front three quarter view
Loadmaster Excel-S rear loader with City of New Haven lettering, driver side front three quarter view

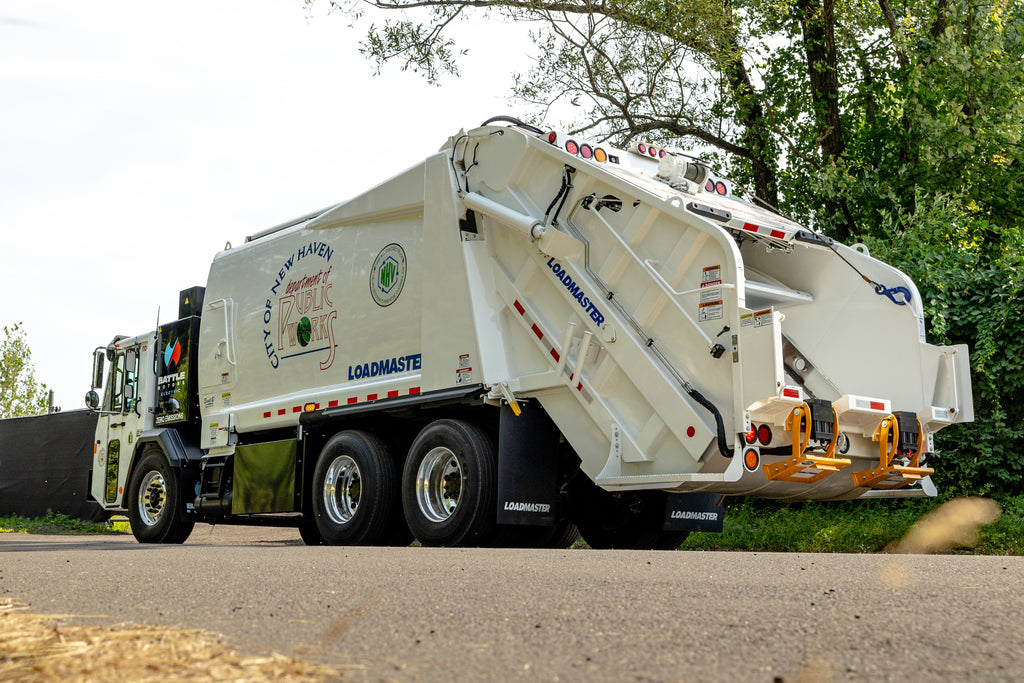

Loadmaster Excel-S rear loader with City of New Haven lettering, driver side rear three quarter view

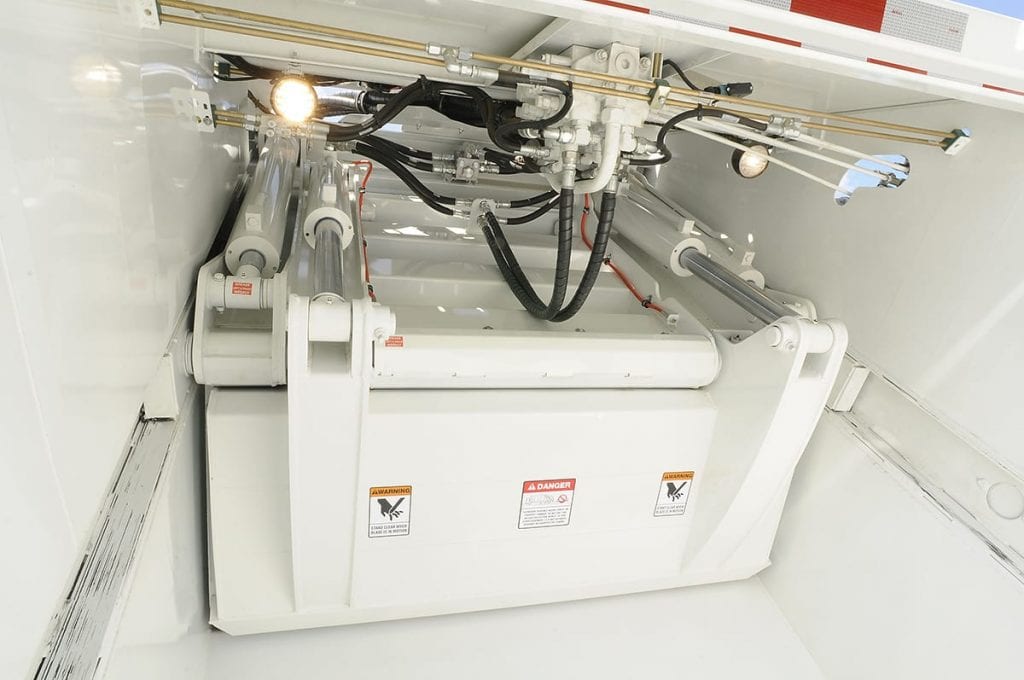

Inside the tailgate of a Loadmaster Excel rear loader with hydraulic cylinders, hoses and work lights

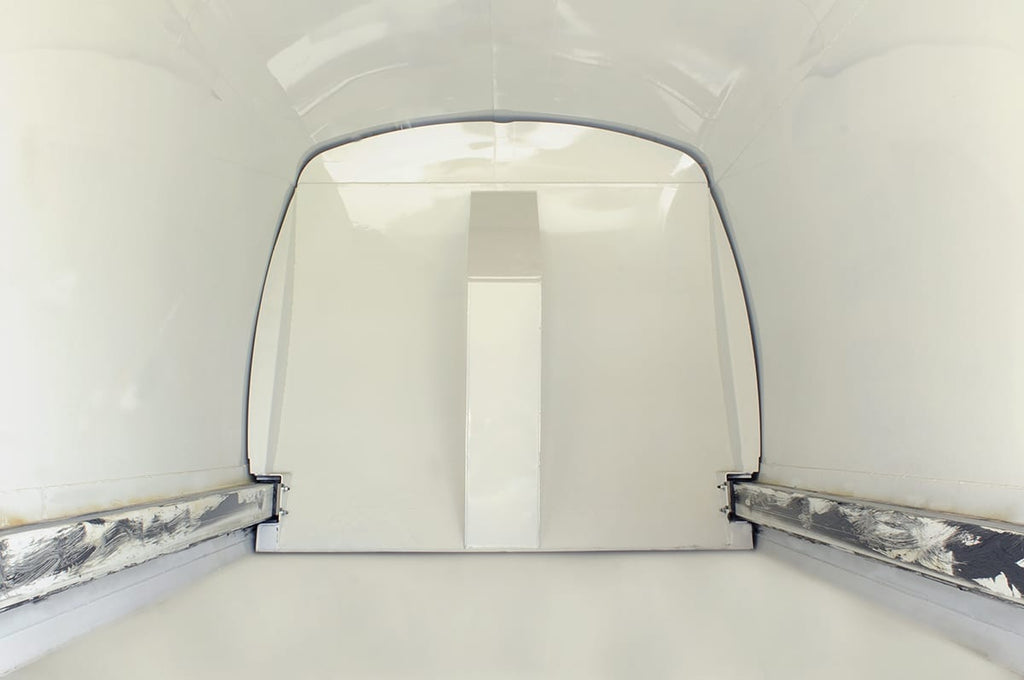

Inside the empty body of a Loadmaster Excel rear loader, looking forward at the ejector face panel

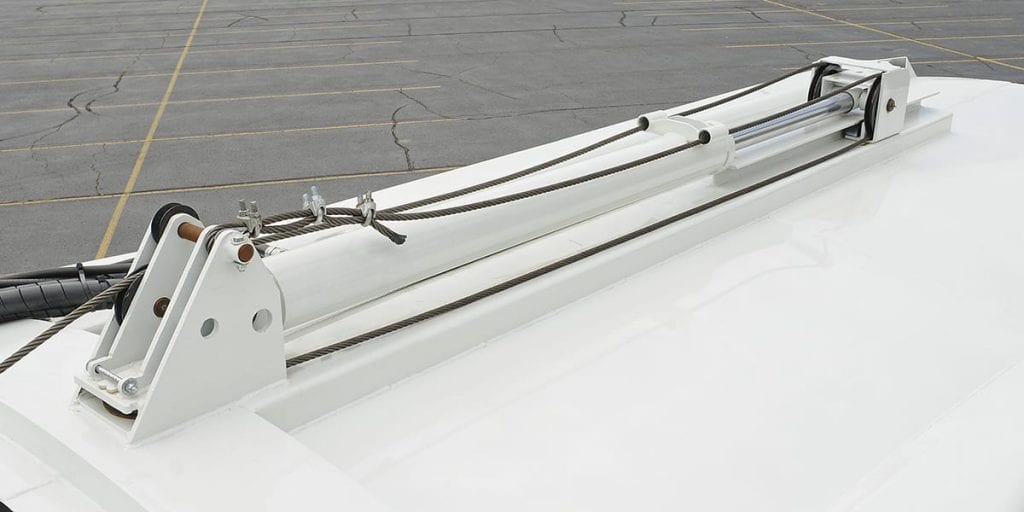

Reeving cylinder with cables and pulleys on top of a white Loadmaster Excel rear loader body
Loadmaster

Loadmaster Excel Rear Loader

description specs

Overview

The Loadmaster Excel is a high compaction body in the Loadmaster rear loader line. The Excel and Excel-S have a compaction rate of 1000 to 1250 pounds per cubic yard and a 3.7 cubic yard hopper. Excel-S body volumes are S 20, S 25, S 27, S 31 and S 33 yd.

Key Features

  • Body side access door with ladder
  • Rock chip protective coating above the rear tires, and undercoating under the body
  • Turn buckle tailgate latches and bolt on rear steps
  • Fully outfitted oil tank and rear mudflaps
  • 1/4" T-1 alloy sweep face panel on the Excel and Excel-S
  • 3/16" T-1 abrasion resistant separator panel on the Excel and Excel-S
  • Nylatron NSM and UHMW slide blade shoes
  • 3" x 8" x 1/4" boxed channel floor longitudinals

Options & Configurations

  • Excel-S body volumes: S 20 yd, S 25 yd, S 27 yd, S 31 yd and S 33 yd
  • Dual clean out doors
  • Cart tippers, cart lifters, commercial container lifting and multiple container handling
  • Remote grease lines and zerks
  • Strobe lights and additional lighting
  • Frame mounted oil tank
  • Clear coat paint
  • Tag axles

Applications

Applications include refuse and recycling.

Related Parts & Accessories

Specifications

  • Compaction rate (Excel and Excel-S): 1000 to 1250 pounds per cubic yard
  • Hopper capacity (Excel and Excel-S): 3.7 yd
  • Body volumes (Excel-S): S 20 yd, S 25 yd, S 27 yd, S 31 yd, S 33 yd
  • Depth of hopper (Excel and Excel-S): 20 1/4"
  • Hopper below chassis frame (Excel and Excel-S): 24 1/4"
  • Hopper inside width (Excel and Excel-S): 75"
  • Hopper opening height (Excel and Excel-S): 60"
  • Load sill below chassis frame (Excel and Excel-S): 4"
  • Overall width (Excel and Excel-S): 95 3/4"
  • Rear of body to rear of tailgate (Excel and Excel-S): 94"
  • Overall length (Excel-S S 20 yd): 262"
  • Overall length (Excel-S S 25 yd): 288"
  • Overall length (Excel-S S 27 yd): 301"
  • Overall length (Excel-S S 31 yd): 328"
  • Overall length (Excel-S S 33 yd): 340"
  • Approximate body weight, lbs. (Excel-S S 20 yd): 15,100
  • Approximate body weight, lbs. (Excel-S S 25 yd): 16,000
  • Approximate body weight, lbs. (Excel-S S 27 yd): 16,400
  • Approximate body weight, lbs. (Excel-S S 31 yd): 17,200
  • Approximate body weight, lbs. (Excel-S S 33 yd): 17,500
  • Chassis minimum GVWR (Excel-S S 20 yd): 46,000
  • Chassis minimum front AWR (Excel-S S 20 yd): 12,000
  • Chassis minimum rear AWR (Excel-S S 20 yd): 34,000
  • Chassis CT (Excel-S S 20 yd): 132"
  • Chassis minimum AF (Excel-S S 20 yd): 26"
  • Chassis minimum GVWR (Excel-S S 25 yd): 52,000
  • Chassis minimum front AWR (Excel-S S 25 yd): 12,000
  • Chassis minimum rear AWR (Excel-S S 25 yd): 40,000
  • Chassis CT (Excel-S S 25 yd): 158"
  • Chassis minimum AF (Excel-S S 25 yd): 26"
  • Chassis minimum GVWR (Excel-S S 27 yd): 54,000
  • Chassis minimum front AWR (Excel-S S 27 yd): 12,000
  • Chassis minimum rear AWR (Excel-S S 27 yd): 42,000
  • Chassis CT (Excel-S S 27 yd): 170"
  • Chassis minimum AF (Excel-S S 27 yd): 26"
  • Chassis minimum GVWR (Excel-S S 31 yd): 60,000
  • Chassis minimum front AWR (Excel-S S 31 yd): 16,000
  • Chassis minimum rear AWR (Excel-S S 31 yd): 44,000
  • Chassis CT (Excel-S S 31 yd): 192"
  • Chassis minimum AF (Excel-S S 31 yd): 26"
  • Chassis minimum GVWR (Excel-S S 33 yd): 62,000
  • Chassis minimum front AWR (Excel-S S 33 yd): 18,000
  • Chassis minimum rear AWR (Excel-S S 33 yd): 44,000
  • Chassis CT (Excel-S S 33 yd): 204"
  • Chassis minimum AF (Excel-S S 33 yd): 26"
  • Body sides (Excel and Excel-S): 8 gauge grade 80
  • Body roof (Excel and Excel-S): 8 gauge grade 80
  • Body floor (Excel): 7 gauge
  • Body floor (Excel-S): 3/16"
  • Floor longitudinals (Excel and Excel-S): 3" x 8" x 1/4" boxed channel
  • Ejector track channel (Excel and Excel-S): 1/4" elevated channel
  • Separator panel (Excel and Excel-S): 3/16" T-1 abrasion resistant
  • Ejector face panel (Excel): 10ga high tensile
  • Ejector face panel (Excel-S): 3/16" Grade 50
  • Ejector shoes (Excel): UHMW main shoes, Nylatron GSM
  • Ejector shoes (Excel-S): Nylatron GSM
  • Sweep face panel (Excel and Excel-S): 1/4" T-1 alloy
  • Slide face panel (Excel): 7 gauge Grade 80
  • Slide face panel (Excel-S): 3/16" Grade 80
  • Slide blade shoes (Excel and Excel-S): Nylatron NSM and UHMW
  • Upper tailgate sides (Excel and Excel-S): 3/16" in sweep zone, 10 gauge above

Features

  • Body side access door and ladder
  • Rock chip protective coating above rear tires
  • Undercoating under body
  • Turn buckle tailgate latches
  • Rear mudflaps
  • Fully outfitted oil tank
  • Bolt on rear steps

Options

  • Dual clean out doors
  • Remote grease lines and zerks
  • Cart tippers and cart lifters
  • Commercial container lifting
  • Multiple container handling
  • Strobe lights
  • Additional lighting
  • Frame mounted oil tank
  • Clear coat paint
  • Tag axles
