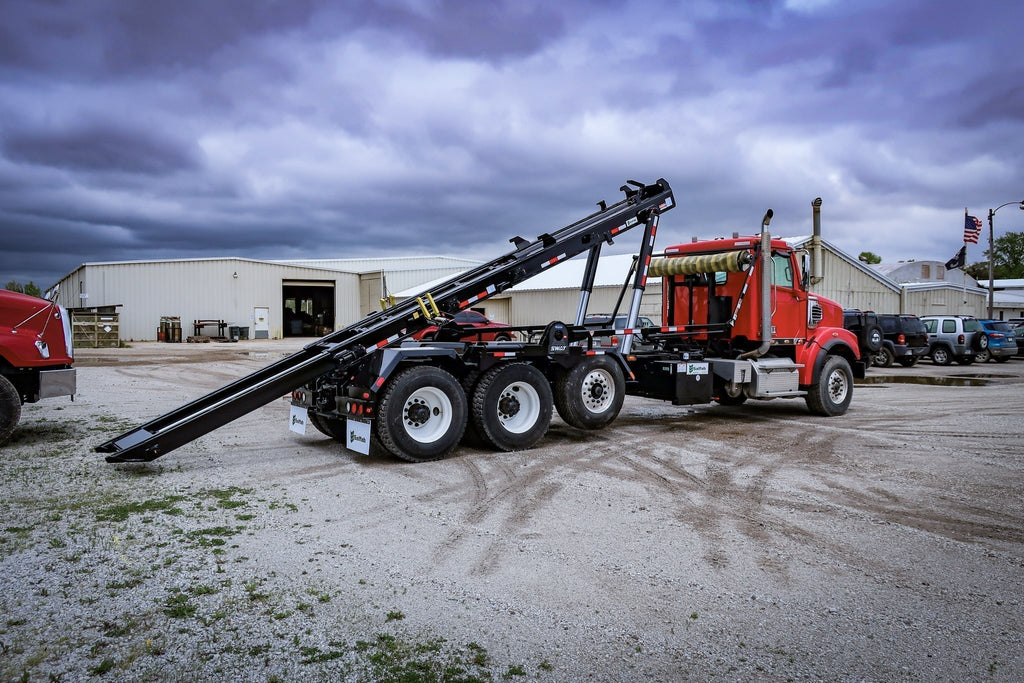

Galfab roll-off hoist partly raised on a red truck, passenger side rear three quarter view
Galfab roll-off hoist partly raised on a red truck, passenger side rear three quarter view

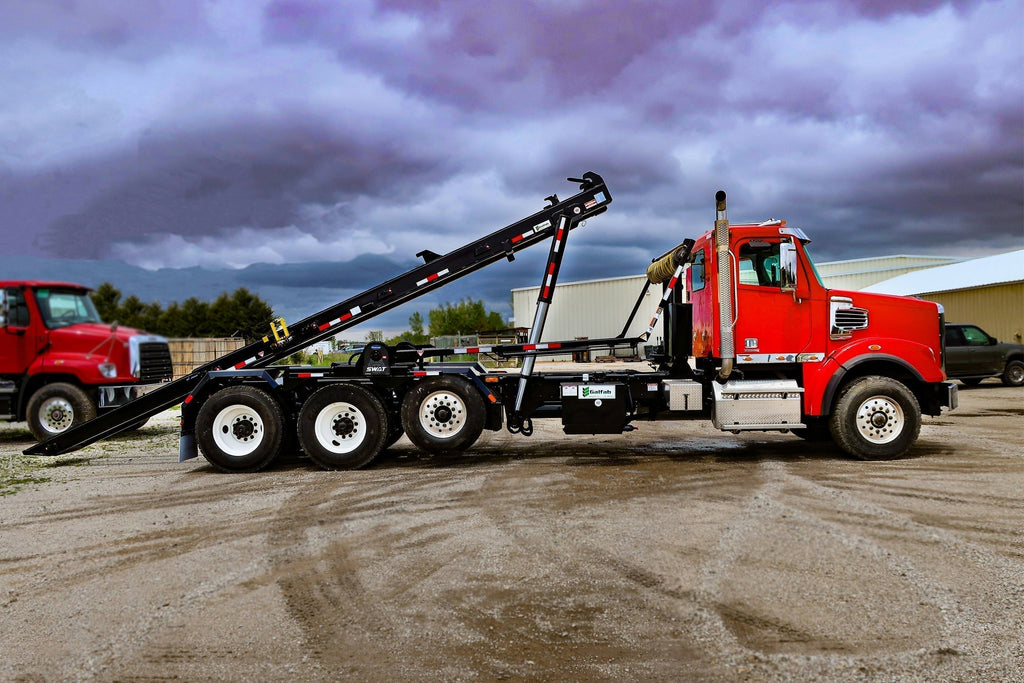

Galfab roll-off hoist partly raised on a red truck, passenger side view

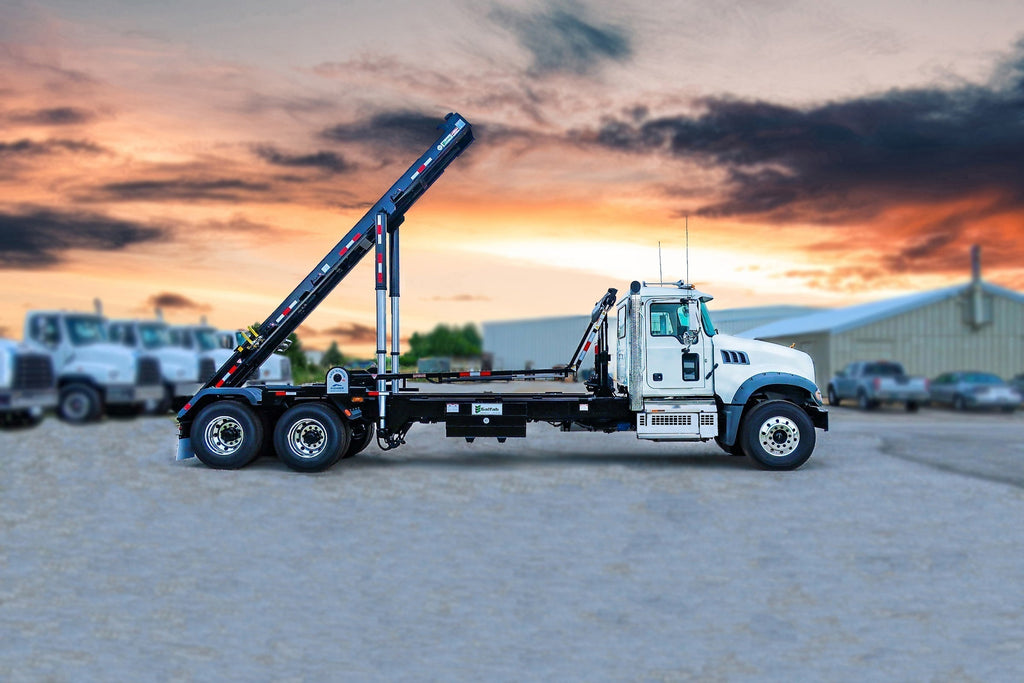

Galfab roll-off hoist raised on a white truck, passenger side view
Galfab

Galfab EX75174T121 Extendible Tail Hoist

description specs

Overview

The Galfab EX75174T121 is an Extendible Tail Hoist with an 80" sliding tail that gives a low loading angle. Its factory developed cycle times are 35 seconds up, 29 seconds down, 41 seconds on and 28 seconds off, and may vary. The winch cylinder is 7" x 4" x 79.5" DA.

Key Features

  • 80" extendible tail that slides out for a low loading angle
  • 1/2" x 3 1/2" wear strip on top
  • Outboard supported side rollers whose greasable shafts come out with two bolts
  • Interchangeable 10" vertical and horizontal sheaves
  • 48 gallon oil reservoir with sight and temperature gauge, and 25 micron filtration
  • Inside and outside controls
  • 7/8" cable with swivel eye hook
  • Hoist up warning light, hoist up alarm and backup alarm

Options & Configurations

  • Side roller on tail
  • Wings on tail
  • Behind cab and oversize oil tanks
  • Tool boxes
  • Auxiliary stops
  • Poly or steel fenders
  • Aluminum fenders
  • Tarping systems
  • Hooker hold on systems
  • Ratchet tie down straps
  • PTO
  • Drop shaft
  • Rear view camera systems
  • Work lights
  • Onboard scale systems
  • Integrated hydraulics, where a hydraulic tarping system is used

Applications

The EX75174T121 is used for loading in areas with low overhead clearance.

Related Parts & Accessories

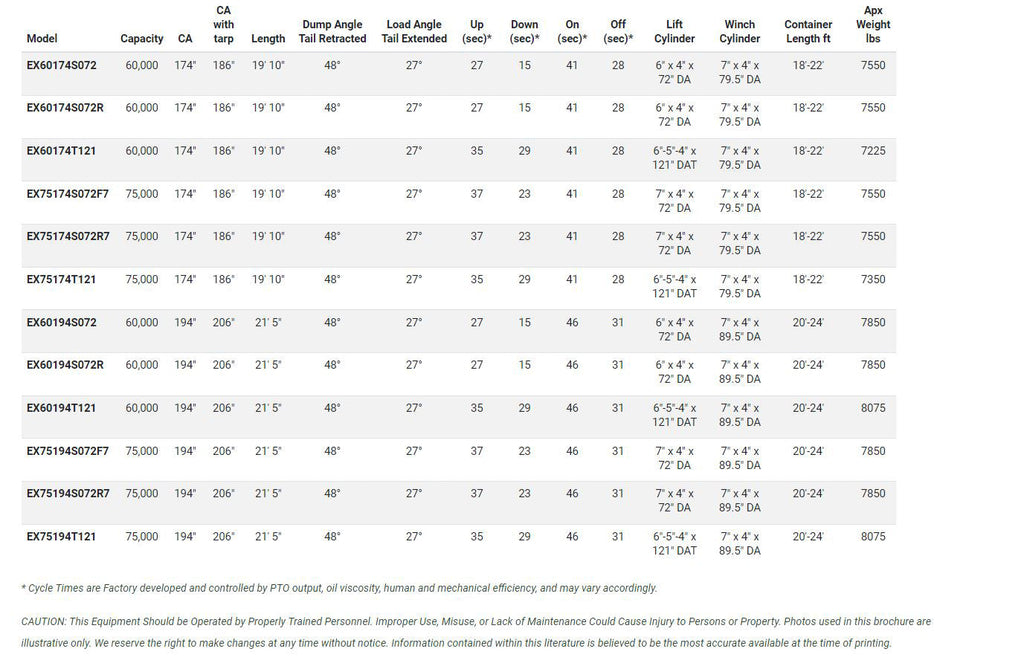

Specifications

  • Cycle time, up: 35 sec
  • Cycle time, down: 29 sec
  • Cycle time, on: 41 sec
  • Cycle time, off: 28 sec
  • Cycle times: factory developed and may vary
  • Winch cylinder: 7" x 4" x 79.5" DA

Features

  • 80" extendible tail
  • Sliding tail
  • Low loading angle
  • Outboard supported side rollers; each greasable shaft comes out by removing two bolts
  • 1/2" x 3 1/2" wear strip on top
  • 2 1/2" diameter rear hinge
  • All working points greaseable
  • Pintle ready apron
  • 1" spring loaded container locks
  • 2 1/2" diameter lift cylinder shafts
  • Interchangeable 10" vertical and horizontal sheaves
  • 3/8" x 3" winch cylinder rod covers
  • 6 inboard and outboard supported outside rollers
  • 48 gallon oil reservoir with sight and temperature gauge
  • 25 micron filtration
  • Front mount pump
  • Inside and outside controls
  • 7/8" cable with swivel eye hook
  • LED lighting system
  • Sealed wiring system
  • Hoist up warning light
  • Hoist up alarm
  • Backup alarm

Options

  • Side roller on tail
  • Wings on tail
  • Behind cab and oversize oil tanks
  • Tool boxes
  • Auxiliary stops
  • Poly or steel fenders
  • Aluminum fenders
  • Tarping systems
  • Hooker hold on systems
  • Ratchet tie down straps
  • PTO
  • Drop shaft
  • Rear view camera systems
  • Work lights
  • Onboard scale systems
  • Integrated hydraulics, where a hydraulic tarping system is used
