Pipe Range: 8" to 24"+ | Flow: 50 to 120 GPM | Pressure: 1700 to 3000 PSI | Tier Three

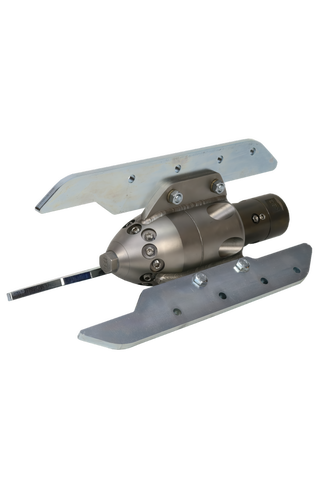

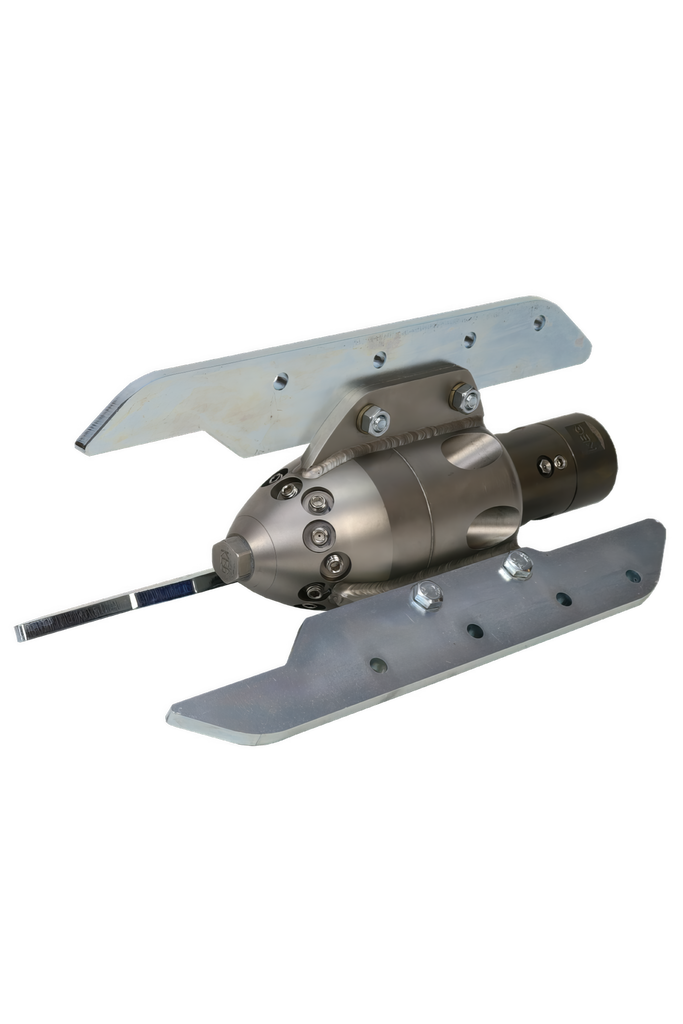

The KEG Equalizer Nozzle is a specialty Tier Three nozzle built to virtually eliminate blowing toilets during sewer cleaning. Its 12 forward jets at dual angles clean the line and form an umbrella pattern that blocks the airflow behind blowouts, reducing the vacuum effect in the pipe. That helps cut down on residential cleanup and complaints.

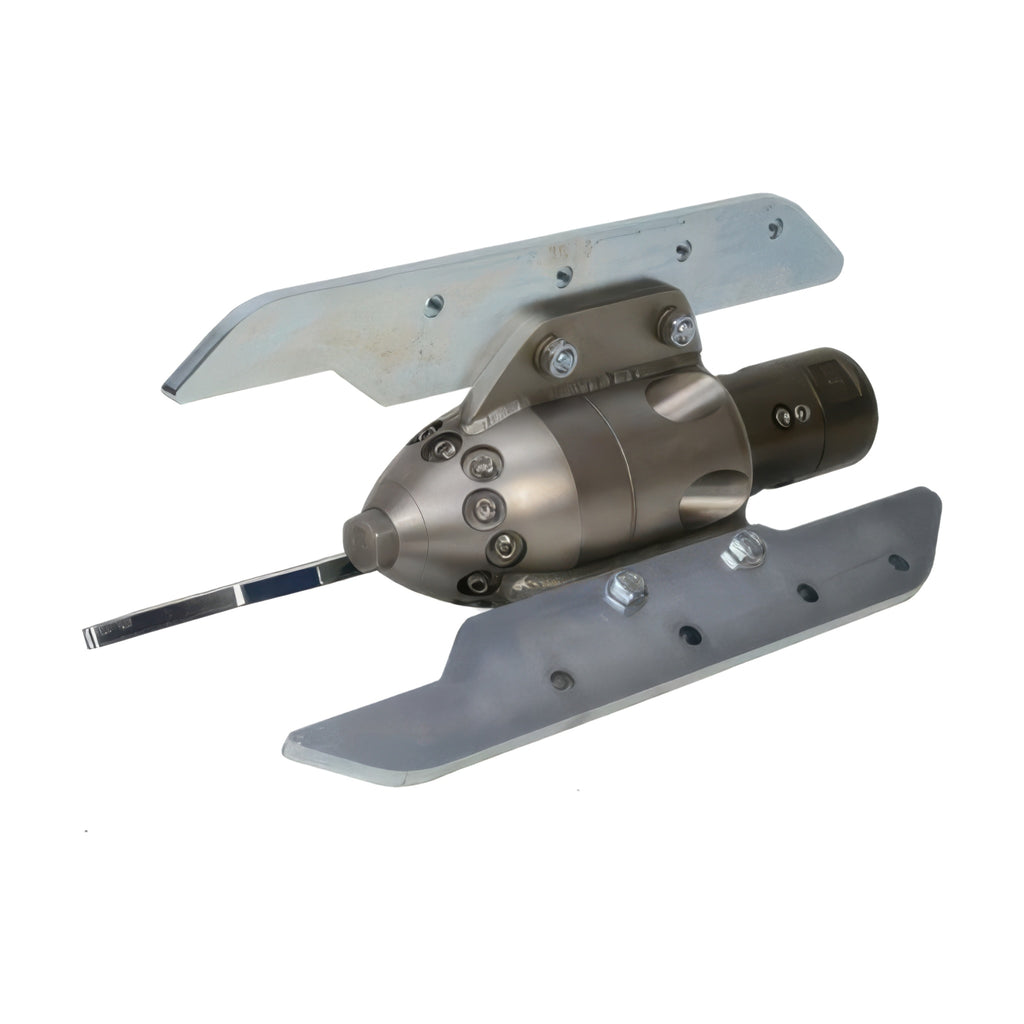

Six rearward jets provide propulsion, cleaning and debris removal, and the body is made of highly wear resistant stainless steel with replaceable titanium ceramic inserts in M8 and M14. Bolt-on skids are included and increase the body diameter to 8"; stainless steel skids are standard, or plastic can be specified at order. A high pressure swivel is also included, with the swivel size specified at the time of order.
Advantages
- Virtually eliminates blowing toilets
- Works with as little as 50 GPM
- 12 forward jets reduce the vacuum effect
- Replaceable titanium ceramic inserts
- Bolt-on skids and high pressure swivel included
- Wear resistant stainless steel body
Applications
- Sanitary sewer lines
- Shallow lines with blowing or sucking events
- Problem lines
- Reducing residential cleanup
- General line cleaning
Sizes and KEG Part Numbers
| Size |
KEG Part No. |
Inserts |
Insert Size |
Dimensions |
Weight (lb) |
Pipe Range |
| 1" |
100045 |
12 front, 6 back |
M8, M14 |
6 1/2" x 4 3/4" |
17.1 |
From 8" |
| 1 1/4" |
100046 |
Not listed |
Not listed |
Not listed |
Not listed |
Not listed |
Choosing the Right Version
- Specify skid material at order: stainless steel (standard) or plastic.
- Specify the high pressure swivel size at order.
- The nozzle is offered in 1" (100045) and 1 1/4" (100046) sizes, with titanium ceramic inserts only.
- KEG lists replacement skids (three per nozzle), distance plates, mounting hardware and M8 and M14 titanium ceramic inserts as Equalizer accessories.
How to Order Online
Select the size above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
