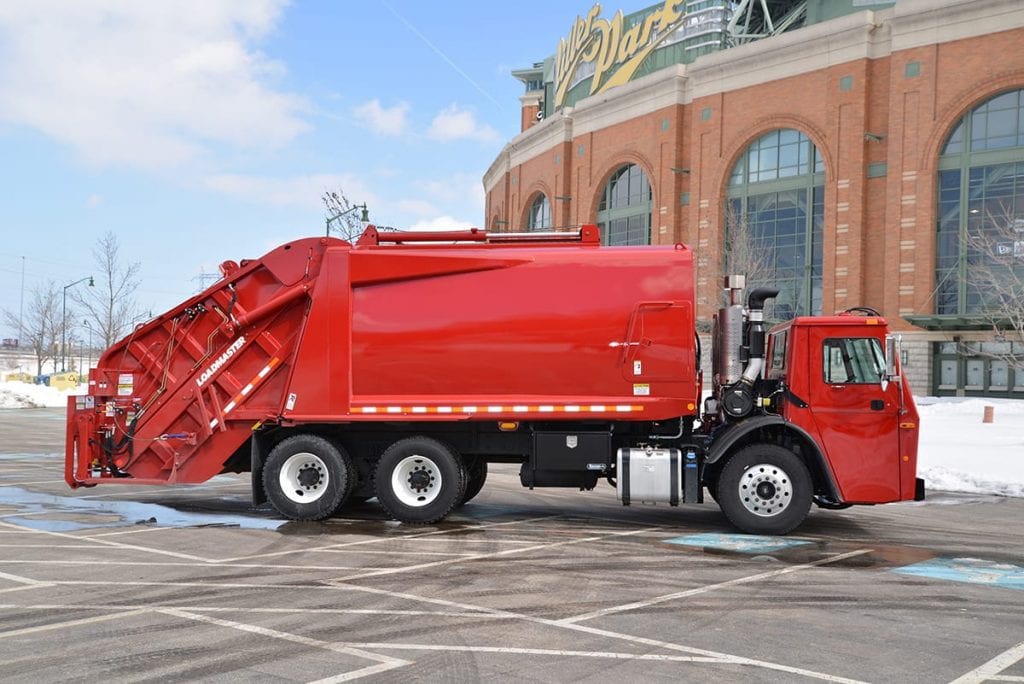

Loadmaster rear loader on a red tandem axle truck, passenger side view
Loadmaster rear loader on a red tandem axle truck, passenger side view

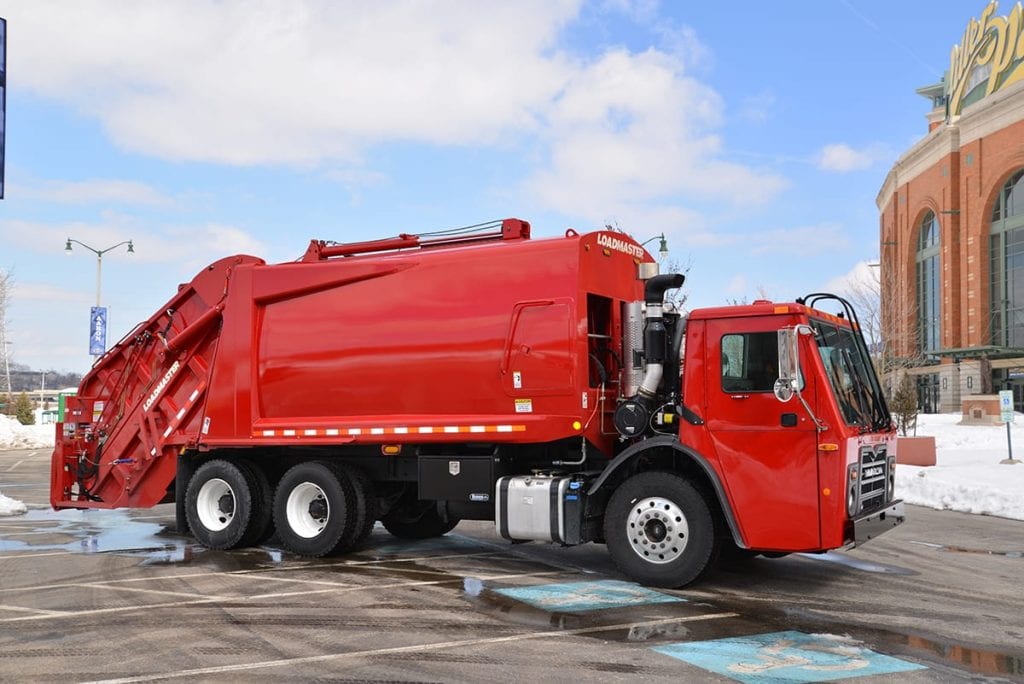

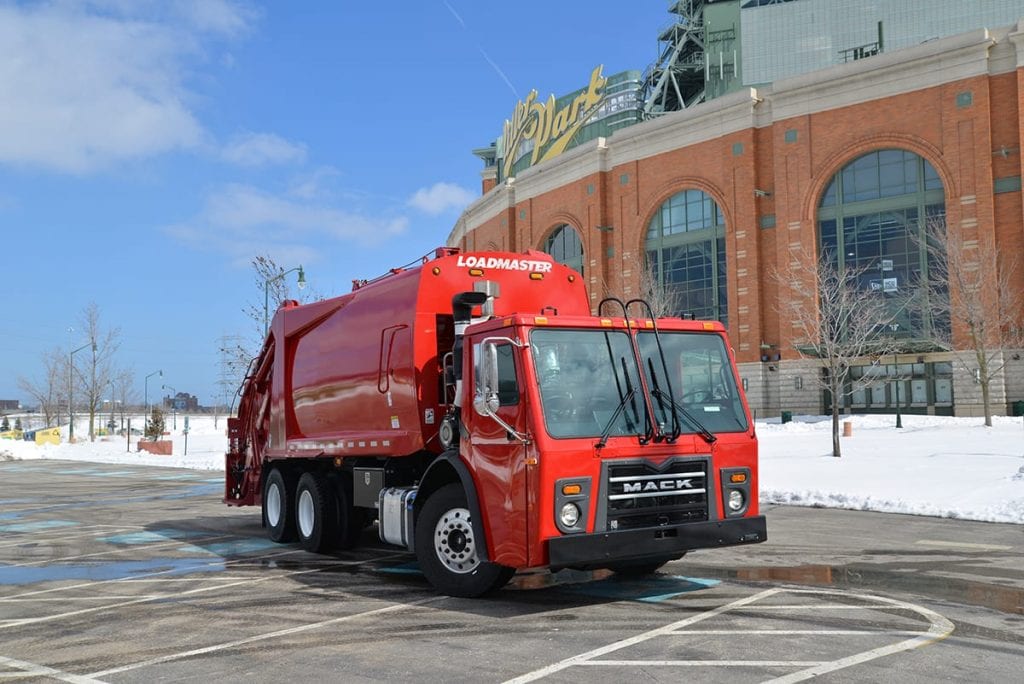

Loadmaster rear loader on a red tandem axle truck, passenger side front three quarter view
Loadmaster rear loader on a red tandem axle truck, passenger side front three quarter view
Loadmaster

Loadmaster Enviromaster DT Rear Loader

description specs

Overview

Loadmaster builds the Enviromaster DT as a dual tailgate rear loader, used on dual stream collection routes. Body volumes are 16, 18 and 20 yd on a single rear axle chassis and 20, 25 and 27 yd on a tandem axle chassis.

Key Features

  • Separate packing controls outside each tailgate
  • Separate body control valves on each side for payload eject, tailgate locks and tailgate lift
  • Body access doors on both sides, standard
  • 60-gallon oil tank mounted on the frame, standard
  • Inner tailgate remote zerks, standard
  • 3/16" Hardox 450 hopper floor, hopper sides and lower tailgate sides
  • Nylatron NSM ejector shoes and slide blade shoes

Options & Configurations

  • Single rear axle chassis: 16, 18 and 20 yd bodies
  • Tandem axle chassis: 20, 25 and 27 yd bodies
  • Triple tailgate and sweep base end remote zerks
  • Ejector remote zerk

Applications

Dual stream collection routes.

Related Parts & Accessories

Specifications

  • Body volumes, single rear axle: 16 yd, 18 yd, 20 yd
  • Body volumes, tandem axle: 20 yd, 25 yd, 27 yd
  • Overall length, single rear axle, 16 yd: 222"
  • Overall length, single rear axle, 18 yd: 239"
  • Overall length, single rear axle, 20 yd: 250"
  • Approximate body weight, single rear axle, 16 yd: 19,100 lbs
  • Approximate body weight, single rear axle, 18 yd: 19,500 lbs
  • Approximate body weight, single rear axle, 20 yd: 19,900 lbs
  • Overall length, tandem axle, 20 yd: 250"
  • Overall length, tandem axle, 25 yd: 273"
  • Overall length, tandem axle, 27 yd: 289"
  • Approximate body weight, tandem axle, 20 yd: 20,400 lbs
  • Approximate body weight, tandem axle, 25 yd: 21,100 lbs
  • Approximate body weight, tandem axle, 27 yd: 21,500 lbs
  • Height above chassis frame, single rear axle: 97 1/2"
  • Height above chassis frame, tandem axle: 97 1/2"
  • Depth of hopper, single rear axle: 19"
  • Depth of hopper, tandem axle: 19"
  • Hopper below chassis frame, single rear axle: 25 1/2"
  • Hopper below chassis frame, tandem axle: 25 1/2"
  • Hopper opening height, single rear axle: 58"
  • Hopper opening height, tandem axle: 58"
  • Overall width, single rear axle: 96"
  • Overall width, tandem axle: 96"
  • Rear of body to rear of tailgate, single rear axle: 82"
  • Rear of body to rear of tailgate, tandem axle: 82"
  • Load sill below chassis frame, single rear axle: 2 1/2"
  • Load sill below chassis frame, tandem axle: 2 1/2"
  • Height above frame with gate raised, single rear axle: 174"
  • Height above frame with gate raised, tandem axle: 174"
  • Hopper inside width, single rear axle: 31 1/2" for 40, 41 1/2" for 60
  • Hopper inside width, tandem axle: 31 1/2" for 40, 41 1/2" for 60
  • Hopper capacity, single rear axle: 1.1 yd for 40, 1.7 yd for 60
  • Hopper capacity, tandem axle: 1.1 yd for 40, 1.7 yd for 60
  • Minimum GVWR, single rear axle, 16 yd: 40,000
  • Minimum front AWR, single rear axle, 16 yd: 12,000
  • Minimum rear AWR, single rear axle, 16 yd: 28,000
  • CA, single rear axle, 16 yd: 128"
  • Minimum AF, single rear axle, 16 yd: 34"
  • Minimum GVWR, single rear axle, 18 yd: 42,000
  • Minimum front AWR, single rear axle, 18 yd: 14,000
  • Minimum rear AWR, single rear axle, 18 yd: 28,000
  • CA, single rear axle, 18 yd: 140"
  • Minimum AF, single rear axle, 18 yd: 34"
  • Minimum GVWR, single rear axle, 20 yd: 45,000
  • Minimum front AWR, single rear axle, 20 yd: 14,000
  • Minimum rear AWR, single rear axle, 20 yd: 31,000
  • CA, single rear axle, 20 yd: 152"
  • Minimum AF, single rear axle, 20 yd: 34"
  • Minimum GVWR, tandem axle, 20 yd: 48,000
  • Minimum front AWR, tandem axle, 20 yd: 12,000
  • Minimum rear AWR, tandem axle, 20 yd: 36,000
  • CT, tandem axle, 20 yd: 136"
  • Minimum AF, tandem axle, 20 yd: 24"
  • Minimum GVWR, tandem axle, 25 yd: 50,000
  • Minimum front AWR, tandem axle, 25 yd: 12,000
  • Minimum rear AWR, tandem axle, 25 yd: 38,000
  • CT, tandem axle, 25 yd: 158"
  • Minimum AF, tandem axle, 25 yd: 24"
  • Minimum GVWR, tandem axle, 27 yd: 52,000
  • Minimum front AWR, tandem axle, 27 yd: 12,000
  • Minimum rear AWR, tandem axle, 27 yd: 40,000
  • CT, tandem axle, 27 yd: 170"
  • Minimum AF, tandem axle, 27 yd: 24"
  • Body sides, single rear axle and tandem axle: 8 gauge grade 80
  • Body floor, single rear axle and tandem axle: 3/16" AR 400
  • Body roof, single rear axle and tandem axle: 8 gauge grade 80
  • Floor longitudinals, single rear axle and tandem axle: 3" x 10" x 3/16" boxed channel
  • Ejector track channel, single rear axle and tandem axle: 1/4" elevated channel
  • Lower tailgate sides, single rear axle and tandem axle: 3/16" Hardox 450
  • Upper tailgate sides, single rear axle and tandem axle: 3/16" Hardox 450 in sweep zone, 10 gauge grade 80 above
  • Hopper floor, single rear axle and tandem axle: 3/16" Hardox 450
  • Separator panel, single rear axle and tandem axle: 3/16" AR 235 abrasion resistant
  • Ejector face panel, single rear axle and tandem axle: 3/16" Grade 50
  • Ejector shoes, single rear axle and tandem axle: Nylatron NSM
  • Sweep face panel, single rear axle and tandem axle: 3/16" T-1 alloy
  • Slide face panel, single rear axle and tandem axle: 7 gauge Grade 80
  • Slide blade shoes, single rear axle and tandem axle: Nylatron NSM
  • Hopper sides: 3/16" Hardox 450
  • Oil tank: 60-gallon frame mounted
  • Suction filter: 100 mesh
  • Return filter: 10 micron microglass tank top

Features

  • Inner tailgate remote zerks standard
  • Packing controls on the outside of each tailgate
  • Body access doors standard on both sides
  • Independent body control valves for payload-eject, tailgate locks and tailgate lift functions for each side

Options

  • Triple tailgate and sweep base end remote zerks
  • Ejector remote zerk
