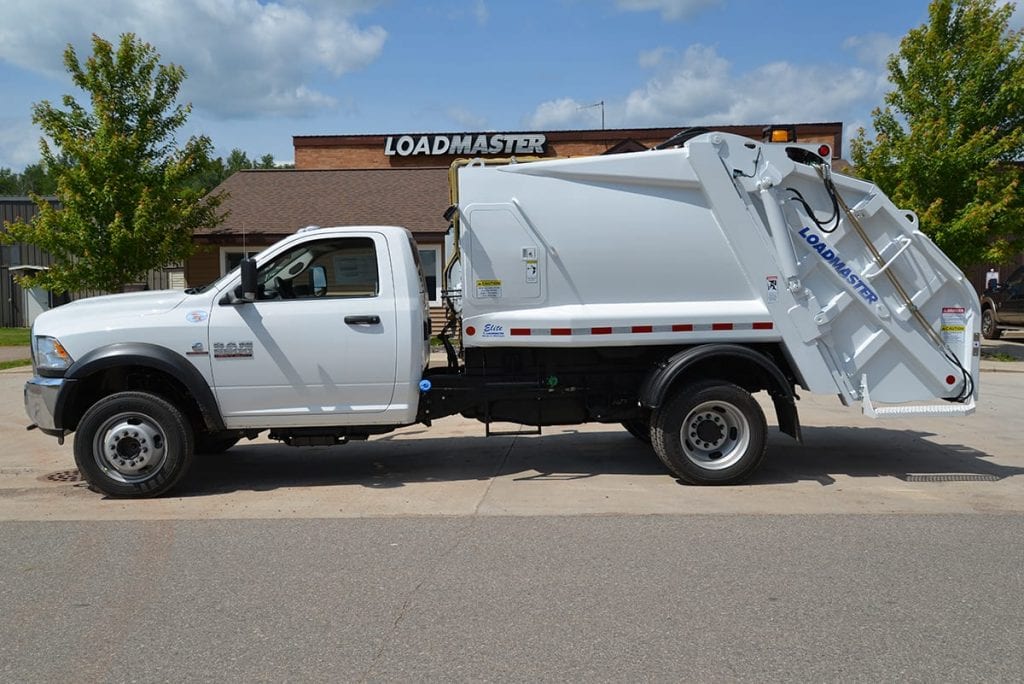

Loadmaster Elite rear loader on a white single rear axle truck, driver side view
Loadmaster Elite rear loader on a white single rear axle truck, driver side view

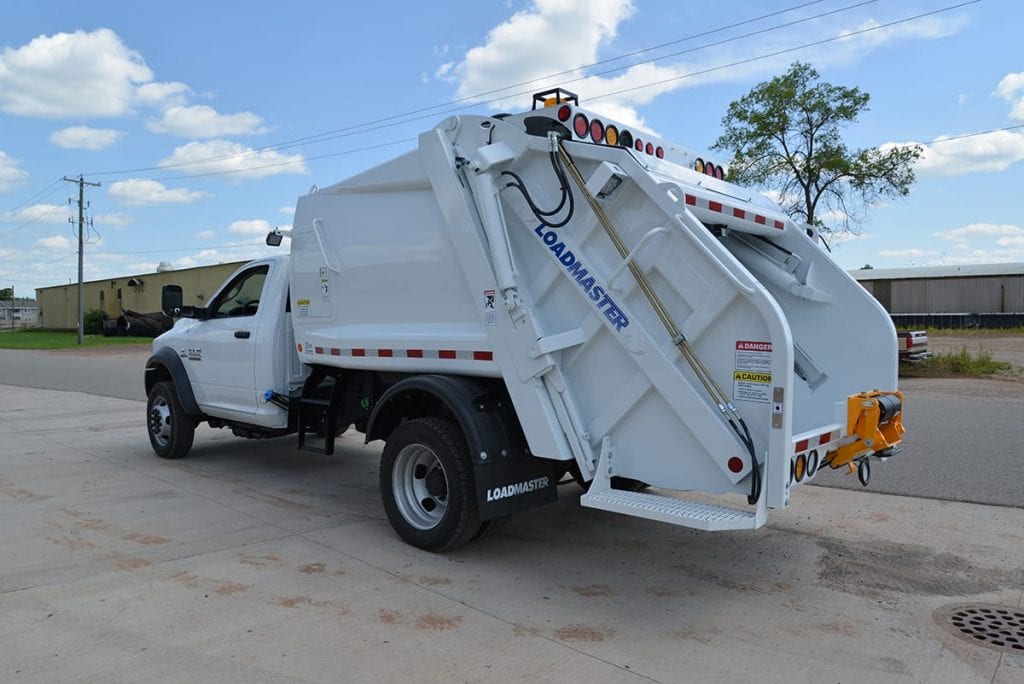

Loadmaster Elite rear loader on a white single rear axle truck, driver side rear three quarter view

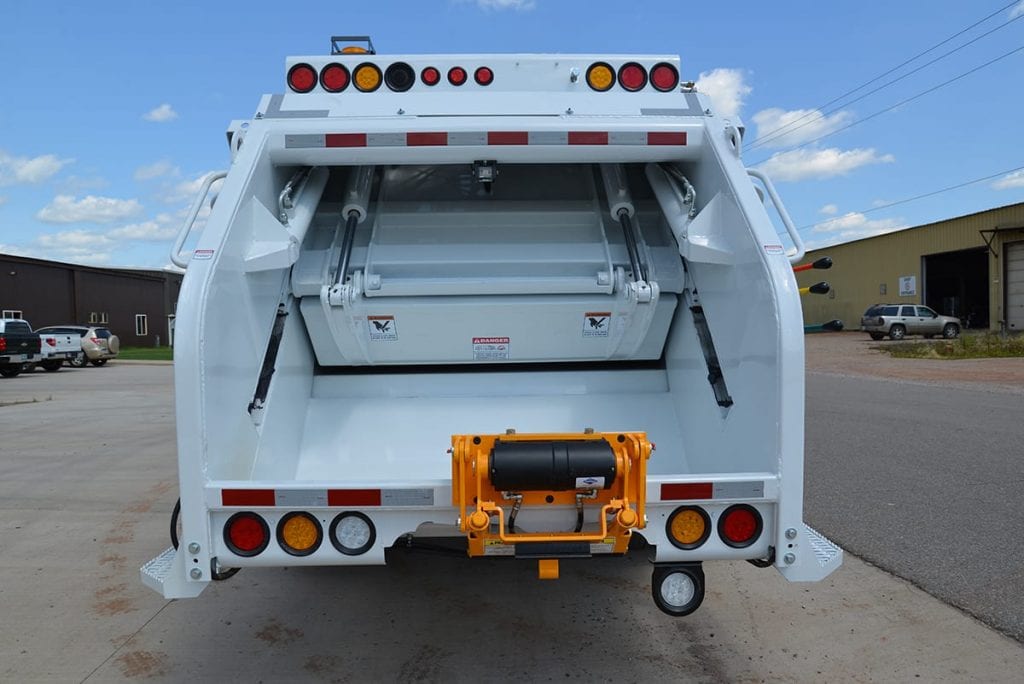

Rear view of a Loadmaster Elite rear loader showing the empty hopper
Loadmaster

Loadmaster Elite Rear Loader

description specs

Overview

The Loadmaster Elite is a refuse body in the Loadmaster rear loader line, offered in 6, 8, 10 and 11 yd sizes. Compaction is 1000 pounds per yard, with a one yard hopper capacity, and the body goes on an under CDL chassis.

Key Features

  • Packing blades with a 3/16" sweep blade face and a 7ga slide blade face
  • Curved body sides
  • Auto locks, standard, that engage when the tailgate lift handle is operated
  • 3/16" T-1 hopper floor
  • Body access door with a ladder
  • LED lights
  • Undercoating and rear tire fenders
  • Fully outfitted oil tank and bolt-on rear steps

Options & Configurations

  • 6, 8, 10 and 11 yd sizes
  • Lighting packages with flush mount strobe systems, flashing light bars and directional indicators, plus additional lighting
  • Cart tippers and cart lifters
  • Container lifting options, commercial container lifting and a container latch kit
  • Hydraulic drum winch to lift rear load containers
  • Clear coat paint

Applications

Driveways, sidewalks and other tight areas are places the Elite can reach.

Related Parts & Accessories

Specifications

  • Body sizes: 6, 8, 10 and 11 yd
  • Compaction: 1000 pounds per yard
  • Chassis: under CDL chassis
  • Height above chassis frame, 6 yd: 69 3/4"
  • Height above chassis frame, 8 yd: 69 3/4"
  • Height above chassis frame, 10 yd: 69 3/4"
  • Height above chassis frame, 11 yd: 73 1/4"
  • Overall length, 6 yd: 161 3/4"
  • Overall length, 8 yd: 185 3/4"
  • Overall length, 10 yd: 209 3/4"
  • Overall length, 11 yd: 209 3/4"
  • Approximate body weight (lbs.), 6 yd: 7,200
  • Approximate body weight (lbs.), 8 yd: 7,700
  • Approximate body weight (lbs.), 10 yd: 8,200
  • Approximate body weight (lbs.), 11 yd: 8,500
  • Hopper capacity: one yard
  • Depth of hopper, all sizes: 13"
  • Hopper below chassis frame, all sizes: 11"
  • Hopper inside width, all sizes: 66"
  • Hopper opening height, all sizes: 41"
  • Overall width, all sizes: 85 1/2"
  • Rear of body to rear of tailgate, all sizes: 44 3/4"
  • Load sill below chassis frame, all sizes: 2"
  • Minimum GVWR, 6 yd: 17,000
  • CA, 6 yd: 85"
  • Minimum AF, 6 yd: 34"
  • Minimum GVWR, 8 yd: 21,000
  • CA, 8 yd: 108"
  • Minimum AF, 8 yd: 34"
  • Minimum GVWR, 10 yd: 25,500
  • CA, 10 yd: 134"
  • Minimum AF, 10 yd: 34"
  • Minimum GVWR, 11 yd: 25,500
  • CA, 11 yd: 134"
  • Minimum AF, 11 yd: 34"
  • Body floor: 3/16"
  • Floor longitudinals: 3" x 8" x 3/16" boxed channel
  • Ejector track channel: 1/4" elevated channel
  • Lower tailgate sides: 3/16" T-1
  • Upper tailgate sides: 10 ga grade 80
  • Hopper floor: 3/16" T-1
  • Separator panel: 3/16" T-1 abrasion resistant
  • Ejector face panel: 10 ga high tensile
  • Ejector shoes: UHMW
  • Sweep face panel: 3/16" T-1 alloy
  • Slide face panel: 7 gauge Grade 80
  • Slide blade shoes: Nylatron NSM & UHMW

Features

  • Packing blades with a 3/16" sweep blade face and a 7ga slide blade face
  • Curved body sides
  • Auto locks standard, actuated automatically when the tailgate lift handle is operated
  • Undercoating
  • Body access door
  • Ladder to access door
  • LED lights
  • Rear tire fenders
  • Fully outfitted oil tank
  • Bolt-on rear steps

Options

  • Lighting packages
  • Flush mount strobe systems, flashing light bars, directional indicators
  • Cart tippers
  • Container lifting options
  • Container latch kit
  • Hydraulic drum winch for lifting rear load containers
  • Additional lighting
  • Cart lifters
  • Commercial container lifting
  • Clear coat paint
