45° Elbow,

Overview

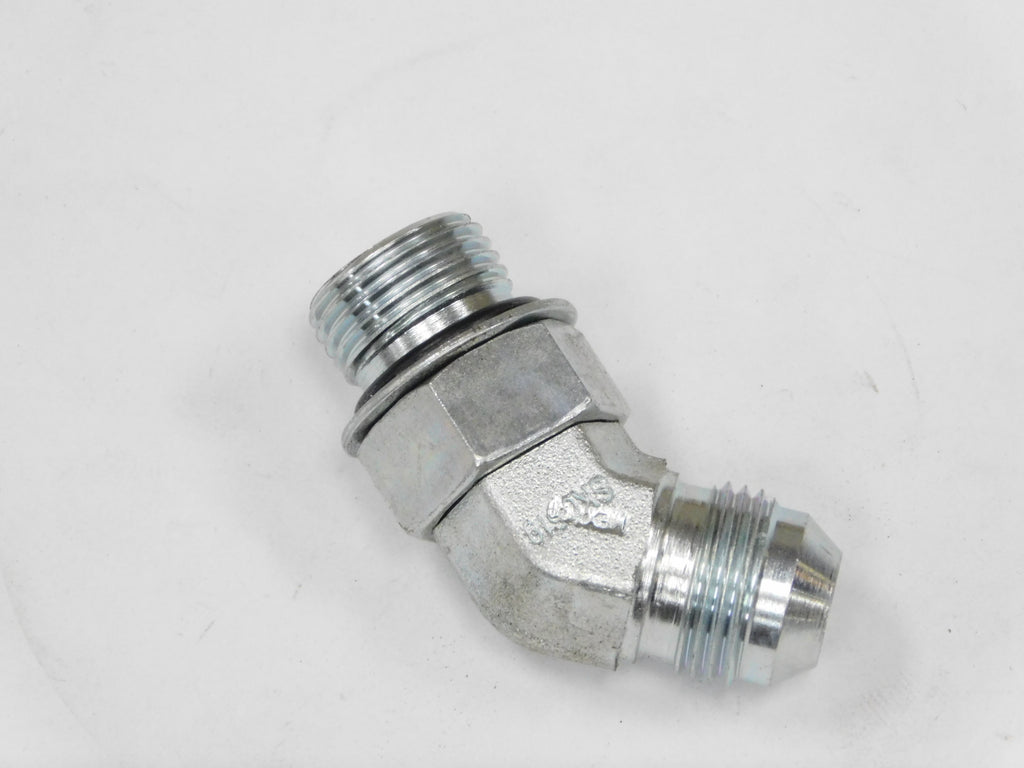

The 45° Elbow, -08 SAE Male x -08 JIC (HYF05120) is a genuine Labrie OEM part listed on the parts diagrams for Labrie Automizer and Expert side loaders, Leach 2R-III rear loaders and Wittke Starlight & Super Duty and Featherweight front loaders. It appears on 21 parts diagrams, including Tailgate Hyd's, Top Door Hyd's and Single Tailgate Hyd's. Labrie's parts catalog lists it under Hydraulic > Hydraulic Fittings.

Compatibility

Listed on these parts diagrams (item number and quantity per diagram):

• Labrie Automizer side loader
  • T.G., Single - Lift/Lock Hyd's - TTD (20 Yd. JIC, Right Hand/Alley Hand) (Section 2, page 419): item 10, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (27 Yd. JIC, Right Hand/Alley Hand) (Section 2, page 423): item 10, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (27 Yd. JIC Arctic, Right Hand/Alley Hand) (Section 2, page 427): item 10, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (31 Yd. JIC, Right Hand/Alley Hand) (Section 2, page 429): item 10, qty 2
  • T.G., Single - Lift/Lock Hyd's - FE (19Yd. JIC, Right Hand/Alley Hand) (Section 2, page 433): item 9, qty 2
  • T.G., Single - Lift/Lock Hyd's - FE (26Yd. JIC, Right Hand/Alley Hand) (Section 2, page 435): item 9, qty 2
  • T.G., Dual - Lift/Lock Hyd's - TTD (15 Yd. JIC, Right Hand) (Section 2, page 437): item 4, qty 4
  • T.G., Dual - Lift/Lock Hyd's - TTD (20 Yd. JIC, Right Hand) (Section 2, page 439): item 4, qty 4
  • Plus 2 more Labrie Automizer side loader diagrams listed under Fits Vehicles
• Labrie Expert side loader
  • Tailgate Hyd's. - Single - Prior 2014 (Section 2, page 159): item 14, qty 2
  • Single Tailgate Hyd's - W/Glass Comp. - Prior 2014 (Section 2, page 165): item 15, qty 2
  • Single Tailgate Hyd's - W/Glass Comp. - 2014 - Present (Section 2, page 167): item 11, qty 2
  • Dual Tailgate Hyd's - Prior 2014 (Section 2, page 169): item 7, qty 2
  • Dual Tailgate Hyds. - 2014 - Present (Section 2, page 171): item 8, qty 2
• Wittke Starlight & Super Duty front loader
  • Tailgate Hyd's - Front Main Valve Units - 30, 34 & 38 Yd. (Section 4, page 54): item 14, qty 3
  • Tailgate Hyd's - Side Main Valve Units - 34, 38 Yd. (Section 4, page 56): item 18, qty 2
  • Top Door Hyd's - Front Valve Units - 30, 34 & 38 Yd. (Section 4, page 60): item 11, qty 2
• Wittke Featherweight front loader
  • Tailgate Hyd's - Side Main Valve Units - 30, 34 Yd. (Section 4, page 58): item 13, qty 3
  • Top Door Hyd's - Side Main Valve Units - 30 & 34 (Section 4, page 64): item 15, qty 2
• Leach 2R-III rear loader
  • Tailgate Hyd's - JIC (Tailgate Remote Cab Cyl. Latch) (Section 4, page 115): item 9, qty 4

Parts Support

Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
