Pipe Range: 2" to 12" | Hose: 1/4" to 1 1/4" | Tier Two Fluid Mechanics

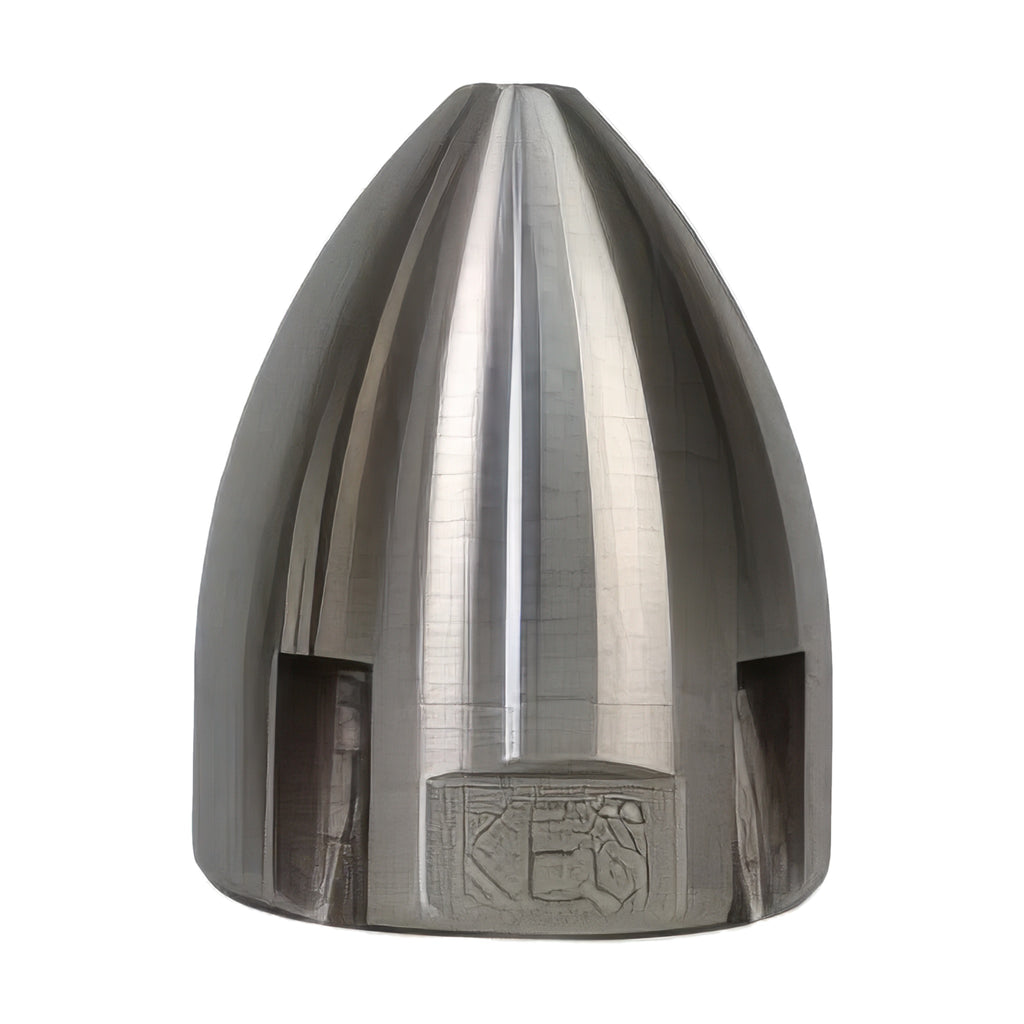

The KEG Egg Nozzle is a light, agile Tier Two nozzle for all-around residential sewer cleaning and flushing. It steps up from KEG's drilled Standard Nozzle by using replaceable steel or titanium ceramic inserts in a 300 series hardened stainless steel body.
Jets come in a 15 degree version for flushing or a 30 degree version for cleaning. The 3/8" through 1 1/4" sizes carry 4 or 6 rear inserts plus 1 forward insert and cover 2" to 12" pipe, and a 1/4" size is also offered with steel inserts.
Advantages
Replaceable inserts instead of drilled jets extend nozzle life
Choice of 15 degree or 30 degree jets
Optional forward penetrating jet
300 series hardened stainless steel body
Wear resistant
Applications
Sanitary sewer cleaning
Residential lines
Flushing with 15 degree jets
Cleaning with 30 degree jets
Sizes and KEG Part Numbers
Size
KEG Part No.
Inserts
Insert Size
Weight (lb)
Dimensions
Pipe Range
1/4"
100210
Not listed
Not listed
Not listed
Not listed
Not listed
3/8"
100211
6 rear, 1 forward
M5
0.6
2" x 1 1/2"
2" to 6"
1/2"
100212
4 rear, 1 forward
M6
0.6
2" x 1 1/2"
2" to 6"
3/4"
100213
4 rear, 1 forward
M6
2.5
4" x 2 3/8"
3" to 8"
1"
100214
4 rear, 1 forward
M8
3.2
4 1/4" x 2 3/4"
4" to 10"
1 1/4"
100215
6 rear, 1 forward
M8
2.3
5" x 3"
4" to 12"
Choosing the Right Version
Pick the jet angle for the job: KEG lists 15 degree jets for flushing and 30 degree jets for cleaning. Both versions share the same KEG part number, so the jet angle must be specified on the order.
The 1/4" and 3/8" sizes are offered with steel inserts only. The 1/2" through 1 1/4" sizes can be ordered with titanium ceramic or steel inserts under the same KEG part number.
KEG states its replaceable forward jet nozzles now include an additional blank steel insert. With the blank installed the Egg runs as a cleaning nozzle; the forward jet insert adds penetrating ability.
How to Order Online
Select the size, jet angle and insert material above. Before Add to Cart unlocks, enter your jetter's flow in gallons per minute (GPM), its operating pressure (PSI) and the length of your jet hose in feet. SECI uses these numbers to order the correct nozzle from KEG. KEG list pricing includes the nozzle, its inserts and the drill point where the nozzle has one.
