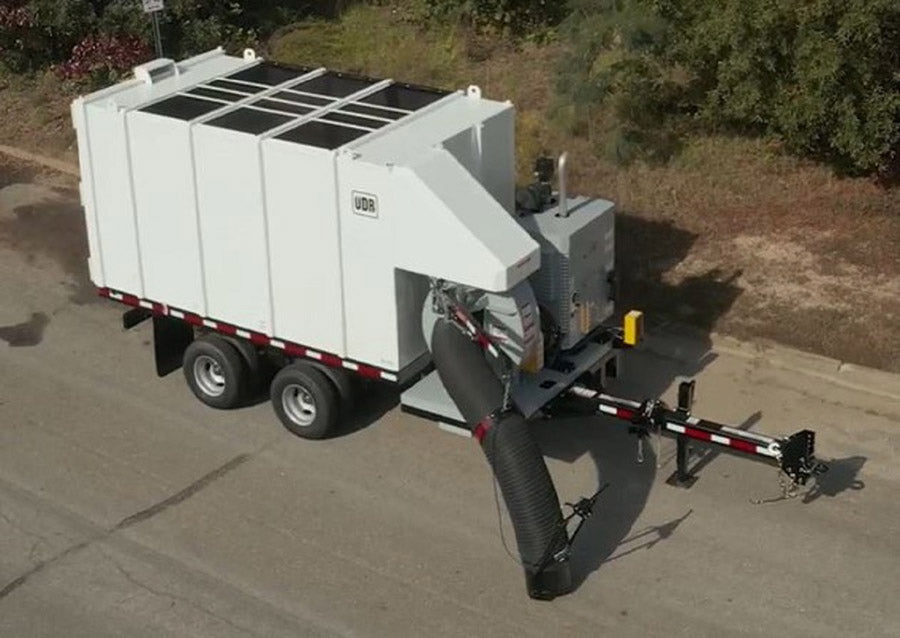

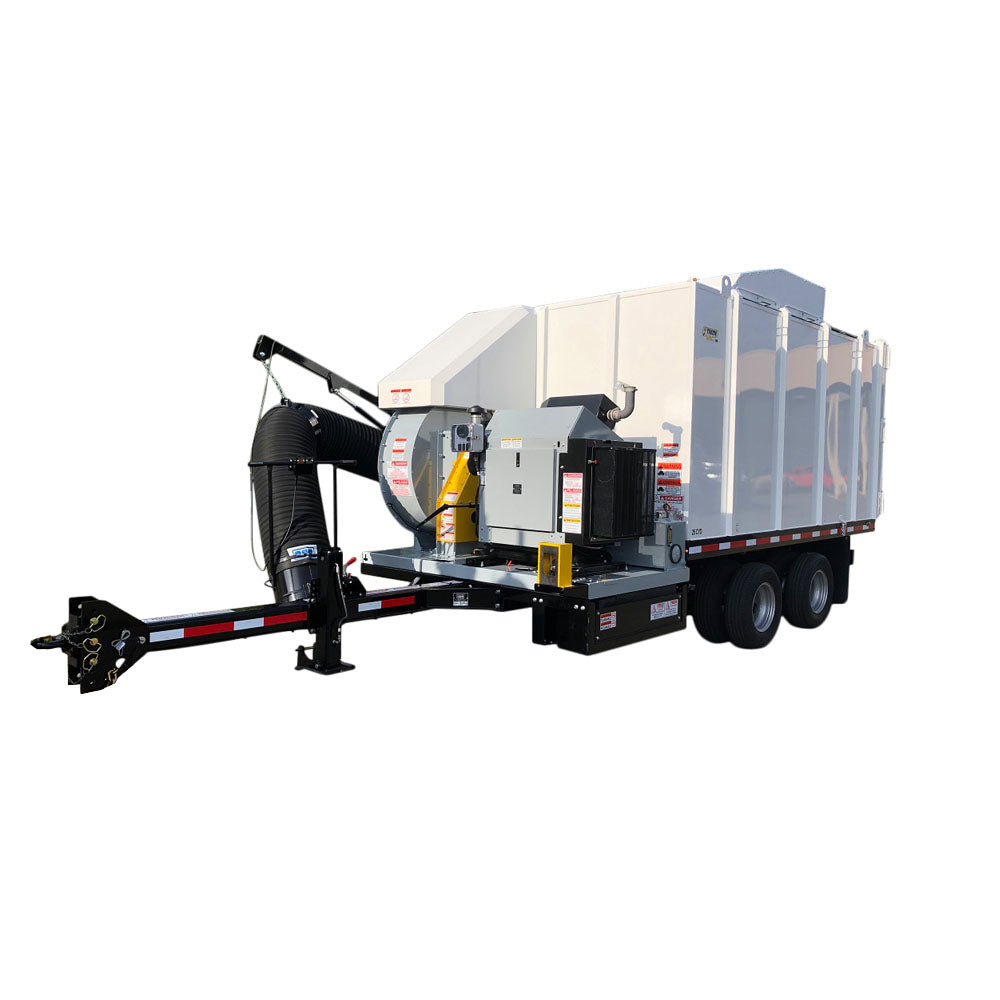

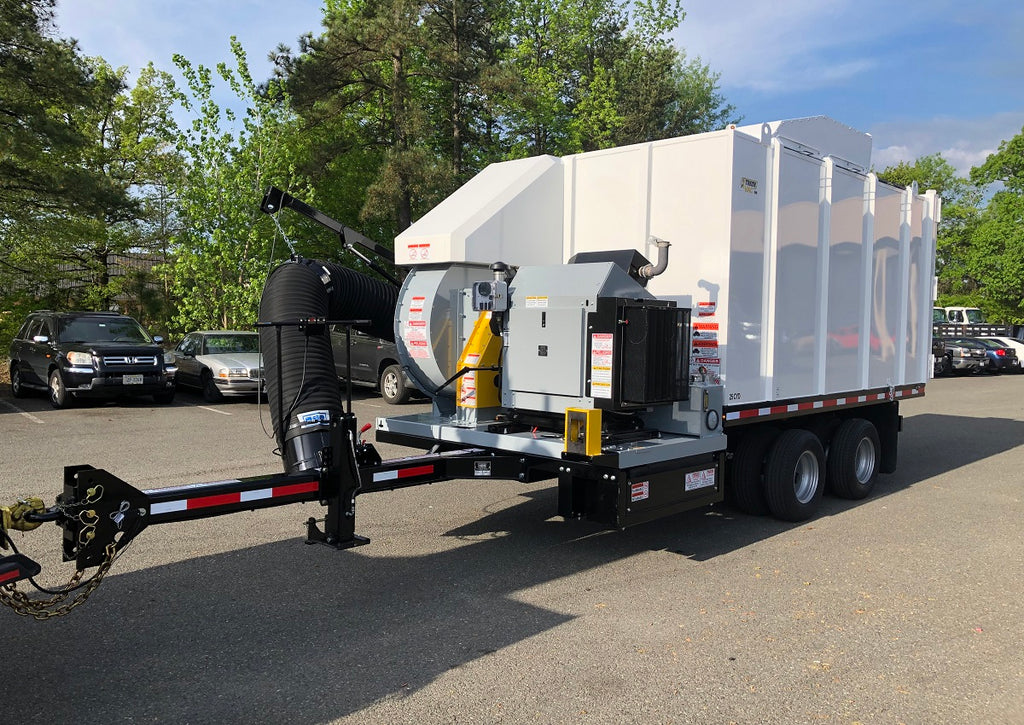

DCL800TM

Self-Contained Leaf Box Trailer

• Fully height adjustable with 3 quick-release pins

Axles

• 20CY: dual 5" leaf spring; 20,000 LBS
• 25/30CY: dual 5" leaf spring; 24,000 LBS
• Electric brakes with breakaway actuator

Tires

• 20/25/30CY: (8) tires; steel wheels
• Parking jack

Auxiliary engine

• Standard 3.8L 87HP gas engine
• Optional 74 HP Tier 4 engine
• Pleated, boxed radiator air screen; access without tools
• 40-gallon polyethylene fuel tank
• Optional ECO-MODE for 2 and 3-axis configurations

Engine/Vacuum System Skid

• Tab-and-slot construction throughout
• All metal laser-cut

Boom/Hose

• Single Axis: nozzle-mounted hydraulic controls
• Powered raising; flow-controlled gravity lowering
• 2 and 3-axis options available
• Optional remote control for 2 and 3-axis configurations
• Hydraulically powered 12V system
• 16" x 120" flexible rubber vacuum hose
• Optional urethane vacuum hose
• Steel nozzle

Clutch

• PTO engagement and disengagement
• 13" automotive-style clutch
• 2.25" shaft
• 4-groove power band drive
• Belt drive
• Adjustable clutch
• Clutch shutoff for dump mode

Fan / Impeller

• PTO engagement and disengagement
• Optional SHRED-MASTER fan; 40% compaction
• Scalloped fan design
• Back plate protects bearings and shaft
• Self-clearing fan
• Robotically welded, stress-relieved, statically and dynamically balanced fans
• AR400 material

Fan Housing

• Robotically welded housing
• Safety-interlocked cleanout door
• Replaceable 1/4" steel liners

Fan Bearings

• Sealed bearings
• External grease zerks with high-pressure feed lines

Rear Door

• Barn-door style rear door
• Optional chipper door
• Manual operator control
• Fan disengagement for door latching

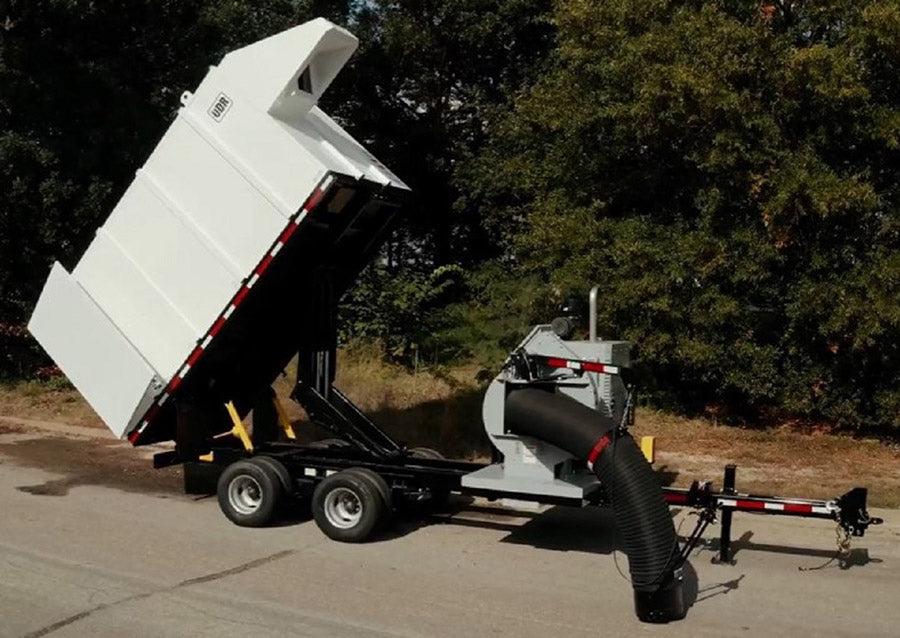

• 52 degree dump angle
• DOT LED lighting with two amber flashers

Hopper Construction

• 11-gauge steel hopper
• Integrated floor drainage
• Regular perforated steel with mesh overlay vents
• Optional perforated steel vents
• Standard white paint; custom paint available

Hoist

• Hoist welded into the frame

Dimensions

• Total Length, 20YD: 23'-1 1/8"
• Total Length, 25YD: 26'-1/8"
• Total Length, 30YD: 28'-11 1/8"
• Total Height: 10'-6 1/2"
• Total Length w/ Skid, 20YD: 14'-8 3/4"
• Total Length w/ Skid, 25YD: 17'-7 3/4"
• Total Length w/ Skid, 30YD: 20'-6 3/4"
• Height from Chassis Frame: 8'-6 3/4"
