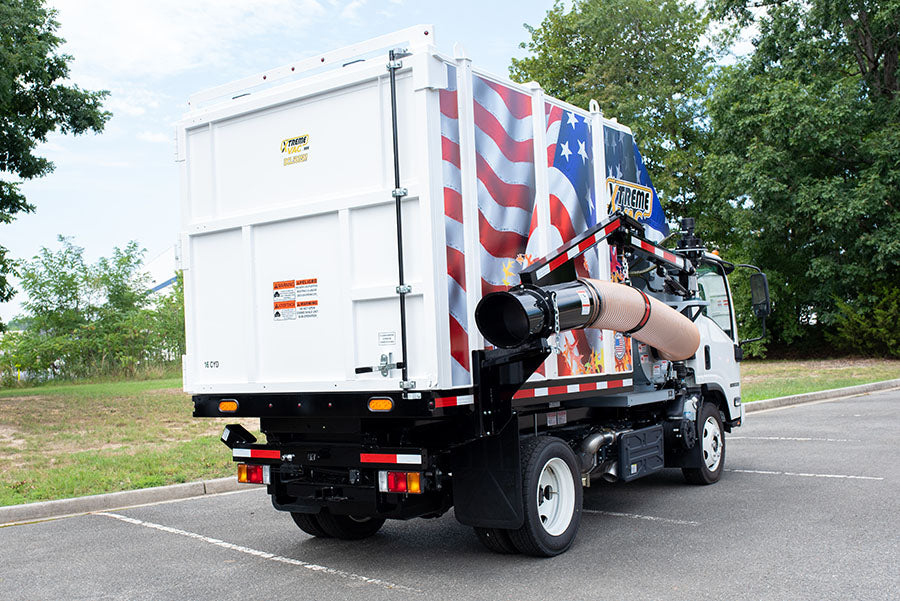

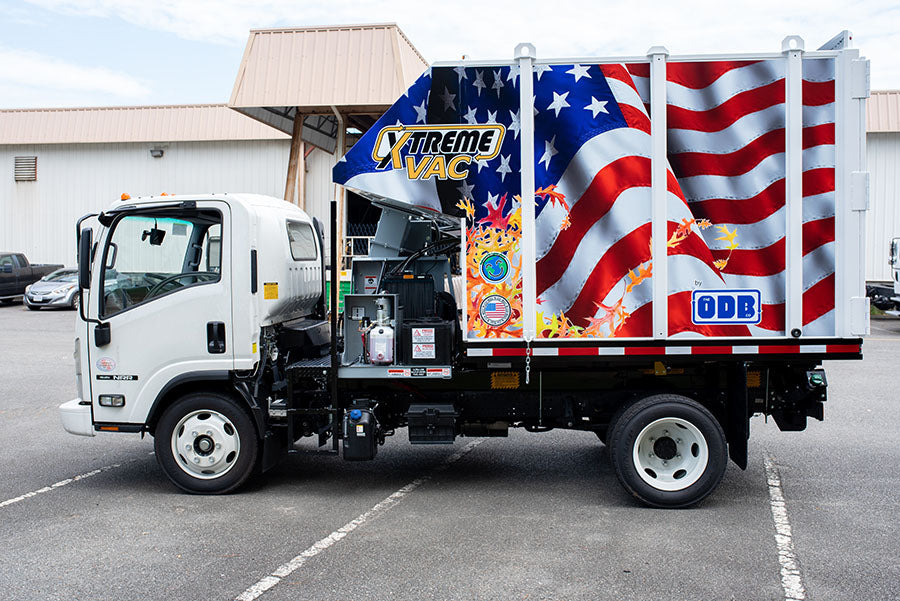

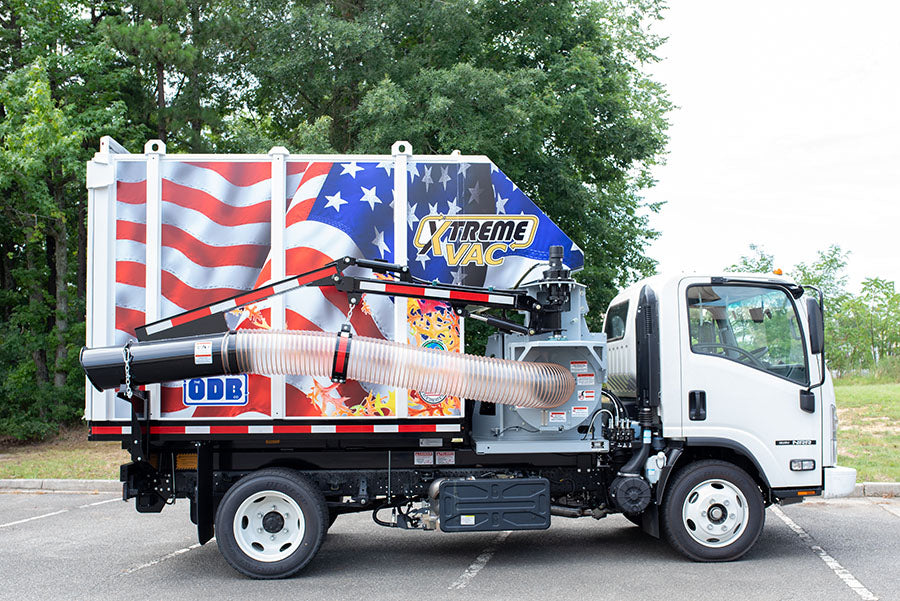

ODB’s patented DCL500SM is a CDL-exempt truck-mounted debris collection platform that gives municipalities or contractors maximum flexibility (and control) over debris and leaf collection operations. It’s a single-operator, easy-to-use platform with in-cabin controls that anyone can drive. Plus, ODB’s patented ECO-MODE™ comes standard and helps reduce fuel consumption by 35%, which can save upwards of $2,500 per month in operating costs.

Auxiliary Engine

  • Water-cooled Kubota 24HP Diesel engine
  • In-cab remote throttle, 2-speed electronic
  • Pull-out radiator screen
  • Patented ECO-MODE™ system controls which reduce fuel consumption upwards of 35% (~3.1 fewer gal/hr, 15-18 less gallons per day), noise (50%), dust (40%), and wear & tear
  • 12-gallon poly fuel tank

Engine/Vacuum System Skid

  • Engine exhausts through the floor of the skid
  • Skid ladder and handrail
  • Diamond plate catwalk
  • Tab and Slot construction throughout
  • All metal laser-cut for precision

Boom/Hose

  • Single Operator, In-cab controls
  • 3-axis Standard with wheel type planetary gearbox with gear motor
  • Aux engine powered pump
  • 12” Urethane Vacuum Hose
  • Steel nozzle with replaceable tip
  • Boom rest on chassis
