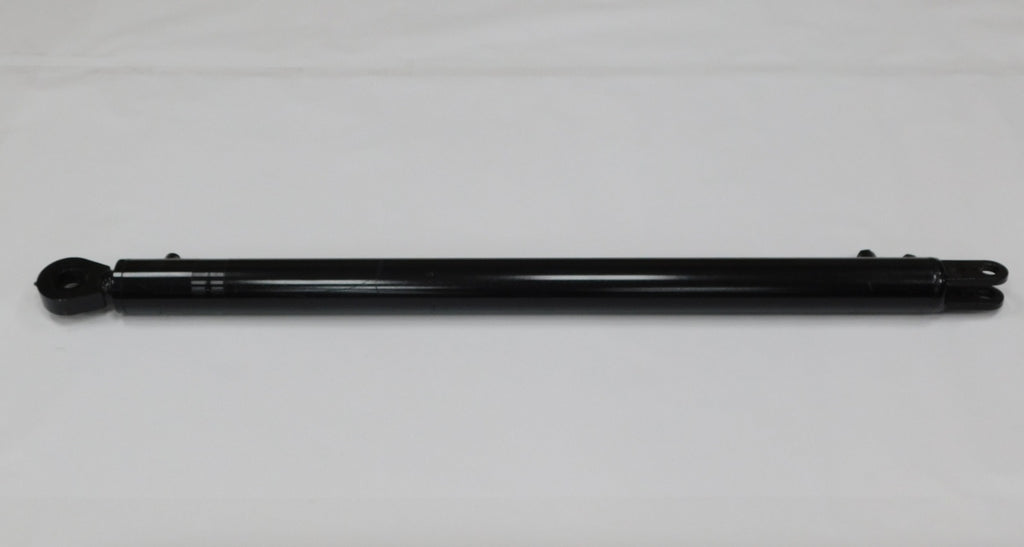

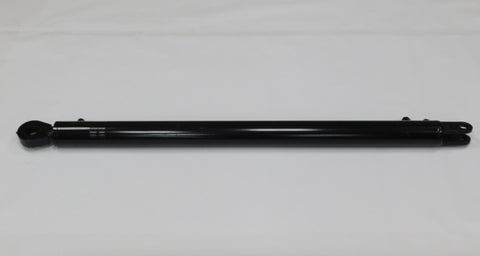

Tailgate Cylinder, 2.5 Bore x 39 Stroke (HYC00320-04)

Overview

Part HYC00320-04 (Tailgate Cylinder, 2.5 Bore x 39 Stroke) is a genuine Labrie OEM part listed on parts diagrams for Labrie Automizer and Expert side loaders and Wittke front loaders. It appears on 23 parts diagrams. Labrie's parts catalog lists it under Hydraulic Cylinder.

Compatibility

Listed on these parts diagrams (item number and quantity per diagram):

• Labrie Automizer side loader
  • Tailgate Assy. - Latch, Prop, & Body Pivot Pins (Section 1, page 229): item 25, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (15 Yd. JIC, Right Hand/Alley Hand) (Section 2, page 417): item 19, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (20 Yd. JIC, Right Hand/Alley Hand) (Section 2, page 419): item 19, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (20 Yd. ORFS, Right Hand/Alley Hand) (Section 2, page 421): item 20, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (27 Yd. JIC, Right Hand/Alley Hand) (Section 2, page 423): item 19, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (27 Yd. ORFS, Right Hand/Alley Hand) (Section 2, page 425): item 20, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (27 Yd. JIC Arctic, Right Hand/Alley Hand) (Section 2, page 427): item 19, qty 2
  • T.G., Single - Lift/Lock Hyd's - TTD (31 Yd. JIC, Right Hand/Alley Hand) (Section 2, page 429): item 19, qty 2
  • Plus 9 more Labrie Automizer side loader diagrams listed under Fits Vehicles
• Labrie Expert side loader
  • Tailgate Assy & TG Latch Assy - Full (Section 1, page 23): item 5, qty 2
  • Tailgate Assy & TG Latch Assy - Split (Section 1, page 25): item 28, qty 2
  • Tailgate Lift Cylinder (Section 5, page 227): item 1, qty 2
• Wittke Starlight & Super Duty front loader
  • Tailgate Hyd's - Front Main Valve Units - 30, 34 & 38 Yd. (Section 4, page 54): item 20 (For Component Parts See Section 7), qty 2
  • Tailgate Hyd's - Side Main Valve Units - 34, 38 Yd. (Section 4, page 56): item 15 (For Component Parts See Section 7), qty 2
• Wittke front loader
  • Tailgate Open/Lock Cylinder - HYC00320-04 (Section 7, page 138): item 3, qty 1

Parts Support

Not sure this is the right part? Call SECI at (203) 933-9599 with your body model and serial number, or use the parts request form.
