OZIII-S Pan, Tilt & Zoom Camera

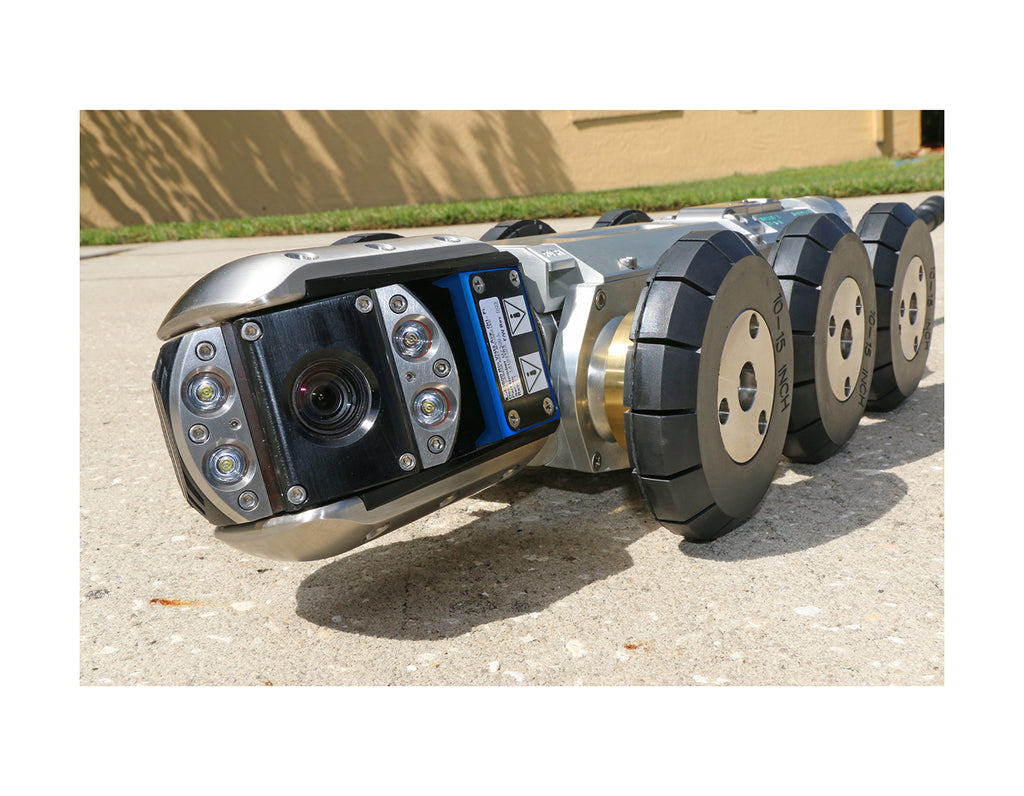

CUES OZIII-S pan tilt zoom camera on a wheeled crawler, front three-quarter view
CUES OZIII-S pan tilt zoom camera on a wheeled crawler, front three-quarter view

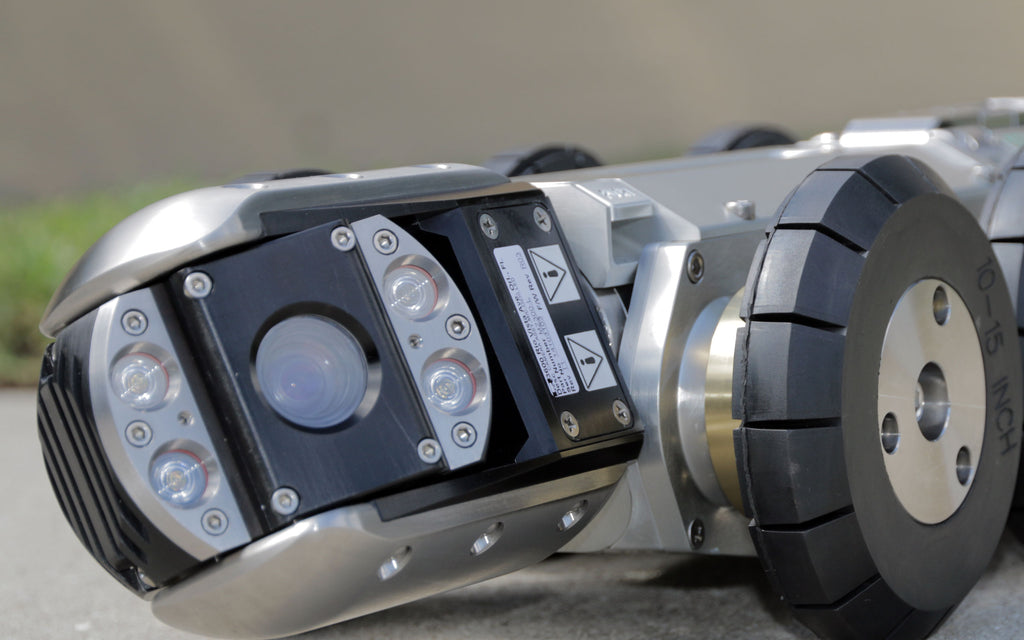

CUES sewer inspection camera head on a wheeled crawler, close-up

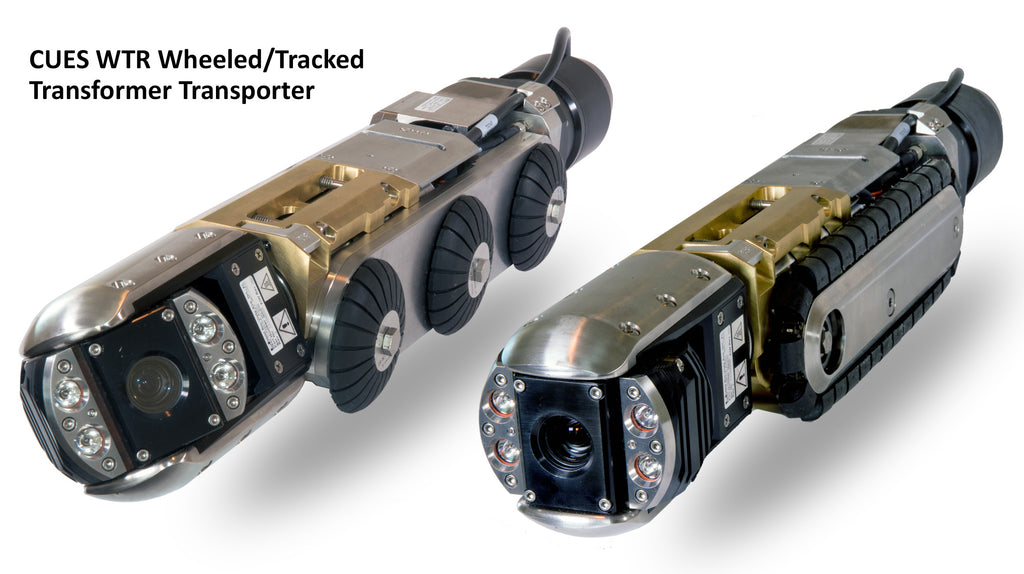

CUES WTR wheeled and tracked transporters, each carrying an inspection camera
Sourcewell awarded contract 080525-CUE for CUES equipment
CUES

OZIII-S Pan, Tilt & Zoom Camera

description specs

Overview

OZIII-S, a CUES pan tilt & optical view camera with sonde: total 120:1 zoom (10X optical, 12X digital) and 360 x 285 degree pan and rotate.

Key Features

  • Field-replaceable cool white LED lighting
  • Auto-focus
  • Gamepad control of focus, iris and shutter
  • Pan, rotate, zoom and focus homing
  • Optical-grade sapphire camera window
  • Internal diagnostic system
  • 512 Hz sonde and inclinometer
  • CPR transporter connection: direct, no exterior wires or cables

Options & Configurations

  • Optional external lightheads

Specifications

  • Zoom: 10X optical, 12X digital; total 120:1
  • Viewing range: 360 x 285 degree pan and rotate
  • Sonde frequency: 512 Hz

Features

  • Lighting: Field-replaceable cool white LED
  • Gamepad control: Focus, iris, and shutter
  • Homing: Pan, rotate, zoom, and focus
  • Camera window: Optical-grade sapphire
  • Diagnostics: Internal
  • Focus mode: Auto
  • Inclinometer: For inclination surveys
  • CPR transporter connection: Direct, no exterior wires or cables

Options

  • Lightheads: Optional external
