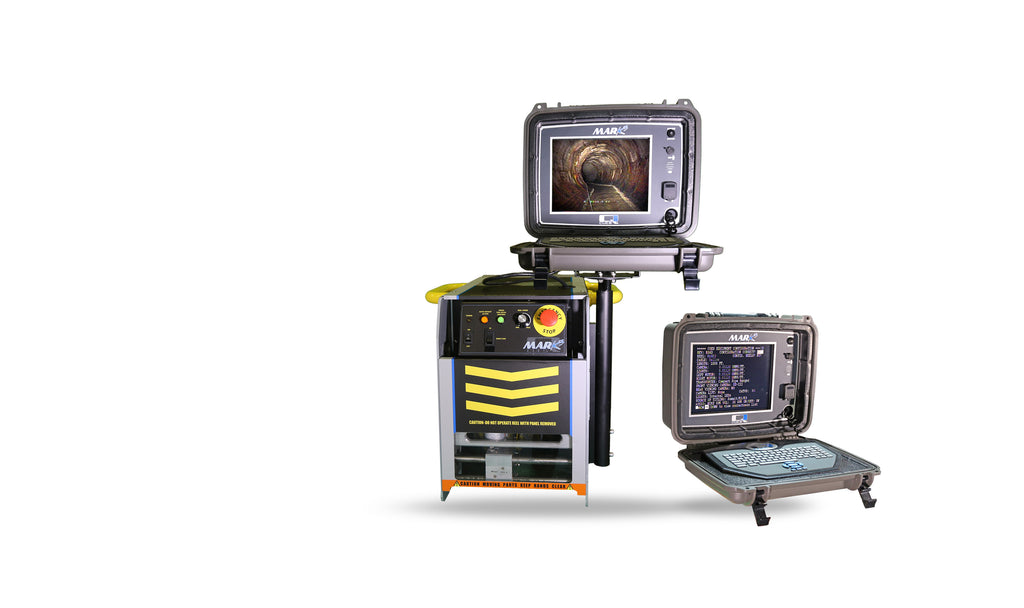

CUES MARK 3 portable pipe inspection reel system
CUES MARK 3 portable pipe inspection reel system

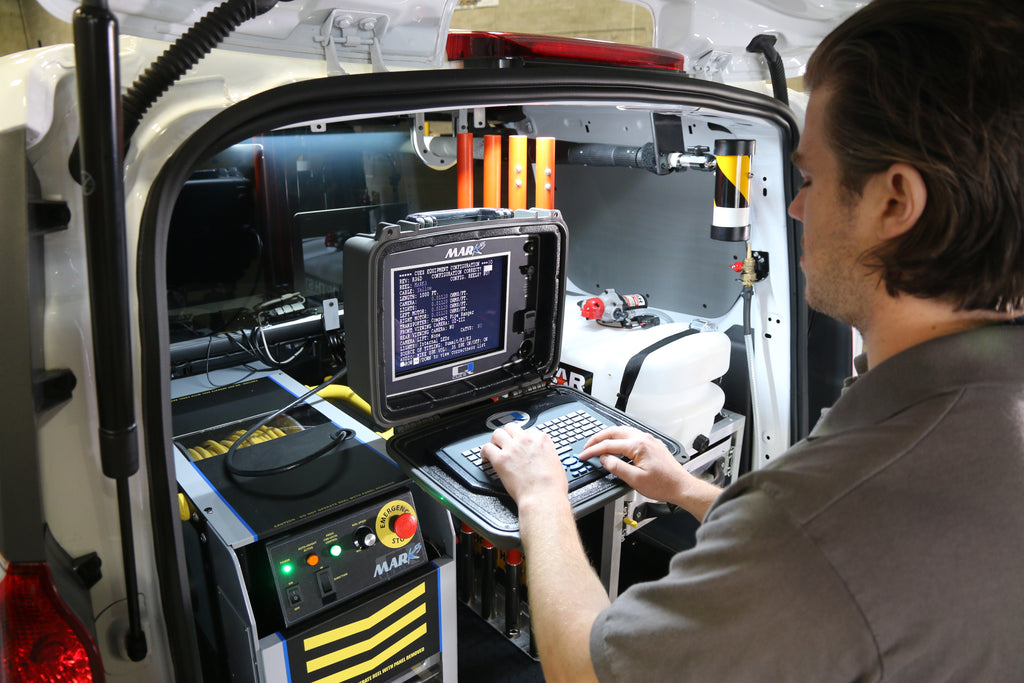

CUES MARK 3 reel in service vehicle

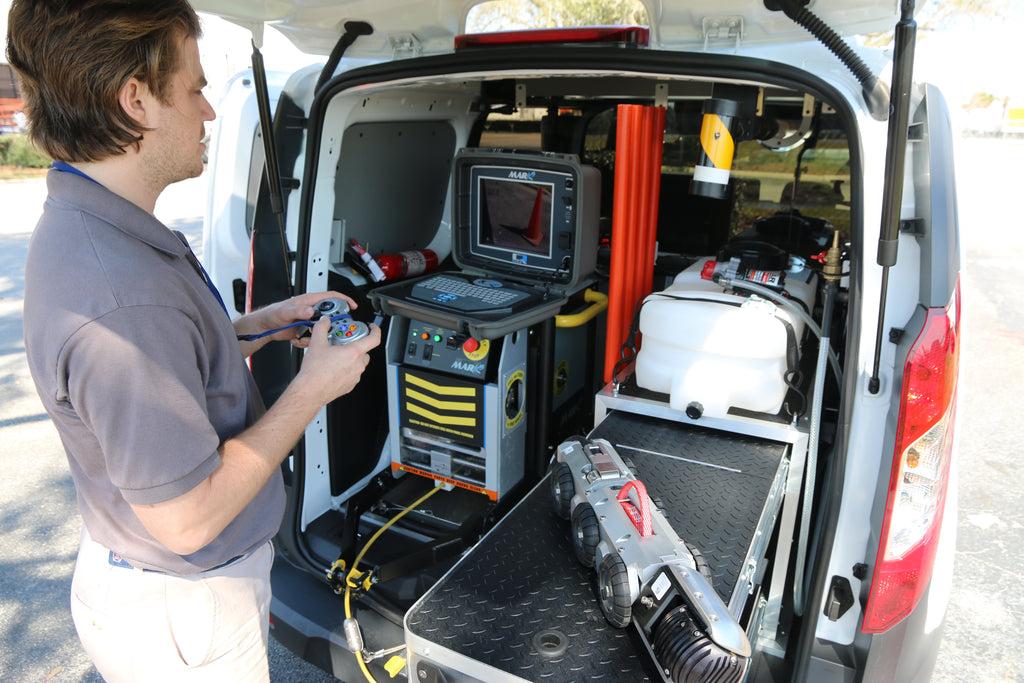

CUES MARK 3 display case

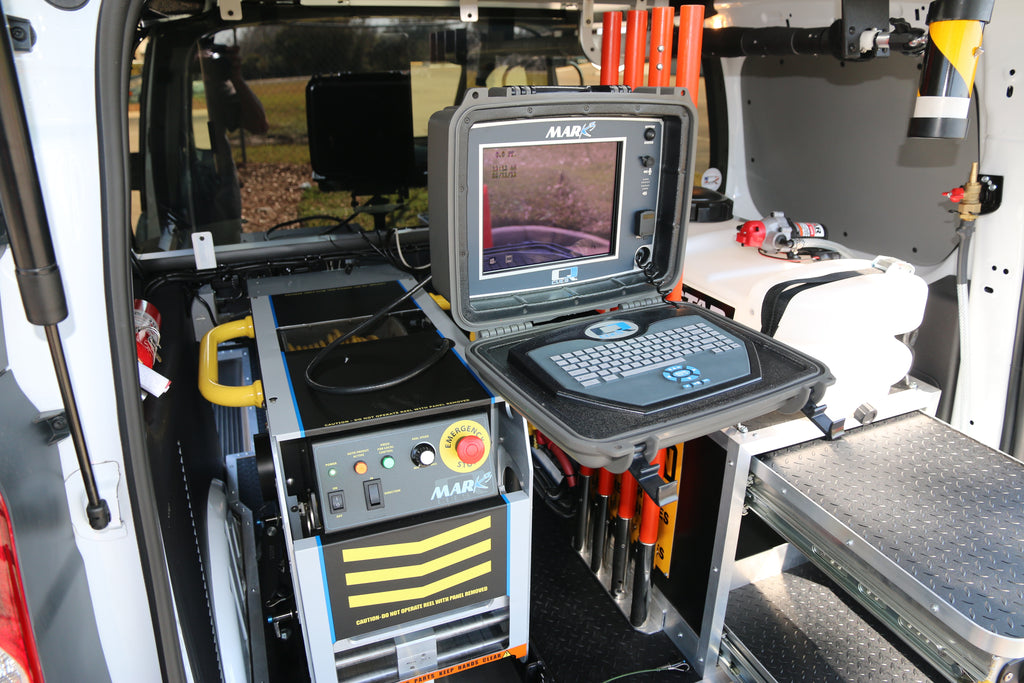

CUES MARK 3 portable reel detail
Sourcewell awarded contract 080525-CUE for CUES equipment
CUES

MARK 3 Portable Inspection System

request price / demo download specs share equipment
description specs

Overview

CUES MARK3 is a portable CCTV inspection system for 6" to 72" mainlines. Applications include easement and off-road inspection. It operates with 1,000 ft. of multi-conductor cable.

Key Features

  • The video reel pays out and retrieves cable automatically. Controls are on the front reel panel or a CUES gamepad.
  • Construction uses stainless steel and aerospace-grade aluminum.

Options & Configurations

  • It can mount in smaller vehicles such as an ATV, van or trailer.
  • With an optional extension cord, the removable weatherproof display case and keypad can be mounted up to 15 ft. away.

System

  • Model: MARK3
  • Vehicle mounting: Smaller vehicles such as an ATV, van or trailer
  • Inspection work: Easement, off-road and mainline inspection
  • Compatibility: CUES GraniteNet software and DUC camera
  • Cable operation: 1,000 ft. of multi-conductor cable
  • Materials: Stainless steel and aerospace-grade aluminum
  • Display assembly: LCD case with built-in keypad; reinforced monitor mount adjustable in height and rotation
  • Remote display: Weatherproof removable case and keypad; up to 15 ft. separation with optional extension cord
  • Slip ring: Sealed, 12-conductor
  • Video reel: Automatic cable payout and retrieval
  • Controls: Front-mounted reel panel or CUES gamepad controller
  • Other controls: Hand brake, hand crank and freewheel activation
  • Dimensions (W x H): 14" x 20"
  • Mainline inspection pipe diameter: 6" to 72"
  • Connection ports: (1) AV; (3) USB (2 on the PCU, 1 on the display case); (1) VGA; Ethernet; serial cable; SD card; standard microphone
