LASER Profiler

Profiling

• Model: LASER Profiler

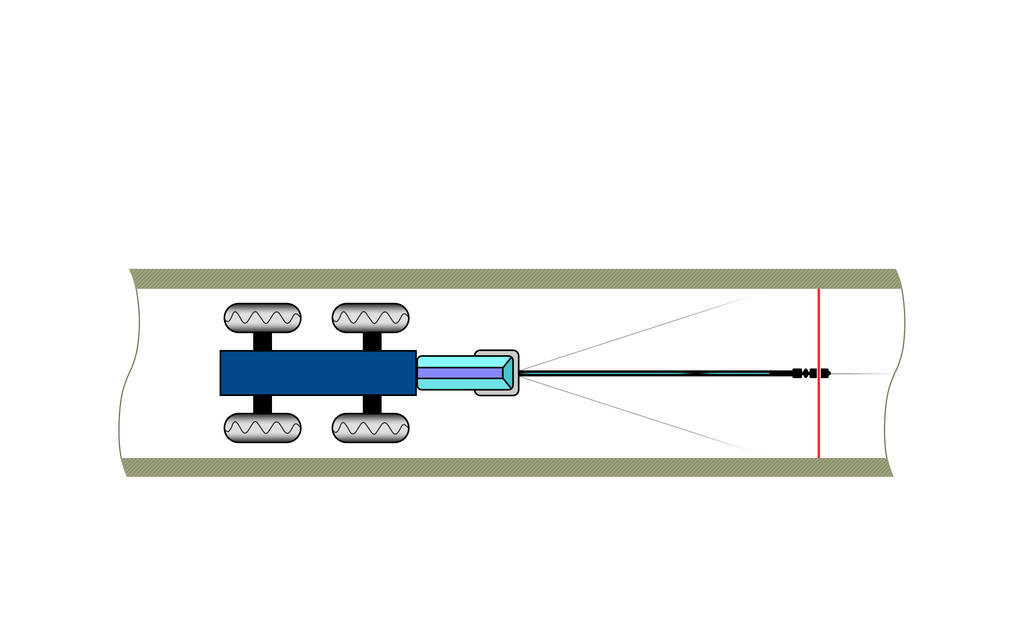

• Laser projection: Ring of light on the internal pipe surface
• Camera view: The laser image stays within view as the camera travels through the pipe
• Profile generation: Laser Profiler software analyzes the light ring to build a digital pipe profile
• Video input: Live video or prerecorded video on tape, CD or DVD
• Pipe diameter: 6" through 72"
• Inspection use: Internal pipe profiles, before or after rehabilitation
• Power and mechanics: Internal rechargeable battery; no electrical connections required and no moving parts
• Software location: TV inspection vehicle or remote computer
• Remote frame capture: Single video frames from videotape, stored files, CD or DVD on a remote computer
• Attachment: Existing CUES CCTV camera or transporter
• Image measurement: Single-frame capture and display on the data monitor for measurement and analysis, in industry standard formats such as JPEG, BMP or TIFF
• Text annotation: Text can be placed at any location in the captured image
• Pipe-run graph: Cross-sectional amplitude from entry to exit access across the entire pipe run
• Construction: Carbon fiber and aluminum

Measurement and Software

• Manual captured-frame measurements: Pipe size, lateral size, water level, holes and offset joints; from live or prerecorded video
• Laser geometry: Radial projection perpendicular to the CCTV camera's line of sight forms a red line on the inner pipe wall
• LASER Profiler software visualization: Interactive 3D pipe model generated from the digital profile
• LASER Profiler software ovality function: Calculates q
• LASER Profiler software capacity function: Calculates each profile's cross-sectional area and normalizes it against the expected internal pipe area
• LASER Profiler software Delta calculation: Maximum and minimum pipe radius for each profile
• LASER Profiler software interface: Connects with CUES software
• LASER Profiler software automatic ovality/capacity analysis: Up to 30 analyses per second

Base System

• For 6" to 15" pipe: Camera mounting assembly, single laser head, battery charger, 3-D measuring software, rod extension for 10", 12" and 15", barrel distortion target, calibrator target, AC adapter and hardware case
• For 8" to 42" pipe: Laser wand, triple laser head, battery charger, 3-D measurement software, barrel distortion target, calibrator target, AC adapter, camera skid assembly for 8" to 30", skid plate assemblies for 36" and 42", skid adapter plate and hardware case
