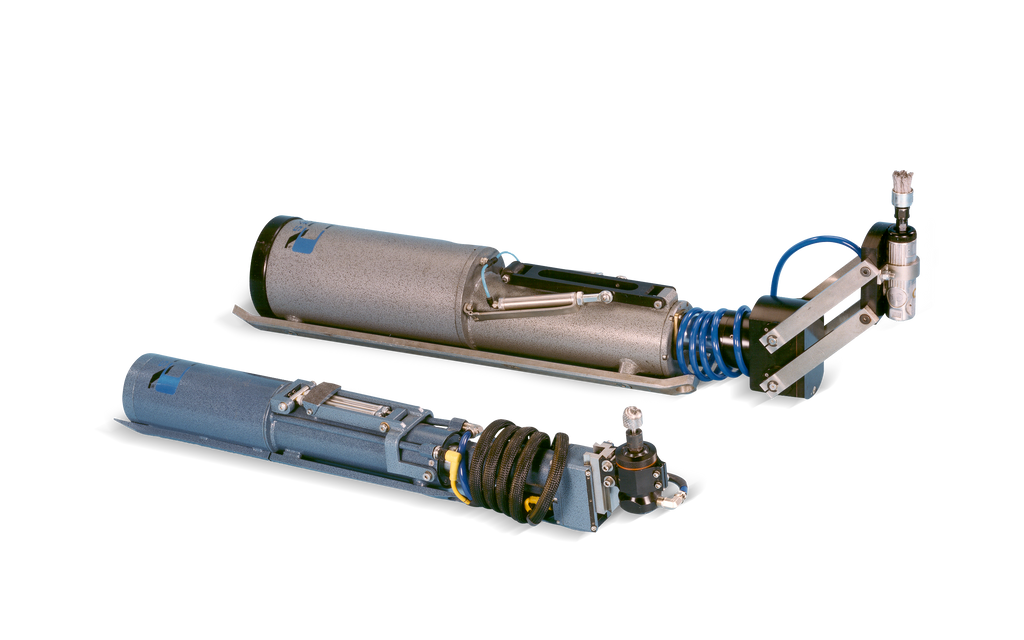

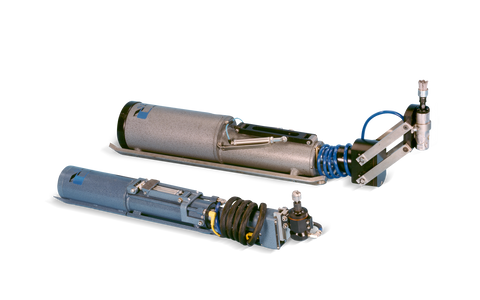

Kangaroo & Giant Kangaroo Cutters

Both Small and Giant Kangaroo Cutters

• Construction: Waterproof
• Liner types: CIPP or Fold and Form
• Can be installed on: Most CCTV manufacturers' systems
• Can be operated with: Dual Kangaroo Cutter Controller
• Optimal cable length: 1,000 to 1,500 ft.
• Power: 110 or 220 VAC
• Conductors required: 8; cutter 6, reel-mounted remote air valve 2
• Recommended minimum air requirements: 38 CFM at 125 psi
• Controls, Electrical: 360-degree rotate, up/down, in/out, on/off and polarity
• Controls, Pneumatic: Cutter motor and cutter locking brake
• Drive motors: Three, 24V DC electric, in a waterproof housing
• Cutter equipment: Two router bits and a pipe lock assembly

Small Kangaroo

• Small Kangaroo relined pipe: 6" to 12" diameter
• Small Kangaroo skids: Low-profile metal, on the cutter housing, for 6" pipe; extenders for 8" pipe and up
• Small Kangaroo air motor: .9 hp

Giant Kangaroo

• Giant Kangaroo relined pipe: 12" to 30" diameter
• Giant Kangaroo cutting: Removes protruding lateral services

Dual Kangaroo Cutter Controller

• Cutters operated: Small and Giant Kangaroo
• Instrumentation: Switches, potentiometers, controls and meters for both cutters
• Head movement directions: Six (in/out, right/left rotation, up/down)
• Speed adjustment: Rotary potentiometer for each control motor
• Amp meter: Current draw of each motor
• Air Motor/Clamp ON/OFF switch: Remote air solenoid air flow; pipe lock system; cutter air motor

Optional Equipment

• Desktop control unit: For both Small and Giant Kangaroo cutters
• Cutter attachments: For protruding laterals
• 12" extenders: For the Small Kangaroo cutter
• Air hose reel: Speed control and retrieval; 500 ft. of 1/2" or 3/4" ID hose
• Automatic level wind: For the air hose reel
