Chemical Sealing Systems

System Configuration

• Model: Custom Grout

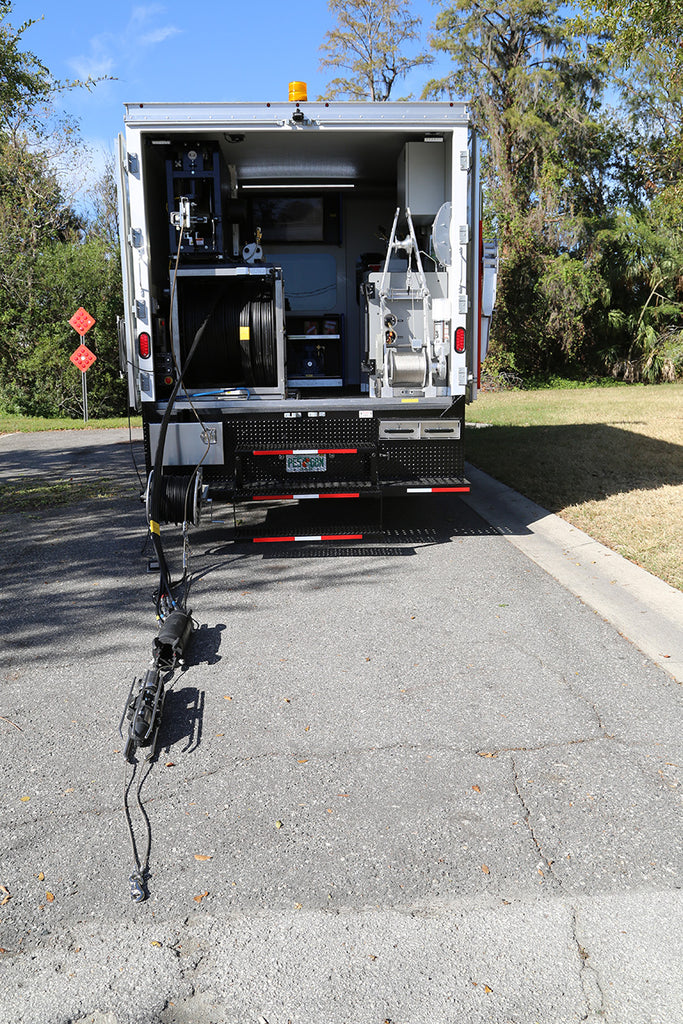

• Truck size: 16' to 24' custom design builds for contractors or municipalities
• Grout types: Systems can be configured for Urethane, Acrylimide and Acrylate grouts
• CCTV option (truck-mounted systems): Can be equipped with CCTV equipment for television inspection
• Other configurations: Dry freight box systems for export; trailer-mounted systems
• Air compressor: Custom Grout vehicle configuration: 2.0 hp, 30 gallon tank
• Office: Custom Grout vehicle configuration: climate-controlled office

Tanks and Controls

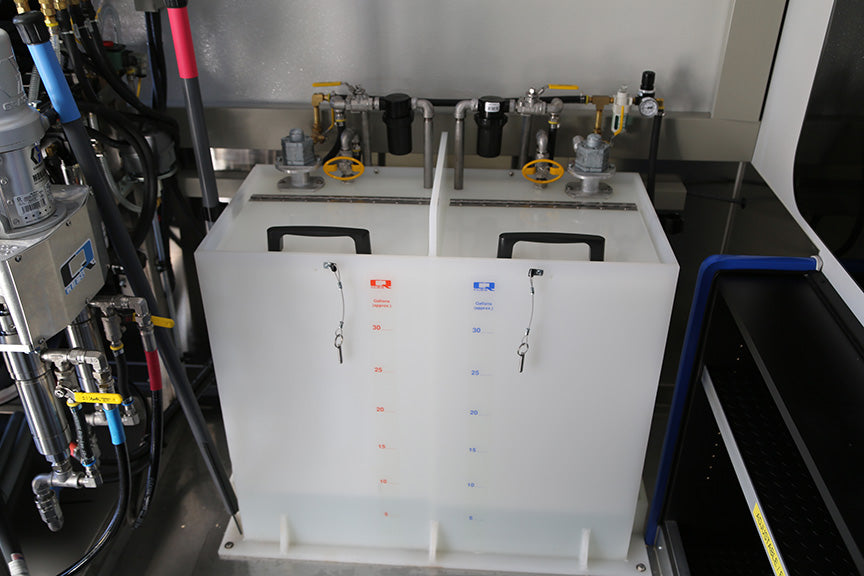

• Chemical tanks: Labeled, chemical-resistant polypropylene tanks; can order 30 or 60 gallon capacity with heaters

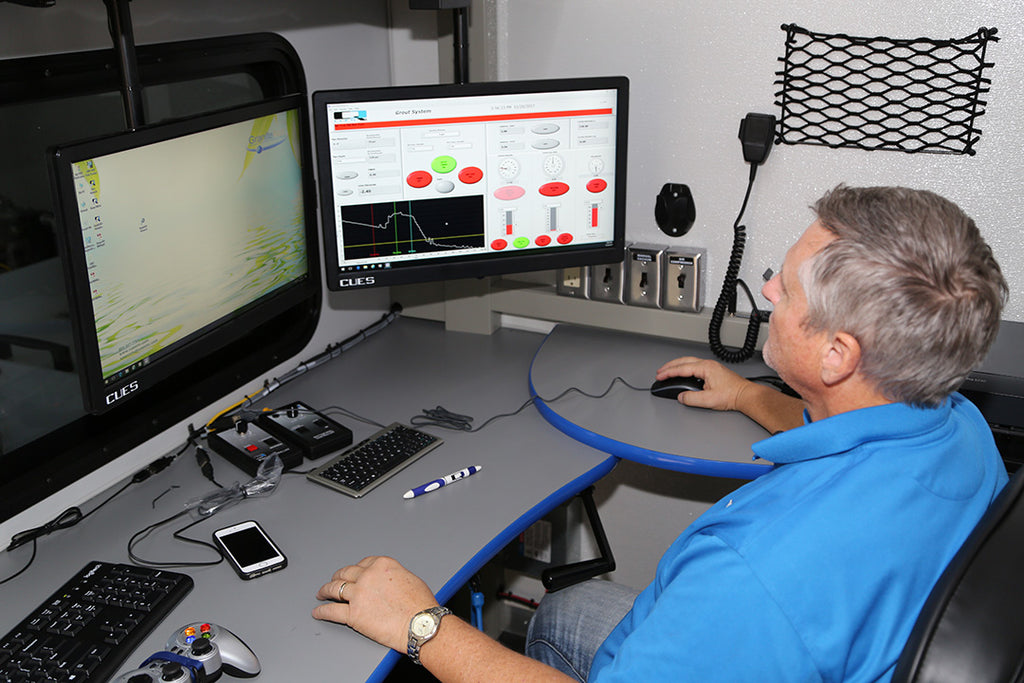

• Control panel: Easy Grout software with a graphic user interface

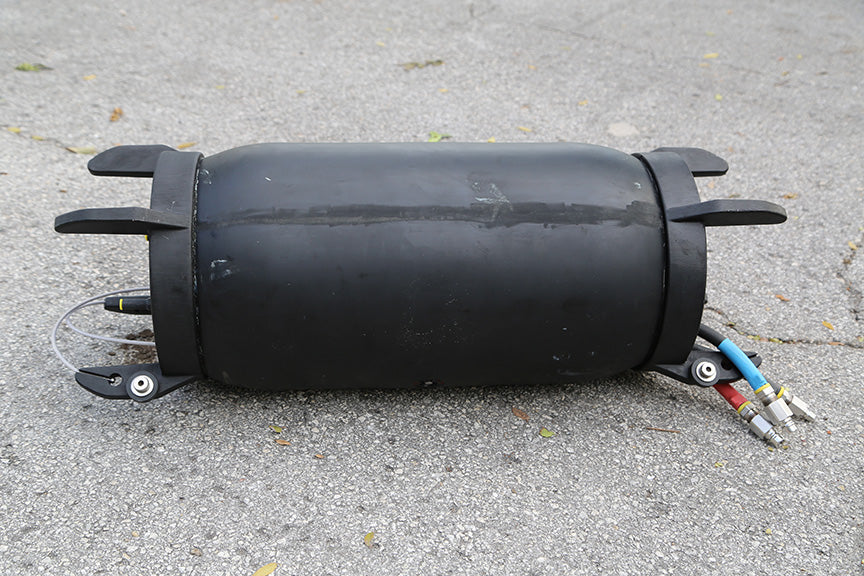

• Controls: Computer program and K2; wireless camera/packer control and a wireless handheld controller for the lateral packer
• Grout tank motor & heater: Variable-speed pneumatic motor; small stainless steel propellers near the tank bottom keep air out of the grout hoses

Applications

• Joint sealing: Mainline and lateral joints
• Waterproofing: Low-pressure joint testing and sealing: mainline and lateral joints, manholes, junction boxes and large-diameter pipes
• Pipe rehabilitation: Pipe stabilization and support

Custom Grout Components

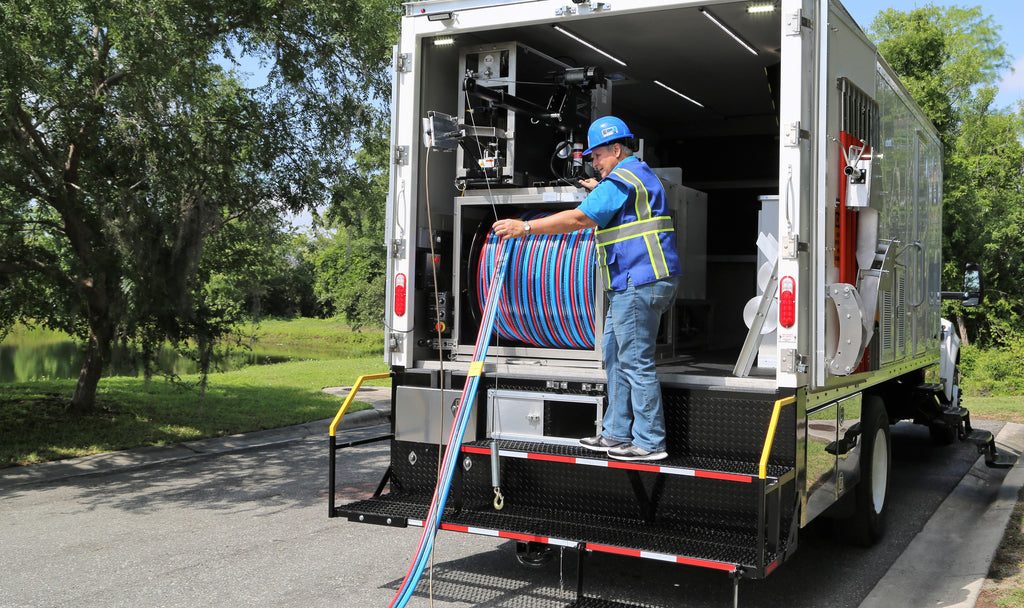

• Penta hose: Custom Grout configuration: length choices of 500, 650 or 800 feet for manhole, mainline and lateral grouting
• Water tank: Custom Grout configuration: non-metallic, 75 gal to 125 gal capacity; can be heated
• Tubing/floor/reel frame: Custom Grout configuration: stainless steel construction on all grout-related equipment and components
• Pump motor: Custom Grout configuration: 3 hp, 3 phase, variable speed; chemical-resistant stainless steel motor
• Flush lines: Custom Grout configuration: automatic; a shut off/bypass valve diverts chemicals and water back to the tanks
• Chemical filters: Custom Grout configuration: black chemical filters
• Flooring: Custom Grout configuration: industrial-rated vinyl throughout
• Walls: Custom Grout configuration: white finish resistant to scratches, dents and chemicals
• Pumps: Custom Grout configuration: custom build, chemical-resistant, explosion-proof pumps with nitrogen-charged pulsation dampers and pressure regulators
